Product Details:
|
| Material: | SS304 SS316L | Shape: | Equal/Reducer |
|---|---|---|---|
| Technics: | Forged | Standard: | DIN,ANSI,ASTM,GB |
| Size: | Customized Size | Application: | Connect Pipes |
| High Light: | ASME B16.9 Stainless Steel Tee,SCH160 Forged Stainless Steel Tee,Shipbuilding Stainless Steel Tee |
||

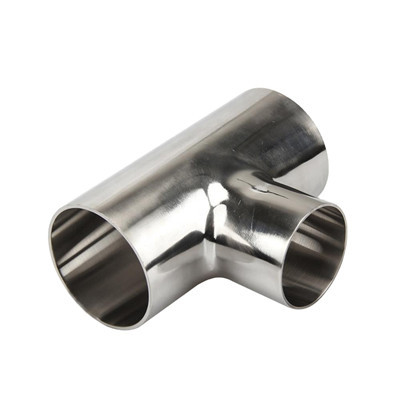

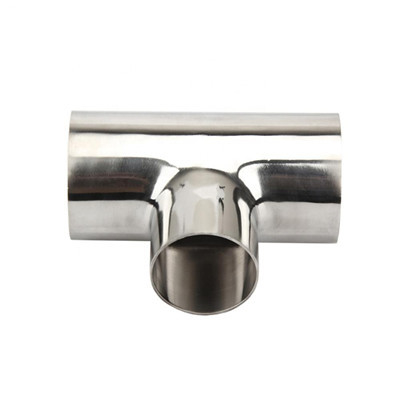

Stainless steel tee is a kind of pipe fitting. Branch for main pipe. It is divided into equal diameter tee and reducing tee. The three ports of the equal tee have the same size. The main pipe of reducing tee is the same size, but the branch pipe is smaller than the main pipe.
Size Range:From ½” up to 106”
Standard:ANSI, ISO, JIS, DIN, GB
Thickness:SCH STD, XS, XXS, SCH 10 ~ SCH 160
Stainless Steel:ASTM A403 WP304/304L, WP316/316L
ASME B16.9 1-48 Inch Fittings 304 316L Stainless steel tee technical data sheet as below:
| Nominal Diameter | OuteideDiamster | Center to End | |||||
| D1 | D2 | ||||||
| DN | NPS | Series A | Series B | Series A | Series B | C | M |
| 15x15x15 | 1/2x1/2x1/2 | 21.3 | 18 | 21.3 | 18 | 25 | 25 |
| 15x15x10 | 1/2x1/2x3/8 | 21.3 | 18 | 17.3 | 14 | 25 | 25 |
| 15x15x8 | 1/2x1/2x1/4 | 21.3 | 18 | 13.7 | 10 | 25 | 25 |
| 20x20x20 | 3/4x3/4x3/4 | 26.9 | 25 | 26.9 | 25 | 29 | 29 |
| 20x20x15 | 3/4x3/4x1/2 | 26.9 | 25 | 21.3 | 18 | 29 | 29 |
| 20x20x10 | 3/4x3/4x3/8 | 26.9 | 25 | 17.3 | 14 | 29 | 23 |
| 25x25x25 | 1x1x1 | 33.7 | 32 | 33.7 | 32 | 38 | 38 |
| 25x25x20 | 1x1x3/4 | 33.7 | 32 | 26.9 | 25 | 38 | 38 |
| 25x25x15 | 1x1x1/2 | 33.7 | 32 | 21.3 | 18 | 38 | 38 |
| 32x22x32 | 1.1/4x1.1/4x1.1/4 | 42.4 | 38 | 42.4 | 38 | 48 | 48 |
| 32x32x25 | 11/4x1.1/4x1 | 42.4 | 38 | 33.7 | 32 | 48 | 48 |
| 32x32x20 | 1.1/4x1.1/4x3/4 | 42.4 | 38 | 25.9 | 25 | 48 | 48 |
| 32x32x15 | 1.1/4x1.1/4x1/2 | 42.4 | 38 | 21.3 | 18 | 48 | 48 |
Stainless steel tee is a kind of pipe fitting used in pipe branch. The commonly used processes are hydraulic bulging and hot pressing.
Hydraulic bulging is a kind of forming technology that makes the branch pipe bulging through the axial compensation of metal materials. Hot pressing is to flatten the pipe blank larger than the tee diameter to the size of the tee diameter. Open a hole at the stretch part of the branch pipe. The tube blank is heated and put into the forming die. In the process of radial compression, the metal flows to the branch pipe, and the branch pipe is formed under the tension of the die.
Stainless steel tee is widely used in papermaking, shipbuilding, petroleum, chemical industry, electric power, biotechnology, natural gas, sewage, construction, medicine, food (dairy products) and other industries.
