Product Details:
|
| Product Name:: | HDPE 45 ° Electrofusion Elbow | Nominal Pressure：: | 0.6-2.0（Mpa） |
|---|---|---|---|
| Wall Thickness：: | 1-50（mm） | Color：: | Black |
| Head Code: | Round | Connection: | Female,Welding |
| High Light: | Electrofusion Fittings For Water,Electrofusion HDPE,PE Electrofusion Fittings |
||

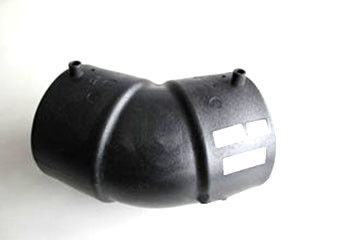

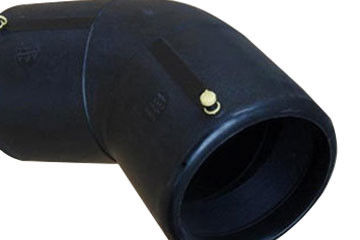

HDPE 45 °electrofusion elbow is made of imported PE100 or PE80 as raw material.The specification, size and performance of elbow shall meet the requirements of GB / t13663-2000 and GB / t13663.2-2005.The hygienic performance complies with the GB / t17219 standard and the relevant regulations of the Ministry of health of the people's Republic of China on safety evaluation.
HDPE electrofusion elbow has the advantages of good flexibility, strong corrosion resistance, light weight and excellent impact resistance.The elbow can be connected by hot-melt socket, hot-melt butt joint and electric fusion, so that the pipe and pipe fittings are integrated, the system is safe and reliable, and the construction cost is low.
The service life of HDPE electric melting elbow is long. Under normal conditions, the minimum service life is 50 years.The elbow is nontoxic, hygienic, free of heavy metal additives, scaling and bacteria, which solves the problem of secondary pollution of drinking water.
It conforms to GB / t17219 safety evaluation standard and relevant health and safety evaluation regulations of the Ministry of health of the people's Republic of China.It can resist the corrosion of various chemical media without electrochemical corrosion.
The inner wall is smooth, the coefficient of friction is very low, the passing ability of medium is improved correspondingly, and it has excellent wear resistance.
Good flexibility, high impact strength, strong shock resistance and distortion resistance.Light weight, convenient transportation and installation.The unique electric fusion connection, hot-melt butt joint and hot-melt socket connection technology make the interface strength high with the pipe body and ensure the safety and reliability of the interface.
The welding process is simple, the construction is convenient and the comprehensive cost of the project is low.HDPE electric melting elbow DN20 ~ dn90 is blue, above dn110 is blue or black with blue line, other colors need to be customized, and the color of accessories corresponds to the color of pipes.
Water supply for urban buildings and community pipe network.
Slurry, corrosive gas, liquid and solid powder process delivery pipe and discharge pipe.
Water supply and gas long-distance pipeline in oil and natural gas industry.
45 Degree HDPE Elbow Electrofusion Fittings For Water technical data sheet as below:
| Specification and dimension of electric-melt 45° elbow | |||
| Product specification D/mm | D/mm | L/mm | A/mm |
| 45°L 50 | 50 | 160 | 60 |
| 45°L 63 | 63 | 165 | 63 |
| 45°L 90 | 90 | 181 | 72 |
| 45°L110 | 110 | 220 | 70 |
| 45°L160 | 160 | 255 | 70 |
| 45°L200 | 200 | 300 | 80 |
| 45°L250 | 250 | 350 | 90 |
| 45°L315 | 315 | 416 | 100 |
| 45°L400 | 400 | 445 | 150 |
a. Plastic bubble bag package b.Wove bag package c.Pallet d. Customized.
Our Steel flat factory have high ability for production, the delivery time is 45days for small quantity, or if you are hurry for that, we can arrange and meet your shipping date.
