Product Details:
|
| Material: | SS304 SS316L | Connection: | Welding |
|---|---|---|---|
| Standard: | DIN,ANSI,ASTM,GB | Size: | 1/8"~2",1/2' ~ 6' |
| Application: | Connect Pipes | Packing: | Wooden Case |
| Highlight: | 304 Stainless Steel Pipe Fittings Elbow,ASME Pipe Fittings Elbow,2 Inch 45 Degree Elbow |
||

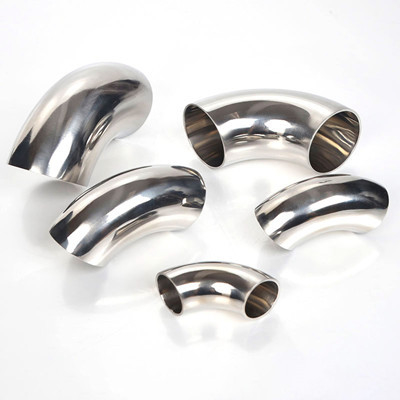

Stainless steel elbow is a special raw material, which does not need to add pipe blank raw materials, so it is easy to control during processing.
Stainless steel elbow can save the cost of pipe making equipment and mold, and elbow with arbitrary large diameter and relatively thin wall thickness can be obtained.
Stainless steel elbow is made of flat plate or developable curved surface, so it has the advantages of simple blanking, easy accuracy assurance, convenient assembly and welding, easy control of raw materials during processing and simple operation.
Thickness: 3-20mm
Size: 1/2' ~ 8', DN15-200
Standard: DIN,ANSI,JIS etc
Material: 304 306 Stainless Steel
Nominal diameter: DN15-DN1200
ASME B16.9 2 inch ss 304 ss316 45 90 degree Stainless steel elbow technical data sheet as below:
| DN | Outside diameter | 90 degree elbow | ||
| A series | B series | Long radius | Short radius | |
| 15 | 213 | 18 | 38 | - |
| 20 | 26.9 | 25 | 38 | - |
| 25 | 33.7 | 32 | 38 | 25 |
| 32 | 42.4 | 38 | 48 | 32 |
| 40 | 483 | 45 | 57 | 38 |
| 50 | 603 | 57 | 76 | 51 |
| 65 | 76.1(73) | 76 | 95 | 64 |
| 80 | 88.9 | 89 | 114 | 76 |
| 100 | 1143 | 108 | 152 | 2 |
| 125 | 139.7 | 133 | 190 | 127 |
| 150 | 1683 | 159 | 229 | 152 |
| 200 | 219.1 | 219 | 305 | 203 |
| 250 | 273 | 273 | 381 | 254 |
| 300 | 323.9 | 325 | 457 | 305 |
| 350 | 355.6 | 377 | 533 | 356 |
1. Inner wall finish: the finish of the inner wall of the stainless steel elbow avoids the condensation of impurities and is the most ideal material in construction.
2. Excellent wear resistance: the stainless steel elbow can operate in the fluid environment of up to 20m / s and resist erosion.
3. Unique passivation effect: pH value in water, air, dissolved oxygen, impurities and water treatment agent can be the causes of pipe corrosion. Stainless steel pipe fittings have a thin and dense oxide film, which can react with oxidant and prevent further oxidation reaction.
Stainless steel elbow is a pipe fitting used at the corner of pipeline. It is widely used in practical use. It is often used in construction, machinery, chemical industry, electric power, shipbuilding and other industries.
