Product Details:
|
| Material: | SS304 SS316L | Shape: | Equal/Reducer |
|---|---|---|---|
| Connection: | Welding | Standard: | DIN,ANSI,ASTM,GB |
| Size: | Customized Size | Application: | Connect Pipes |
| High Light: | ISO9001 Stainless Steel Pipe Reducer,Equal Pipe Reducer,Welding Stainless Steel Reducer Fittings |
||

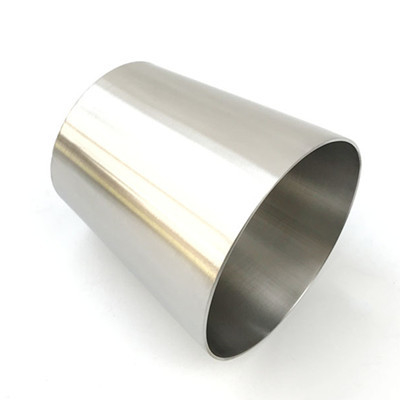

Stainless steel reducer is a tool for connecting pipes of different sizes. According to the center line, stainless steel reducer can be divided into eccentric stainless steel reducer and concentric stainless steel reducer.
The projection of the two ends of the stainless steel reducer is a concentric circle, which is a concentric stainless steel reducer. The reason why the eccentric stainless steel reducer is called eccentric is that the two centers do not coincide, but are in a straight line. These two different stainless steel reducers are also suitable for different ranges.
Material: SUS304,SUS316L
Standard: DIN,ISO,3A,SMS,BS
Size Range: DN25~DN100 1"~4"
Connection: Welding,Male,Ferrule
Class 150 SS304 316 ISO9001 Standard Stainless steel reducer technical data sheet as below:
| Nominal Diameter | Oustid Diameter | End to End | |
| mm | in | D1xD2 | H |
| 20x15 | 3/4x1/2 | 25x18 26.7x21.3 | 38 |
| 23x20 | 1x3/4 | 32x25 33.4x26.7 | 51 |
| 25x15 | 1x1/2 | 32x18 33.4x21.3 | 51 |
| 32x25 | 1.1/4x1 | 38x32 42 2x33.4 | 51 |
| 32x20 | 1.1/4x3/4 | 38x25 42.2x26.7 | 51 |
| 40x32 | 1.1/2x1.1/4 | 45x38 48.3x42.2 | 64 |
| 40x25 | 1.1/2x1 | 45x32 48.3x33.4 | 64 |
| 50x40 | 2x1.1/2 | 57x45 60.3x48.3 | 76 |
| 50x25 | 2x1 | 57x32 60.3x33.4 | 76 |
| 65x50 | 2.1/2x2 | 76x57 73.0x60.3 | 89 |
| 65x32 | 2.1/2x1.1/4 | 76x38 73.0x42.2 | 89 |
| 80x65 | 3x2.1/2 | 89x76 88.9x73.0 | 89 |
The stainless steel concentric reducer is used on the vertical pipe and the eccentric stainless steel reducer is used on the horizontal pipe. When using, it is necessary to indicate the bottom level or top level.
When the flow of liquid in the pipeline changes, the flow requirement is not too large when using stainless steel reducer.
In the installation of the pump inlet reducer, in order to prevent the gas from accumulating at the reducer and avoid cavitation caused by errors in the installation process, the horizontal inlet pipe of the pump adopts eccentric stainless steel reducer to prevent cavitation.
Stainless steel reducer is widely used in many industries. It is used in natural gas, hydropower, construction, oil, boiler, etc. it is welded according to different purposes and cast under certain pressure.
