Product Details:
|
| Material: | Stainless Steel | Connection: | Welding |
|---|---|---|---|
| Standard: | DIN,ANSI,ASTM,GB | Size: | Seamless 1/2" To 24" |
| Application: | Oil,Petroleum,Connect Pipes | Packing: | Wooden Case |
| High Light: | 304 Stainless Steel Tube Reducer,Stainless Steel Pipe Fittings Reducer,ASME Welding Steel Pipe Reducer |
||

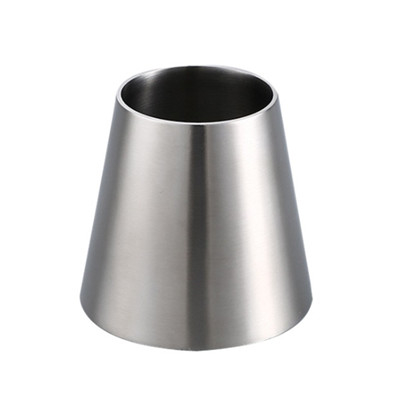

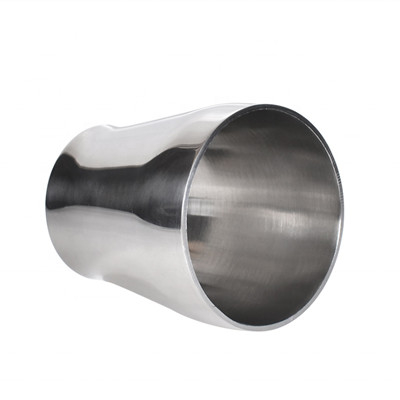

Stainless steel reducer is made of stainless steel reducer and alloy steel reducer, and the steel used for stainless steel reducer is No. 20 steel or q234, Q345 and other steel.
Size: 1/8" to 4"
Application: Connect pipes
Process Method: Forged / Casting
Standard: ASTM A403 ASME / ANSI B16.5 etc
Material Grade: TP304 , TP304L , TP316 , TP316L
ASME B16.9 SS304 316 321 Pipe Fittings Stainless steel reducer technical data sheet as below:
| Nominal Diameter | Oustid Diameter | End to End | |
| mm | in | D1xD2 | H |
| 20x15 | 3/4x1/2 | 25x18 26.7x21.3 | 38 |
| 23x20 | 1x3/4 | 32x25 33.4x26.7 | 51 |
| 25x15 | 1x1/2 | 32x18 33.4x21.3 | 51 |
| 32x25 | 1.1/4x1 | 38x32 42 2x33.4 | 51 |
| 32x20 | 1.1/4x3/4 | 38x25 42.2x26.7 | 51 |
| 40x32 | 1.1/2x1.1/4 | 45x38 48.3x42.2 | 64 |
| 40x25 | 1.1/2x1 | 45x32 48.3x33.4 | 64 |
| 50x40 | 2x1.1/2 | 57x45 60.3x48.3 | 76 |
| 50x25 | 2x1 | 57x32 60.3x33.4 | 76 |
| 65x50 | 2.1/2x2 | 76x57 73.0x60.3 | 89 |
In the stainless steel reducer, the eccentric stainless steel reducer is mainly a connecting pipe fitting used at the reducing part of the pipeline.
Eccentric stainless steel reducer is generally formed by shrinkage or pressed by shrinkage and expansion process. Stamping method can also be used for some special specifications of stainless steel reducer.
Eccentric stainless steel reducer can not only produce stainless steel pipes with different diameters with steel pipes as raw materials, but also press some special stainless steel pipes with different diameters by steel plate forming method.
Stainless steel reducer is widely used in many industries. It is widely used in natural gas, electric power, petroleum, chemical industry, industry, pharmacy, pressure pipeline and so on.
