Product Details:
|
| Material: | SS304 SS316L | Connection: | Welding |
|---|---|---|---|
| Standard: | DIN,ANSI,ASTM,GB | Size: | 1/8"~2",1/2' ~ 6' |
| Application: | Construction,Connect Pipes | Packing: | Wooden Case |
| High Light: | SS316L Stainless Steel Pipe Fittings,Concentric Stainless Steel Reducer,Welding Stainless Steel Concentric Reducer |
||

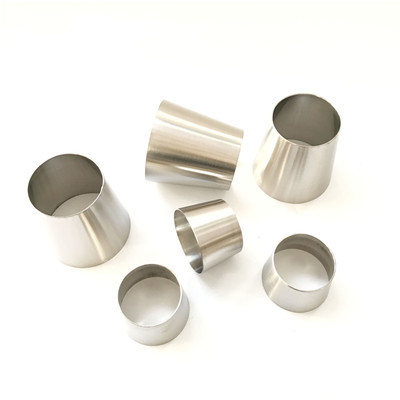

Stainless steel reducer uses the reduction forming process to put the tube blank with the same diameter as the big end of the big and small end into the forming die. Through pressing along the axial direction of the tube blank, the metal moves along the die cavity and shrinks. According to the size of reducer, it can be divided into one-time pressing forming or multiple pressing forming.
Material:SS304, SS316L
Size:DN10-DN250,1/2"-10"
Standard:3A / DIN / SMS / ISO
Connetion:Welded, Clamped, Union
16.00" X 10.00" CR 40S 316/L Concentric Stainless steel reducer technical data sheet as below:
| NPS | Outside Diameter at Bevel | End-to- End, H | |
| Large End | Small End | ||
| 3/4X1/2 | 26.7 | 21.3 | 38 |
| 3/4X3/8 | 26.7 | 17.3 | 38 |
| 1x3/4 | 33.4 | 26.7 | 51 |
| lxl/2 | 33.4 | 21.3 | |
| 1.1/4x1 | 42.2 | 33.4 | 51 |
| 1.1/4X3/4 | 42.2 | 26.7 | |
| 1.1/4X1/2 | 42.2 | 21.3 | |
| 1.1/2x1.1/4 | 48.3 | 42.2 | 64 |
| 1.1/2x1 | 48.3 | 33.4 | |
| 1.1/2X3/4 | 48.3 | 26.7 | |
| 1.1/2x1/2 | 48.3 | 21.3 | |
| 2x1.1/2 | 60.3 | 48.3 | 76 |
| 2x1.1/4 | 60.3 | 42.2 | |
| 2x1 | 60.3 | 33.4 | |
| 2x3/4 | 60.3 | 26.7 | |
Stainless steel reducer is produced by pressing forming process. However, when the pressing range is not large, it basically needs heat treatment, that is, the so-called over firing. Some manufacturers do not carry out heat treatment when the reducing range is not large, but simply press it. This method is not desirable.
Stainless steel reducer is widely used in pipeline engineering fields such as heating, heating, water conveyance, petroleum, chemical industry, natural gas, heat, sewage treatment, water source, bridge, steel structure, marine water conveyance and piling.
