Product Details:
|
| Product Name: | Stainless Steel Tee | Material: | SS304 SS316L |
|---|---|---|---|
| Shape: | Equal/Reducer | Type: | Tee |
| Connection: | Welding | Standard: | DIN,ANSI,ASTM,JIS,GB |
| Size: | 1/8"~2",1/2' ~ 6' | Application: | Oil,Petroleum,Chemical |
| Packing: | Wooden Case,Bags | Usage: | Steel Pipe,Oil Gas Water |
| High Light: | 2" 316 Stainless Steel Pipe Fittings,1/8" 316 Stainless Steel Pipe Fittings,1/8" Stainless Steel T Pipe |
||

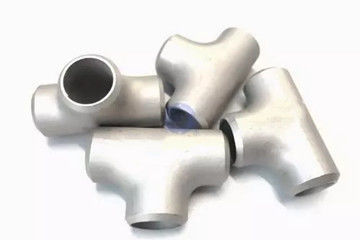

Stainless steel tee are made of different materials, producing different specifications and models according to different scales to ensure the production of tees suitable for different industries and posts. The appearance of stainless steel tee is smooth, with good aesthetic feeling and texture, which makes users have a good feeling in use, and will not produce the feeling of disgust. Stainless steel tee is widely used in the construction and maintenance of petrochemical, petroleum and natural gas, liquefied gas, chemical fertilizer, power plant, nuclear power, shipbuilding, papermaking, pharmaceutical, food hygiene, urban construction and other industries. In industry, the pressure of this kind of pipe fittings is higher, and the pressure can reach 600 kg. In life, the pressure of water pipes is lower, generally 16 kg.
Stainless steel 316 pipe fittings Stainless steel tee technical data sheet as below:
| DN | outside diameter | Center to end dimensions | ||||
| D1 | D2 | C | M | |||
| A | B | A | B | |||
| 20x20x15 | 26.9 | 25 | 21.3 | 18 | 29 | 29 |
| 25x25x20 | 33.7 | 32 | 26.9 | 25 | 38 | 38 |
| 25x25x15 | 33.7 | 32 | 21.3 | 18 | 38 | 38 |
| 32x32x25 | 42.4 | 38 | 33.7 | 32 | 48 | 48 |
| 32x32x20 | 42.4 | 38 | 26.9 | 25 | 48 | 48 |
| 32x32x15 | 42.4 | 38 | 21.3 | 18 | 48 | 48 |
| 40x40x32 | 48.3 | 45 | 42.4 | 38 | 57 | 57 |
| 40x40x25 | 48.3 | 45 | 33.7 | 32 | 57 | 57 |
| 40x40x20 | 48.3 | 45 | 26.9 | 25 | 57 | 57 |
| 40x40x15 | 48.3 | 45 | 21.3 | 18 | 57 | 57 |
| 50x50x40 | 60.3 | 57 | 48.3 | 45 | 64 | 60 |
| 50x50x32 | 603 | 57 | 42.4 | 38 | 64 | 57 |
| 50x50x25 | 60.3 | 57 | 33.7 | 32 | 64 | 51 |
| 50*50x20 | 603 | 57 | 26.9 | 25 | 64 | 44 |
Specification:
| Nominal Diameter | Depth of Socket | Dimension of Socket | Wall Thickness | Center to Bottom of Socket | |||||
| Cmin | |||||||||
| DN | NPS | Jmin | d1 | 3000LB Sch80 | 6000LB Schl60 | 9000LB xxs | 3000LB Sch80 | 6000LB Schl60 | 9000LB XXS |
| 6 | 1/8 | 10 | 10.7 | 32 | 3.5 | - | 11 | 11 | - |
| 8 | 1/4 | 10 | 14.1 | 33 | 4.0 | - | 11 | 15 | - |
| 10 | 3/8 | 10 | 17.5 | 3.5 | 4.4 | - | 13 | 15 | - |
| 15 | 1/2 | 10 | 21.8 | 4.1 | 5.2 | 8.2 | 16 | 19 | 25 |
| 20 | 3/4 | 13 | 27.4 | 43 | 6.1 | 8.6 | 19 | 22 | 28 |
| 25 | 1 | 13 | 34.2 | 5.0 | 7.0 | 10.0 | 22 | 27 | 32 |
| 32 | 1.1/4 | 13 | 42.9 | 53 | 7.0 | 10.6 | 27 | 32 | 35 |
| 40 | 1.1/2 | 13 | 48.3 | 5.6 | 7.8 | 11.2 | 32 | 38 | 38 |
Size:1/8"~2",1/2' ~ 6'
Standard:DIN,ANSI,ASTM,JIS,GB
Material:SS304 SS316L
Stainless steel tee has different uses in different industries, showing the use value in various industries. It is also suitable for water, beverage, beer, food, petrochemical, nuclear power, machinery, medical equipment, fertilizer, shipbuilding, waterproof treatment, pipeline, etc. it has a wide range of applications, ranging from small to several millimeters, to several meters, from high vacuum to high pressure.
a. Plastic bubble bag package b.Wove bag package c.Pallet d. Customized.
Our Steel flat factory have high ability for production, the delivery time is 30 days for small quantity, or if you are hurry for that, we can arrange and meet your shipping date.
