Product Details:
|
| Product Name: | 90 Degree Stainless Steel Elbow | Standard: | DIN, ANSI, ASTM, JIS, GB |
|---|---|---|---|
| Technics: | Butt Weld | Size: | Customized Size |
| Application: | Oil,Petroleum | Packing: | Wooden Case,Bags |
| High Light: | Buttweld Stainless Steel Pipe Fittings,Buttweld 90 Degree Elbow,ANSI Butt Weld Pipe Elbow |
||

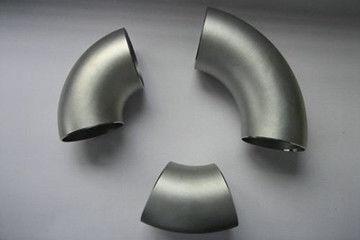

90 degree stainless steel elbow originated in the 1980s, is a new industry. After more than 20 years of development and exploration, it has begun to take shape. Elbow is a kind of pipe fittings, which is mainly made of stainless steel. With the development of economy, the application scope of stainless steel pipe fittings is more and more wide. Based on the analysis of corrosion resistance of stainless steel surface passivation layer, combined with the application of advanced production technology and equipment, the stainless steel clamp not only meets the needs of daily production and life, but also fills the gap in China.
3 stainless steel pipe fittings 90 degree stainless steel elbow technical data sheet as below:
| DN | Outside diameter | Center to end dimensions | |
| A Series | B Series | Long radius | |
| 15 | 21.3 | 18 | 16 |
| 20 | 26.9 | 25 | 16 |
| 25 | 33.7 | 32 | 16 |
| 32 | 42.4 | 3S | 20 |
| 40 | 48.3 | 45 | 24 |
| 50 | 60.3 | 57 | 32 |
| 65 | 76.1(73) | 76 | 40 |
| 80 | 88.9 | 89 | 47 |
| 100 | 114.3 | 108 | 63 |
| 125 | 139.7 | 133 | 79 |
| 150 | 1683 | 159 | 95 |
| 200 | 219.1 | 219 | 126 |
| 250 | 273 | 273 | 158 |
| 300 | 323.9 | 325 | 189 |
Standard:DIN, ANSI, ASTM, JIS, GB
Technics:Butt weld
Application:Oil, Petroleum
90 degree stainless steel elbow with excellent corrosion resistance. The thin and firm oxide film on the surface of stainless steel makes stainless steel have excellent corrosion resistance in all water quality, even if it is buried underground. Therefore, it is suitable for all kinds of water quality, in addition to disinfection and sterilization, there is no need to control the water quality.
90 degree stainless steel elbow. When manufacturing standard ball valve, stop valve and gate valve, they are only used for full opening or full closing, and are not allowed to be used for flow regulation, so as to avoid erosion and accelerated wear of sealing surface. There are reverse sealing devices in gate valve and upper thread stop valve. When the hand wheel is screwed to the top position, the leakage of medium from packing can be prevented.
a. Plastic bubble bag package b.Wove bag package c.Pallet d. Customized.
Our Steel flat factory have high ability for production, the delivery time is 25 days for small quantity, or if you are hurry for that, we can arrange and meet your shipping date.
