Product Details:
|
| Product Name: | Stainless Steel Elbow | Standard: | GB / ANSI /JIS / DIN |
|---|---|---|---|
| Material: | SS304 SS316L | Connection: | Welding |
| Size: | Customized Size | Application: | Oil,Petroleum,Connect Pipes |
| High Light: | SS304 Elbow Pipe Compression Fittings,DN150 Pipe Compression Fittings,JIS Pipe Compression Fittings |
||

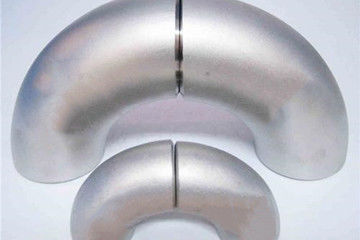

Stainless steel elbow, The basic difference between elbow and elbow is that elbow is shorter than elbow. If r = 1 to 2 times, it is elbow, and the larger multiple is elbow. In the production process, the cold bending pipe can be made by the ready-made straight pipe bending machine, and the one-time completion does not need the secondary anti-corrosion. But the elbow needs to be made to order by the manufacturer, it needs to be anticorrosive, and the order period is long. The price of elbow is higher than that of elbow, but the cost performance is much higher than that of elbow. It is well known that the elbow without anti-corrosion treatment is easy to be damaged, but because of its low price, it is widely used in some projects with low requirements.
Stainless steel pipe compression fittings Stainless steel elbow technical data sheet as below:
| DN | Outside diameter | Center to end dimensions | |
| A Series | B Series | Long radius | |
| 15 | 21.3 | 18 | 16 |
| 20 | 26.9 | 25 | 16 |
| 25 | 33.7 | 32 | 16 |
| 32 | 42.4 | 3S | 20 |
| 40 | 48.3 | 45 | 24 |
| 50 | 60.3 | 57 | 32 |
| 65 | 76.1(73) | 76 | 40 |
| 80 | 88.9 | 89 | 47 |
| 100 | 114.3 | 108 | 63 |
| 125 | 139.7 | 133 | 79 |
| 150 | 1683 | 159 | 95 |
Standard:GB / ANSI /JIS / DIN
Material:SS304 SS316L
Size:Customized Size
Stainless steel elbow has the characteristics of reliable and safe connection, convenient and fast construction, good sanitation and environmental protection performance, small flow and pressure loss, strong system compatibility, open installation and concealed installation, no renewal and maintenance, superior economic performance and wide application range. It is suitable for cold and hot water, direct drinking water, heating, air conditioning, fire fighting, gas and other civil low-pressure fluid transportation, and can also be used for medicine, drinking water and other applications Low pressure fluid transportation in material, food, chemical and other industries.
Stainless steel elbow can be used in different fields, good characteristics and advantages to promote and progress, enrich and show good value and role, do not damage the value of construction.
a. Plastic bubble bag package b.Wove bag package c.Pallet d. Customized.
Our Steel flat factory have high ability for production, the delivery time is 25 days for small quantity, or if you are hurry for that, we can arrange and meet your shipping date.
