Product Details:
|
| Product Name: | Stainless Steel Elbow | Standard: | GB / ANSI /JIS / DIN |
|---|---|---|---|
| Material: | Stainless Steel,SS304 SS316L | Size: | 1/8"~2",1/2' ~ 6' |
| Application: | Construction,Connect Pipes | Packing: | Wooden Case,Bags |
| High Light: | SS316 Stainless Steel Pipe Fittings,DN65 Stainless Steel Pipe Fittings,SS316 90 Degree Elbow |
||

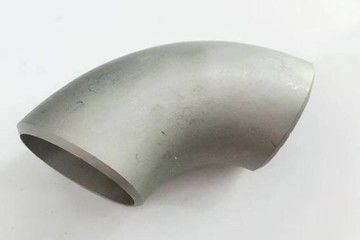

Stainless steel elbow. The pipe mouth of the elbow of the product is provided with a lining. One part of the lining is located in the pipe mouth and is fixedly connected with the inner wall of the wide mouth. The other part of the lining is located outside the pipe mouth. The lining outside the pipe mouth of the product is provided with a cutting. When the elbow is connected with the stainless steel pipe, it is easy to butt install, can eliminate the tension generated by the pipe connection, and has strong anti deformation ability. After welding, the joint will not deform after long-time use, and the installation and decoration effect is good.
Stainless steel 316 pipe fittings Stainless steel elbow technical data sheet as below:
| DN | Outside diameter | 90 degree elbow | ||
| A series | B series | Long radius | Short radius | |
| 15 | 213 | 18 | 38 | - |
| 20 | 26.9 | 25 | 38 | - |
| 25 | 33.7 | 32 | 38 | 25 |
| 32 | 42.4 | 38 | 48 | 32 |
| 40 | 483 | 45 | 57 | 38 |
| 50 | 603 | 57 | 76 | 51 |
| 65 | 76.1(73) | 76 | 95 | 64 |
| 80 | 88.9 | 89 | 114 | 76 |
| 100 | 1143 | 108 | 152 | 2 |
| 125 | 139.7 | 133 | 190 | 127 |
Standard:GB / ANSI /JIS / DIN
Material:Stainless Steel,SS304 SS316L
Size:1/8"~2",1/2' ~ 6'
Stainless steel elbow relates to the field of architectural decoration, and its technical points are as follows: it includes the elbow body, the elbow body of the product includes a bending section and a straight section respectively connected at both ends of the bending section, and also includes an arc-shaped bending part, the two ends of the bending section of the product are connected through the bending part, and the two parts form a hollow. Through the setting of the bending part, the bending performance of the elbow body is enhanced, and the service life of the elbow body is also increased.
a. Plastic bubble bag package b.Wove bag package c.Pallet d. Customized.
Our Steel flat factory have high ability for production, the delivery time is 25 days for small quantity, or if you are hurry for that, we can arrange and meet your shipping date.
