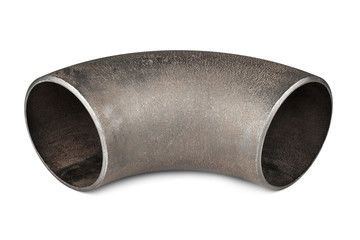

Product Details:
|
| Product Name: | Stainless Steel Elbow | Standard: | GB / ANSI /JIS / DIN |
|---|---|---|---|
| Technics: | Butt Weld | Size: | Seamless 1/2" To 24" |
| Application: | Construction,Connect Pipes | Packing: | Wooden Case,Bags |
| High Light: | Anti Corrosion Butt Weld Elbow,Connect Pipes Butt Weld Elbow,SS316 Butt Weld Elbow |
||
Stainless steel elbow has a long service life. The service life of this kind of elbow can reach 100 years, at least 70 years, which is as long as that of buildings.
Stainless steel elbow, One of the outstanding advantages is its excellent corrosion resistance, which is the best in all kinds of pipe fittings. Because stainless steel can passivate with oxidant, forming a tough and dense chromium rich oxide protective film dr2o3 on the surface, which can effectively prevent the further attack of oxidation reaction.
Stainless Steel Pipe Fittings Stainless steel elbow technical data sheet as below:
| DN | Outside diameter | 90 degree elbow | ||
| A series | B series | Long radius | Short radius | |
| 15 | 213 | 18 | 38 | - |
| 20 | 26.9 | 25 | 38 | - |
| 25 | 33.7 | 32 | 38 | 25 |
| 32 | 42.4 | 38 | 48 | 32 |
| 40 | 483 | 45 | 57 | 38 |
| 50 | 603 | 57 | 76 | 51 |
| 65 | 76.1(73) | 76 | 95 | 64 |
| 80 | 88.9 | 89 | 114 | 76 |
| 100 | 1143 | 108 | 152 | 2 |
| 125 | 139.7 | 133 | 190 | 127 |
Standard:GB / ANSI /JIS / DIN
Size:Seamless 1/2" To 24"
Packing:wooden case,Bags
Stainless steel elbow, its thermal conductivity is 1 / 25 of copper pipe, is 1 / 4 of general steel pipe, especially suitable for hot water transportation. 304 and 316 stainless steel are commonly used in industry, which can meet most of the water treatment and transportation conditions.
Stainless steel elbow will not have uniform corrosion like carbon steel, so there is no need for protective coating when using; there is no limit on the chemical composition of water when selecting elbow, because stainless steel has good corrosion resistance in water with various oxygen content, temperature, pH and hardness; stainless steel pipe can maintain a very high flow rate, even if the flow rate is greater than 40 m / s, it still adheres to a very low corrosion rate, no more than 0 003 mm / year, especially suitable for building water supply.
a. Plastic bubble bag package b.Wove bag package c.Pallet d. Customized.
Our Steel flat factory have high ability for production, the delivery time is 25 days for small quantity, or if you are hurry for that, we can arrange and meet your shipping date.
