Product Details:
|
| Product Name: | Stainless Steel Pipe Cap | Material: | SS304 SS316L |
|---|---|---|---|
| Standard: | GB / ANSI /JIS / DIN | Application: | Oil,Petroleum,Chemical,Construction |
| Color: | Silver | Usage: | Steel Pipe |
| High Light: | ISO9001 SS304 Pipe Cap,Petroleum SS304 Pipe Cap,DN100 SS Pipe Cap |
||

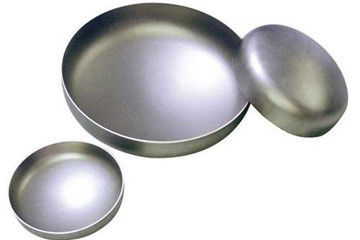

Stainless steel pipe cap, also known as plug or head, is mainly used to weld on the pipe end or install on the external thread of the pipe end to cover the stainless steel pipe fittings of the pipe. It is used to close the pipeline and has the same function as the plug. The stainless steel pipe cap includes convex pipe cap, conical shell, variable diameter section, flat cover and tightening mouth.
Stainless steel convex pipe cap includes hemispherical cap, oval cap, dished cap and spherical cap. From the stress point of view, there are some defects in the convex pipe cap, but the manufacturing difficulty is low.
Diameter: 1 / 2-4 "DN 15-DN 100
Material: stainless steel 201.304.316
Applicable temperature: - 20 ~ 1050 ℃
Applicable medium: water, oil, gas and some corrosive liquids
Product features: beautiful appearance, smooth surface, acid and alkali resistance, anti-corrosion, strong texture performance.
Stainless steel pipe cap is widely used in chemical industry, petroleum, electric power, pharmacy, beer, food, dairy beverage and various engineering supporting pipelines.
1. It is made of stainless steel 304 and 316.
2. Main specification: 1 / 4 "- 4" dn8-dn 100.
3. Main features: large temperature difference resistance; atmospheric pressure 1.6Mpa; strong corrosion resistance; precision; wall thickness.
4. Connection mode: ferrule, quick installation, thread, flange, PPR.
5. Driving mode: manual, automatic, pneumatic and electric.
Stainless steel pipe fittings Stainless steel pipe cap technical data sheet as below:
| Nominal Diameter | Depth of Socket | Dimension of Socket | Wall Thickness | End Wall Thickness | |||||
| Cmin | Kmin | ||||||||
| DN | NPS | Jmin | d1 | 3000 LB | 6000 LB | 9000 LB | 3000 LB | 6000 LB | 3000 LB |
| Sch80 | Sch160 | XXS | Sch80 | Sch160 | XXS | ||||
| 6 | 1/8 | 10 | 10.7 | 3.2 | 3.5 | - | 5.0 | 6.5 | - |
| 8 | 1/4 | 10 | 14.1 | 3.3 | 4.0 | - | 5.0 | 6.5 | - |
| 10 | 3/8 | 10 | 17.5 | 3.5 | 4.4 | - | 5.0 | 6.5 | - |
| 15 | 1/2 | 10 | 21.8 | 4.1 | 5.2 | 8.2 | 6.5 | 8.0 | 11.0 |
| 20 | 3/4 | 13 | 27.4 | 4.3 | 6.1 | 8.6 | 6.5 | 8.0 | 12.5 |
| 25 | 1 | 13 | 34.2 | 5.0 | 7.0 | 10.0 | 9.5 | 11.0 | 14.0 |
| 32 | 1.1/4 | 13 | 42.9 | 5.3 | 7.0 | 10.6 | 9.5 | 11.0 | 14.0 |
| 40 | 1.1/2 | 13 | 48.3 | 5.6 | 7.8 | 11.2 | 11.0 | 12.5 | 16.0 |
| 50 | 2 | 13 | 61.1 | 6.1 | 9.5 | 12.2 | 12.5 | 16.0 | 19.0 |
| 65 | 2.1/2 | 16 | 76.9(73.8) | 7.7 | 12.5 | 16.0 | 19.0 | - | |
| 80 | 3 | 16 | 89.8 | 8.3 | 13.8 | - | 19.0 | 22.0 | - |
| 100 | 4 | 19 | 115.5 | 9.4 | - | - | 22.0 | 28.5 | - |
a. Plastic bubble bag package b.Wove bag package c.Pallet d. Customized.
Our Steel flat factory have high ability for production, the delivery time is 25 days for small quantity, or if you are hurry for that, we can arrange and meet your shipping date.
