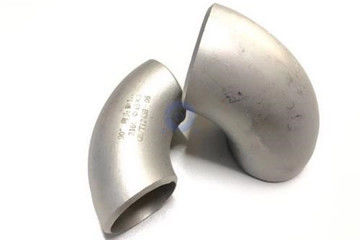

Structural Steel Joining Pipe ANSI SS304 Pipe Elbow

Structural Steel Joining Pipe ANSI SS304 Pipe Elbow
Structural Steel Joining Pipe ANSI SS304 Pipe Elbow

Large Image :  Structural Steel Joining Pipe ANSI SS304 Pipe Elbow

Product Details:
Place of Origin: China
Brand Name: Stainless steel elbow
Certification: ISO9001
Model Number: LJ-PF301
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Packaging Details: Export standard packaging
Delivery Time: Depends on the quantity of goods
Payment Terms: L/C, T/T
Supply Ability: Annual output 50000 tons

Structural Steel Joining Pipe ANSI SS304 Pipe Elbow

Product Name: Stainless Steel Elbow Color: Black
Standard: GB / ANSI /JIS / DIN Usage: Joining Pipe Lines
Application: Connect Pipes Shape: Equal
High Light:

ANSI SS304 Pipe Elbow


JIS Joining Pipe Pipe Elbow


DN15 Structural Steel Pipe Elbow


Stainless steel elbow is widely used. Stainless steel elbows for general use are rolled by common carbon structural steel, low alloy structural steel or alloy structural steel, with a large output. They are mainly used as pipes or structural parts for transporting fluid.

According to the pipe type can be divided into: 1. Machining, bearing sleeve, processing machinery accessories, etc. 2. Gas transportation, water power generation fluid and other electrical pipelines. 3. There are a lot of underground pipelines to transport, underground water to be extracted when building, boiler hot water transportation and other construction pipelines. 4. Anti static pipe of wind power plant.

It is classified according to different uses: 1. Supplied according to chemical composition and mechanical function; 2. Supplied according to mechanical function; 3. Supplied according to hydraulic test. If the steel pipes supplied according to a and B are used to accept liquid pressure, hydrostatic test shall also be conducted. 4. There are many kinds of seamless pipes for special purposes, such as seamless pipes for boilers, stainless steel elbows for geology and seamless pipes for petroleum.


Standard:GB / ANSI /JIS / DIN

Material:SS304 SS316

Usage:Joining Pipe Lines


Two methods of butt welding are usually used to form the end face of stainless steel pipe by hot welding or butt welding.

The stainless steel elbow not only saves space and reduces the weight, but also ensures that the joint will not leak and has good sealing performance.

The stainless steel elbow has a certain function of corrosion resistance, heat resistance and wear resistance. It is usually used in power station, chemical industry, petroleum and other equipment. Due to poor weldability of stainless steel stamping elbow, attention should be paid to welding process, heat treatment premise and selection of suitable welding electrode.

Technical data sheet

304 stainless steel pipe fittings stainless steel elbow technical data sheet as below:

DN Outside diameter 90 degree elbow
A series B series Long radius Short radius
15 213 18 38 -
20 26.9 25 38 -
25 33.7 32 38 25
32 42.4 38 48 32
40 483 45 57 38
50 603 57 76 51
65 76.1(73) 76 95 64
80 88.9 89 114 76
100 1143 108 152 2
125 139.7 133 190 127
150 1683 159 229 152
200 219.1 219 305 203
250 273 273 381 254
300 323.9 325 457 305
350 355.6 377 533 356
400 406.4 426 610 406
450 457 478 686 457
500 508 529 762 508
550 559 - 838 559
600 610 630 914 610
650 660 - 991 660
700 711 720 1067 711


a. Plastic bubble bag package b.Wove bag package c.Pallet d. Customized.

Delivery time

Our Steel flat factory have high ability for production, the delivery time is 30 days for small quantity, or if you are hurry for that, we can arrange and meet your shipping date.
