Product Details:
|
| Product Name:: | Stainless Steel Threaded Piston | Size:: | Full-size |
|---|---|---|---|
| Standard:: | GB / ANSI /JIS / DIN | Form：: | Piston Crown, Head And Skirt |
| Connection: | Welding | Application: | Oil,Petroleum |
| High Light: | Welding threaded piston,ss metric stainless steel fittings |
||

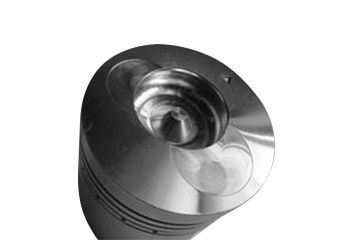

The piston is a reciprocating part in the cylinder block of an automobile engine.The basic structure of piston can be divided into top, head and skirt. The top of the piston is the main part of the combustion chamber, its shape is related to the combustion chamber. Flat top piston is widely used in gasoline engine, which has the advantage of small heat absorption area.There are many kinds of pits on the top of the diesel engine piston. The specific shape, position and size of the pits must meet the requirements of the mixture formation and combustion of the diesel engine.
At present, stainless steel piston products have a very large market and demand.
1.The piston works under the conditions of high temperature, high pressure, high speed and poor lubrication.
2.The piston is in direct contact with high temperature gas, and the instantaneous temperature can reach more than 2500K, so it is heated seriously.
3.Because of the poor heat dissipation condition, the temperature of the piston is very high when it is working, the top of the piston is as high as 600-700k, and the temperature distribution is very uneven.
4.The gas pressure on the top of the piston is very large, especially the working stroke pressure is the maximum.
5.The gasoline engine is as high as 3-5mpa, and the diesel engine is as high as 6-9mpa, which makes the piston produce impact and bear the side pressure.
6.The piston moves back and forth in the cylinder at a very high speed, and the speed is constantly changing, which produces a great inertia force and makes the piston subject to a great additional load.
7. When the piston works in such a bad condition, it will deform and accelerate the wear. It will also produce additional load and thermal stress. At the same time, it will suffer from the chemical corrosion of gas.
It is mainly used in hydraulic and pneumatic, engineering machinery, automobile manufacturing piston rod, such as many mechanical processing products and process equipment, are inseparable from its existence. At present, stainless steel piston is widely used. Innovative methods are adopted to ensure the heat resistance, wear resistance, smooth guidance and good sealing function of the piston, reduce the friction loss of the engine, reduce fuel consumption, noise and emissions.
Threaded Piston Metric Stainless Steel Pipe Fittings data sheet:
| 0-ring d2Xdl |
Hydraulic dynamic seal d4(min) /mm | Hydraulic dynamic seal d4(max) /mm | Hydraulic dynamic seal d5(min) /mm | Hydraulic dynamic seal d5(max) /mm | Pneumatic seal d4(min) /mm | Pneumatic seal d4(max) /mm | Pneumatic seal d5(min) /mm | Pneumatic seal d5(max) /mm | Radial static seal d4(min) /mm | Radial static seal d4(max) /mm | Radial static seal d5(min) /mm | Radial static seal d5(max) /mm |
| 18000375 | - | - | 4.139 | 4.07 | - | - | 3.939 | 3.87 | - | - | 4.219 | 4.09 |
| 18000400 | - | - | 4.369 | 4.32 | - | - | 4,169 | 4.12 | - | - | 4.449 | 4 34 |
| 18000150 | - | - | 4. 829 | 4.82 | - | - | 4.629 | 4.62 | - | - | 4.909 | 4.84 |
| 18000187 | - | - | 5.169 | 5.19 | 7.98 | 8.019 | 5.969 | 4.99 | - | - | 5.249 | 5.21 |
| 18000500 | 8.01 | 8.06 | 5.289 | 5.32 | 8.11 | 8.16 | 5.089 | 5.12 | 7.99 | 7.98 | 5.369 | 5.34 |
| 18000515 | 8.16 | 8.222 | 5.427 | 5.47 | 8.26 | 8.322 | 5.227 | 5.27 | 8.14 | 8.142 | 5.507 | 5.49 |
| 18000530 | 8.31 | 8.381 | 5.565 | 5.62 | 8.11 | 8.181 | 5.365 | 5.12 | 8.29 | 8.304 | 5.&15 | 5.49 |
| 18000560 | 8.61 | 8.708 | 5.841 | 5.92 | 8.71 | 8.808 | 6 | 5.72 | 8.59 | 8.628 | 5.921 | 5.94 |
| 18000600 | 9.01 | 9.11 | 6.209 | 6.32 | 9.11 | 9.24 | 6.009 | 6.12 | 8.99 | 9.06 | 6.289 | 6.34 |
| 18000630 | 9.32 | 9.453 | 6.494 | 6.61 | 9.12 | 9.553 | 6.294 | 6.41 | 9.3 | 9.373 | 6.571 | 6.63 |
| 18000670 | 9.72 | 9. 685 | 6.862 | 7.01 | 9.82 | 9.985 | 6.662 | 6.81 | 9.7 | 9.805 | 6.942 | 7.03 |
| 18000690 | 9.92 | 10.101 | 7.046 | 7.21 | 10.02 | 10.201 | 6.846 | 7.01 | 9.9 | 10.021 | 7.126 | 7.23 |
| 18000710 | 10.12 | 10.317 | 7.23 | 7.11 | 10.22 | 10.417 | 7.03 | 7.21 | 10.1 | 10.237 | 7.31 | 7.43 |
| 18000750 | 10.52 | 10.749 | 7.598 | 7.81 | 10.62 | 10.849 | 7.398 | 7.61 | 10.5 | 10.669 | 7.678 | 7.83 |
| 18000800 | 11.02 | 11.289 | 8.058 | 8.31 | 11.12 | 11.389 | 7,858 | 8.11 | 11 | 11.209 | 8.138 | 8.38 |
| 18000850 | 11.52 | 11.829 | 8.518 | 8.81 | 11.62 | 11.929 | 8.318 | 8.61 | 11.5 | 11.719 | 8.598 | 8.83 |
1. Sufficient strength, rigidity, small mass and light weight shall be provided to ensure the minimum inertia force.
2. Good thermal conductivity, high temperature, high pressure, corrosion resistance, sufficient heat dissipation capacity, small heating area.
3. There should be a small friction coefficient between the piston and the piston wall.
4. When the temperature changes, the size and shape change should be small, and the minimum clearance should be kept between the cylinder wall and the cylinder wall.
5. The coefficient of thermal expansion is small, the specific gravity is small, and it has better antifriction and thermal strength.
a. Plastic bubble bag package b.Wove bag package c.Pallet d. Customized
Our Threaded Piston Metric Stainless Steel Pipe Fittings factory have high ability for production, the delivery time is 45days for small quantity, or if you are hurry for that, we can arrange and meet your shipping date.
