Product Details:
|
| Product Name:: | Stainless Steel Threaded Coupling | Specifications：: | DN6~DN100 |
|---|---|---|---|
| Pressure：: | 3000/6000/9000LB | Technology：: | Forging Forming |
| Usage: | Oil Gas Water,connection For Pipes | Keyword: | Stainless Steel Pipe Fitting |
| High Light: | ss Stainless Steel Threaded Coupling,Ss Threaded Fittings |
||

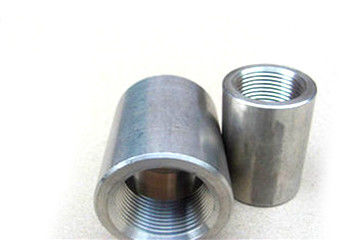

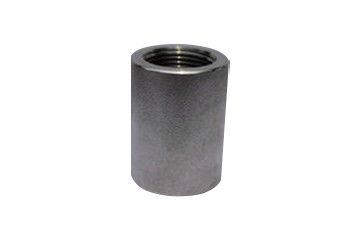

Coupling is a kind of common fittings in industrial pipe connection. A short piece of pipe used to connect two pipes. It is also called external joint and direct head. Because of its convenient use, Coupling is widely used in civil construction, industry, agriculture and other fields. Stainless steel double interface threaded Coupling is a kind of high-pressure threaded Coupling, which is mainly formed by forging blank of round steel or ingot and then processed by lathe.The threaded Coupling is a pipe connector machined after the forging of round steel or ingot. Its connection form is threaded connection, and the Coupling is buckled and fixed with the pipe thread. .
1, Size: DN6, DN8, dn10, DN15, DN20, DN25, DN32, Dn40, DN50, DN65, DN80, DN100. The commonly used order specification is dn15-dn50.
2, Pressure: 3000lb, 6000lb, 9000lb or sch80, sch160, XXS.
3, Standards: ASME B16.11, Hg / T 21634-1996, MSS SP-83, MSS sp-79, MSS sp-97, MSS sp-95, GB / T 14383-2008, SH / t3410-96, gd2000, GD87, 40t025-2005, etc.
4, Non-standard processing and manufacturing can also be carried out according to the drawings.
5, Manufacturing standards: national standard, American Standard, Russian standard, Japanese standard, German standard, European standard, electric standard, chemical standard, etc.
6, Application: widely used in natural gas, electric power, petroleum, chemical, industrial, pharmaceutical, pressure pipeline, etc.
7, Processing method: the high-pressure forging Coupling cap is mainly formed by the forging blank of round steel or ingot, and then processed by lathe.
SS quick connect Stainless Steel Threaded Coupling data sheet
|
Nominal size |
internal diameter |
Material diameter |
Thread diameter |
Thread length |
height |
Hole spacing |
Material length |
|
10 |
17.3 |
8.9 |
M10 |
30 |
43 |
28 |
116 |
|
15 |
21.7 |
S. 9 |
M10 |
30 |
46 |
34 |
130 |
|
20 |
27.2 |
S. 9 |
M10 |
35 |
51 |
40 |
140 |
|
25 |
34 |
8.9 |
M10 |
35 |
59 |
46 |
160 |
|
32 |
42.5 |
8.9 |
M10 |
35 |
68 |
56 |
185 |
|
40 |
48.6 |
8.9 |
M10 |
35 |
74 |
62 |
200 |
|
50 |
60.5 |
8.9 |
M10 |
40 |
85 |
74 |
240 |
|
65 |
76.8 |
8.9 |
M10 |
40 |
107 |
88 |
280 |
|
80 |
89.4 |
8.9 |
M10 |
45 |
117 |
101 |
310 |
|
100 |
114.3 |
S. 9 |
M10 |
45 |
145 |
126 |
380 |
|
125 |
139.8 |
10.8 |
M12 |
55 |
175 |
154 |
455 |
|
150 |
165.2 |
10.8 |
M12 |
55 |
200 |
182 |
520 |
|
200 |
216.3 |
14.6 |
M16 |
65 |
254 |
236 |
665 |
|
250 |
267.4 |
14.6 |
M16 |
65 |
308 |
286 |
805 |
|
300 |
318.5 |
18.3 |
M20 |
85 |
371 |
344 |
970 |
|
350 |
355.6 |
18.3 |
M20 |
85 |
403 |
377 |
1050 |
|
400 |
406.4 |
21.9 |
M24 |
85 |
446 |
434 |
1170 |
|
450 |
457.2 |
21.9 |
M24 |
85 |
508 |
484 |
1320 |
|
500 |
508 |
30 |
M30 |
90 |
556 |
548 |
1470 |
|
550 |
558.8 |
30 |
M30 |
90 |
605 |
598 |
1610 |
|
600 |
609.6 |
36 |
M36 |
110 |
663 |
656 |
1750 |
|
650 |
660.4 |
36 |
M36 |
120 |
713 |
706 |
1890 |
|
700 |
711.2 |
36 |
M36 |
120 |
764 |
758 |
2020 |
|
750 |
762 |
36 |
M36 |
120 |
818 |
810 |
2160 |
|
125ALB |
15-15 |
|
M16 |
75 |
185 |
190 |
520 |
|
125ALB |
10-10 |
|
M16 |
75 |
185 |
180 |
510 |
a. Plastic bubble bag package b.Wove bag package c.Pallet d. Customized
Our SS quick connect Stainless Steel Threaded Coupling factory have high ability for production, the delivery time is 45days for small quantity, or if you are hurry for that, we can arrange and meet your shipping date.
