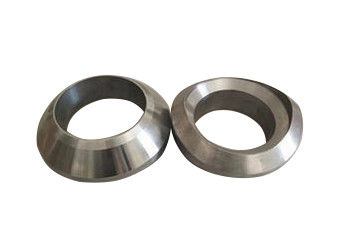

Metal T Pipe Butt Welding Olet Stainless Steel Pipe Fittings

Metal T Pipe Butt Welding Olet Stainless Steel Pipe Fittings
Metal T Pipe Butt Welding Olet Stainless Steel Pipe Fittings Metal T Pipe Butt Welding Olet Stainless Steel Pipe Fittings

Large Image :  Metal T Pipe Butt Welding Olet Stainless Steel Pipe Fittings

Product Details:
Place of Origin: China
Brand Name: Stainless steel butt welding olet
Certification: ISO9000
Model Number: LJ-PF020
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: 1USD-100USD
Packaging Details: Export standard packaging
Delivery Time: Depends on the quantity of goods
Payment Terms: L/C, T/T
Supply Ability: Annual output 50000 tons

Metal T Pipe Butt Welding Olet Stainless Steel Pipe Fittings

Description
Product Name:: Stainless Steel Butt Welding Olet Specifications:: DN6~DN100
Technology:: Sawing And Machining Material:: Stainless Steel
Shape: Equal Technics: Forged,Butt Weld
High Light:

Stainless Steel Butt Weld Pipe Fittings

,

Stainless Steel Weldolet

Description


Olet is also called Olet seat, saddle and saddle type pipe joint.  It is mainly used for reinforcing pipe fittings of branch connection instead of branch connection types such as reducing tee, reinforcing plate and reinforcing pipe section. The Olet has the outstanding advantages of safety, reliability, cost reduction, simple construction, improvement of medium flow channel, series standardization, and convenient design and selection. Especially in the high pressure, high temperature, large diameter and thick wall pipelines, which is increasingly used to replace the traditional Olet connection method.The main body of the Olet is made of high-quality forgings with the same material as the pipe, including carbon steel, alloy steel, stainless steel, etc.

Metal T Pipe Butt Welding Olet Stainless Steel Pipe Fittings 0

Specification


1. The Olet seat and the main pipe are welded. There are three types of connection with the Olet or other pipes, instruments and valves: butt welding connection, socket welding connection and threaded connection.

2.  The commonly used manufacturing standards include MSS sp-97, GB / t19326 and other standards.

3.  Welding Olet is generally processed by integral forging. Olet structure is divided into main pipe connection end, reinforcement part and Olet connection end.

4. The external dimension of Olet has corresponding reference standard, and the connection form with main pipe is groove butt connection.

10,  The groove of the weld is a single-sided V-groove, which can be determined as the combination of butt weld (groove weld) and fillet weld.



Metal T Pipe Butt Welding Olet Stainless Steel Pipe Fittings 1



5. The other parts outside the first slope of the branch header belong to the thickness transition slope and do not belong to the groove of the branch header.

6.   When calculating the weld thickness, the second bevel shall be excluded and calculated from the first one. In the actual welding on site, the thickness of the weld can reach the first inclined plane.

Type sheet


Metal T Pipe Butt Welding Olet Stainless Steel Pipe Fittings data sheet

Type Connected type
GB19326 Socket welded GB 19326 Pipe thread GB 19326 Butt-welded
Standard SOL (MSS SP-97 Q.TG11) TOL (MSS SP-97 Q,FG12) WOL (MSS SP-97 Q/FG13)
Nipolet SNL (Q.TG/14) TNL (Q.FG14,SHB-PO1) WNL (Q/FG14)
(45°) Latrolet SEL (Q.TG/15) TLL (Q/FGlx SHB-PO1) WLL (Q/FG15)
(1 5D) Elbolet   TEL (Q/FG1Q SHB-PO1) WEL (Q/FG16)

Technical data sheet


Metal T Pipe Butt Welding Olet Stainless Steel Pipe Fittings data sheet

Nominal Diameter Nominal Diameter of Suited Main Pipe L E
mm in mm in STD XS xxs STD XS XXS
6 1/8 20 3/4 15.9 - - 15.9 - -
8 1/4 20 3/4 15.9 - - 15.9 - -
10 3/8 25 1 19.1 - - 19.1 - -
15 1/2 32 1.1/4 19.1 19.1 28.6 23.8 23.8 14.3
20 3/4 40 1.1/2 22.2 22.2 31.8 302 30.2 19.1
25 1 40 1.1/2 27.0 27.0 38.1 36.5 36.5 25.4
32 1.1/4 65 2.1/2 31.8 31.8 44.5 44.5 44.5 33.3
40 1.1/2 65 2.1/2 33.3 33.3 50.8 50.8 50.8 38.1
50 2 80 3 38.1 38.1 58.6 65.1 65.1 42.9
60 2.1/2 100 4 41.3 41.3 61.9 762 76.2 54.0
80 3 125 5 44.5 44.5 73.0 93.7 93.7 77.0
90 3.1/2 150 6 47.0 47.0 - 10L6 101.6 -
100 4 150 6 50.8 50.8 84.1 120.7 120.7 98.4
125 5 200 8 57.2 57.2 93.7 141.3 141.3 122.2
150 6 200 8 60.3 77.8 104.8 169.9 169.9 146.1
200 8 250 10 69.9 98.4 - 220.7 220.7 -
250 10 300 12 77.8 93.7 - 274.6 265.1 -
300 12 350 14 85.7 103.2 - 325.4 317.5 -
350 14 400 16 88.9 100.0 - 357.2 350.9 -

Application


1, There are special regulations for pipeline materials in the design of pipeline branches.

2, The main pipe has clear technical regulations for different types of Olets, which is called the regulations for pipeline material grade.

3, In general, large diameter Olet (more than 1 / 2 of the main pipe) is connected by standard tee, while small diameter Olet is connected by Olet set, which is widely used in foreign countries and has relevant standards in China.

4, Small diameter Olet is used, which is beneficial to strength and stress requirements. The pipe is manufactured according to standards, safe and reliable.

Package


a. Plastic bubble bag package b.Wove bag package c.Pallet d. Customized

Delivery time


Our Metal T Pipe Butt Welding Olet Stainless Steel Pipe Fittings factory have high ability for production, the delivery time is 45days for small quantity, or if you are hurry for that, we can arrange and meet your shipping date.
