Product Details:
|

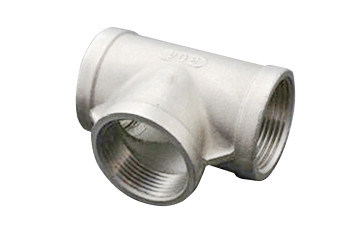

| Product Name:: | Stainless Steel Threaded Tee | Material：: | 304、304L、316、316L |
|---|---|---|---|
| Specifications：: | Ф3.0mm～450.0mm | Application: | Water、oil Transportation |
| Connection: | Threaded | Packing: | Wooden Case |
Tee also known as tee pipe fittings, tee joints, etc. Mainly used to change the direction of the fluid, used in the main pipe to branch. It can be classified by pipe diameter. Generally, it is made of carbon steel, cast steel, alloy steel, stainless steel, copper, aluminum alloy, plastic, argon, PVC and other materials.Tee can be divided into equal diameter tee and reducing tee according to pipe diameter.
The nozzle end of equal tee is the same size; the main nozzle size of reducing tee is the same, and the nozzle size of branch pipe is smaller than that of main pipe.The stainless steel threaded tee has a main pipe and a branch pipe which is perpendicular to the main pipe on one side of the main pipe and connected with the main pipe.
1. A valve is set at the corner where the direction of the main pipe outlet meets the direction of the branch pipe outlet. A circular valve piece is set on the valve.
2. The valve piece is in a mutually sealed structure with the inner wall of the pipe cavity in the closed state of the pipe cavity.
3. This kind of pipe fitting simplifies the pipeline setting, saves the consumption of pipeline parts, facilitates the operation, facilitates the maintenance of pipeline branch and the supply of each branch in stages.
4. In addition to the role of traditional three-way pipe, it also plays the role of double position valve. One of the main pipe and branch pipe output can be arbitrarily selected as closed and the other as smooth working state.
5.The utility model can also arbitrarily adjust the flow ratio of the main pipe and branch pipe output, as long as the angle of the valve piece in the pipe cavity can be adjusted.
6. Threaded tee is a kind of industrial pipe fittings. Its main function is to separate the medium. In the manufacturing process, there are two kinds of forging and casting.
7. Forging refers to forging by heating the ingot or round bar, and forming after machining the thread on the upper bed; casting refers to melting the ingot and pouring it into the model of tee, and then forming after cooling.
8. Because of the different manufacturing process, the pressure of forging is much higher than that of casting.
9. The main manufacturing standards of threaded tee are generally GB / t14626, ASME B16.11 and bs3799.
Stainless Steel Pipe Tee Threaded Tee Of Stainless Steel Pipe Fittings data sheet
| Nominal diameter | Center to End | Diameter | Thickness | Thread length | ||||||||
| Tee | D | Cmin | ||||||||||
| DN | NPS | 2000 LB | 3000 LB | 6000 LB | 2000 LB | 3000 LB | 6000 LB | 2000 LB | 3000 LB | 6000 LB | NPT | Rc |
| Sch80 | Sch160 | XXS | Sch80 | Sch160 | XXS | Sch80 | Sch160 | XXS | ||||
| 6 | 1/8 | 21 | 21 | 25 | 22 | 22 | 25 | 3.0 | 3.0 | 6.5 | 6.5 | 6.5 |
| 8 | 1/4 | 21 | 25 | 29 | 22 | 25 | 33 | 3.0 | 3.5 | 6.5 | 8.0 | 10.0 |
| 10 | 3/8 | 25 | 29 | 33 | 25 | 33 | 38 | 3.0 | 3.5 | 7.0 | 9.0 | 10.5 |
| 15 | 1/2 | 29 | 33 | 38 | 33 | 38 | 46 | 3.0 | 4.0 | 8.0 | 11.0 | 13.5 |
| 20 | 3/4 | 33 | 38 | 44 | 38 | 46 | 56 | 3.0 | 4.5 | 8.5 | 12.5 | 14.0 |
| 25 | 1 | 38 | 44 | 51 | 46 | 56 | 62 | 3.5 | 5.0 | 10.0 | 14.5 | 17.5 |
| 32 | 1.1/4 | 44 | 51 | 60 | 56 | 62 | 75 | 4.0 | 5.5 | 10.5 | 17.0 | 18.0 |
| 40 | 1.1/2 | 51 | 60 | 64 | 62 | 75 | 84 | 4.0 | 5.5 | 11.0 | 18.0 | 18.5 |
| 50 | 2 | 60 | 64 | 83 | 75 | 84 | 102 | 4.5 | 7.0 | 12.0 | 19.0 | 19.0 |
| 65 | 2.1/2 | 76 | 83 | 95 | 92 | 102 | 121 | 5.5 | 7.5 | 15.5 | 23.5 | 29.0 |
| 80 | 3 | 86 | 96 | 106 | 110 | 121 | 146 | 6.0 | 9.0 | 16.5 | 26.0 | 30.0 |
| 100 | 4 | 106 | 114 | 114 | 146 | 152 | 152 | 6.5 | 11.0 | 18.5 | 27.5 | 33.0 |
1. The stainless steel threaded tee completely solves the sealing problem between the sealing surfaces of the traditional connecting pipes, and the flow resistance is small.
2. The stainless steel tee installed on the pipeline can be directly inspected and maintained on line to reduce the cost; the structure is simple, the volume is small, and the weight is light.
3. Stainless steel three-way pipe sealing structure, the valve is provided by the mechanical force of the main body, and the sealing performance is guaranteed under various working conditions.
4. When it is fully open or fully closed, it will not cause corrosion of the valve sealing surface.
5. It can be used in a wide range, from small to several millimeters, to several meters, from high vacuum to high pressure.
