Long Radius Stainless Steel Tubing 90 Degree Elbow

Long Radius Stainless Steel Tubing 90 Degree Elbow
Long Radius Stainless Steel Tubing 90 Degree Elbow Long Radius Stainless Steel Tubing 90 Degree Elbow

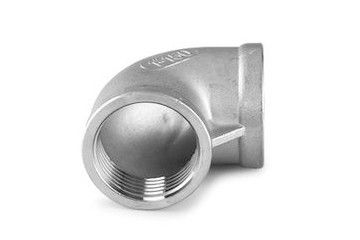

Large Image :  Long Radius Stainless Steel Tubing 90 Degree Elbow

Product Details:
Place of Origin: China
Brand Name: Stainless steel threaded elbow
Certification: ISO9001
Model Number: LJ-PF035
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: 1USD-100USD
Packaging Details: Export standard packaging
Delivery Time: Depends on the quantity of goods
Payment Terms: L/C, T/T
Supply Ability: Annual output 50000 tons

Long Radius Stainless Steel Tubing 90 Degree Elbow

Product Name:: Stainless Steel Threaded Elbow Connection Mode:: Threaded Connection
Characteristic:: Corrosion And High Pressure Resistance Material:: 201、304、316
Usage: Dairy Food And Beverage Industry Keyword: Threaded Pipe Fittings
High Light:

90 Degree Stainless Elbow


Ss 90 Degree Elbow


Elbows are fittings that change the direction of a run in a run system. According to the angle, there are three kinds of most commonly used: 45 ° and 90 ° 180 °. In addition, according to the needs of the project, there are other abnormal angle elbows such as 60 °. The most commonly used materials for elbows are stainless steel, carbon steel, etc.The connection methods of elbow and pipe are: direct welding, flange connection, hot-melt connection, electric fusion connection, threaded connection, socket connection, etc.

According to the production process can be divided into: welding elbow, stamping elbow, push elbow, casting elbow, butt welding elbow, etc.90 degree elbow manufacturing standards include: GB, ANIS, JIS, BS, DIN, UNI, etc.

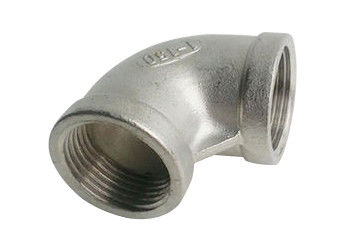

Long Radius Stainless Steel Tubing 90 Degree Elbow 0

6,  90 degree elbow is divided by curvature radius: it can be divided into long radius elbow and short radius elbow.

7,  Long radius elbow refers to the outer diameter of the pipe whose radius of curvature is equal to 1.5 times, that is, r = 1.5D.

8,  Short radius elbow means that its radius of curvature is equal to the outer diameter of the pipe, that is, r = 1.0D.

9,  The 90 degree elbow can be divided into pushing, pressing, forging, casting, etc.

10,  There are about 17 kinds of 90 degree elbows according to pressure rating, which are the same as American pipe standards.

11,  Including sch5s, sch10s, sch10, sch20, sch30, sch40s, STD, sch40, sch60, sch80s, XS, sch80, sch100, sch120, sch140, sch160, XXS, and STD and XS are commonly used.


Long Radius Stainless Steel Tubing 90 Degree Elbow 1


12,  90 degree elbow is one of the most commonly used elbow fittings. As the pipe fittings that need to be connected, right angle pipes are required to be connected in some fields of use.

13,  Only 90 degree elbow size can be used for normal connection. Therefore, 90 ° elbow is the most widely used.

14,  With the 90 degree elbow widely used in the industrial field, it has contracted many municipal project construction and liquid gas transportation, and connected the pipeline engineering to ensure the rationality of energy transportation and construction planning.

15,  Due to the strict requirements of some liquid transportation on the pipeline, the elbow products have been continuously changed and developed.

16,  And the elbow products are more suitable for the transportation of the pipeline system through the cold and hot process, impact effect and electric welding process.

Long Radius Stainless Steel Tubing 90 Degree Elbow 2

Technical data sheet

Long Radius Stainless Steel Tubing 90 Degree Elbow data sheet


DN Outside diameter 90 degree elbow
A series B series Long radius Short radius
15 213 18 38 -
20 26.9 25 38 -
25 33.7 32 38 25
32 42.4 38 48 32
40 483 45 57 38
50 603 57 76 51
65 76.1(73) 76 95 64
80 88.9 89 114 76
100 1143 108 152 2
125 139.7 133 190 127
150 1683 159 229 152
200 219.1 219 305 203
250 273 273 381 254
300 323.9 325 457 305
350 355.6 377 533 356
400 406.4 426 610 406
450 457 478 686 457
500 508 529 762 508
550 559 - 838 559
600 610 630 914 610
650 660 - 991 660
700 711 720 1067 711


Advantage and Application

1, Stainless steel threaded elbow refers to the elbow with thread. It is commonly used in water gas pipe, small diameter water pipe, compressed air pipe and low pressure steam pipe, etc.

2, It is connected with the pipe end with thread. The thread can be coated with proper adhesive to ensure sealing.

3, Stainless steel threaded elbow is an environmental protection product instead of traditional carbon steel, aluminum and copper products.

4, The products have long service life, beautiful appearance, acid and alkali resistance and corrosion resistance.

5, It is an ideal choice for high-end communities, hotels and equipment manufacturers.

6, As stainless steel threaded elbow has good comprehensive performance.

7, It is widely used in chemical industry, construction, water supply, drainage, petroleum, light and heavy industry, refrigeration, sanitation, water heating, fire protection, power, aerospace, shipbuilding and other basic projects.


a. Plastic bubble bag package b.Wove bag package c.Pallet d. Customized

Delivery time

Our Long Radius Stainless Steel Tubing 90 Degree Elbow factory have high ability for production, the delivery time is 45days for small quantity, or if you are hurry for that, we can arrange and meet your shipping date.
