Pn16 Sdr11 HDPE Pipe Fittings Electrofusion Tee Pipeline

Pn16 Sdr11 HDPE Pipe Fittings Electrofusion Tee Pipeline
Pn16 Sdr11 HDPE Pipe Fittings Electrofusion Tee Pipeline Pn16 Sdr11 HDPE Pipe Fittings Electrofusion Tee Pipeline

Large Image :  Pn16 Sdr11 HDPE Pipe Fittings Electrofusion Tee Pipeline

Product Details:
Place of Origin: China
Brand Name: HDPE electrofusion tee
Certification: ISO9001
Model Number: LJ-PF528
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: Negotiation
Packaging Details: Export standard packaging
Delivery Time: Depends on the quantity of goods
Payment Terms: L/C, T/T
Supply Ability: Annual output 50000 tons

Pn16 Sdr11 HDPE Pipe Fittings Electrofusion Tee Pipeline

Description
Technics: Electrofusion Type: Tee
Size: 1/8"~6" Standard: ANSI,ASME,DIN,JIS
Application: Pipeline,Oil Packing: Carton And Pallet
Highlight:

HDPE Pipe Electrofusion Tee

,

Pn16 Pipeline Electrofusion Tee

,

HDPE Tee Fittings Sdr11

PE100 sdr11 pn16 hdpe pipe fittings HDPE electrofusion tee

Description


HDPE electrofusion tee has high bearing strength and creep resistance.

It has more rigidity and impact resistance than ordinary pure plastic pipe, and is similar to the low linear expansion coefficient of steel pipe.

The inner wall is smooth without scaling, the flow friction resistance is small, the water conveyance capacity is large, and the energy consumption is reduced.

Good corrosion resistance. The inner and outer layer of the pipe is plastic layer, which has the same excellent corrosion resistance as the plastic pipe.

Specification


Material: HDPE, Polyethylene
Product name: HDPE Pipe fittings
Size: DN20mm-800mm, or as requested
Features: Convenient transportation, easy to intall
Pressure: SDR9, SDR11, SDR17, or as customized

Technical data sheet


PE100 sdr11 pn16 hdpe pipe fittings HDPE electrofusion tee​​ technical data sheet as below:

Specification SDR
Series
Inner Diameter of Main End Dn1 Outer Diameter of Branch End Dn2 Socket Depth L2 Length of Branch End L3 Total Length
L
Dn50 11 50 50 50 56 151
Dn63 11 63 63 55 64 176
Dn75 11 75 75 60 71 199
Dn90 11 90 90 65 80 224
Dn110 11 110 110 75 83 264
Dn160 11 160 160 90 99 345
Dn200 11 200 200 105 113 416
Dn250 11 250 250 115 131 487
Dn315 11 315 315 130 151 588

Characteristic


HDPE electrofusion tee is light in weight and convenient for loading, unloading and transportation.

Electrofusion connection is adopted, which is fast and convenient for construction, and the joint does not leak.

Because it is composed of steel and plastic, it overcomes the phenomenon of rapid stress cracking of plastic pipes.

It has good wear resistance, and its service life is 50 years under normal use.

Application


1. HDPE electrofusion tee can be used in Municipal Engineering: urban building water supply and drinking water transmission;

2. chemical industry: corrosive liquid pipelines for acid, alkali, salt manufacturing, textile, printing and dyeing industries;

3. oil and gas fields: oil and water long-distance pipeline transportation;

4. agricultural irrigation pipe.

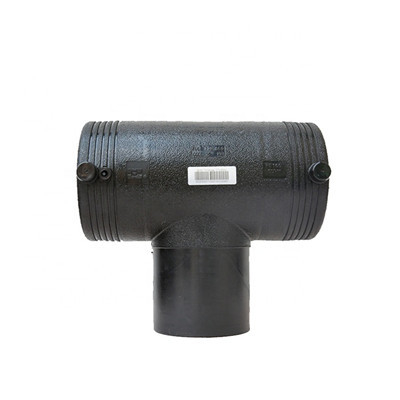

Product picture


Pn16 Sdr11 HDPE Pipe Fittings Electrofusion Tee Pipeline 0
