Product Details:
|
| Material: | PVC | Connection: | Welding |
|---|---|---|---|
| Type: | Elbow | Size: | 1/8"~6" |
| Standard: | ANSI,ASME,DIN | Application: | Gas/oil/water |
| High Light: | Welding HDPE Electrofusion Elbow,HDPE Electrofusion Elbow PE100,PVC 90 Degree Elbow |
||

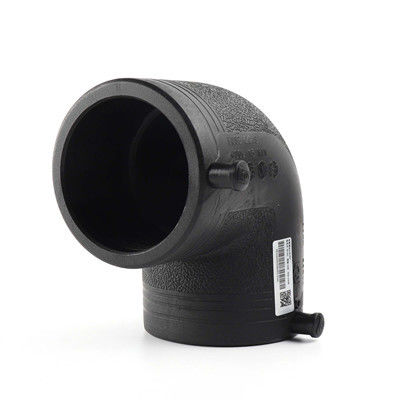

HDPE electrofusion elbow is to apply some method to place the electric heating wire cloth on the inner surface of the pipe fitting.
During construction, after the pipe is matched with the pipe fitting, the electric heating wire in the elbow is energized and heated with a special heating control power supply to melt and combine the contact surface between the pipe fitting and the pipe.
After cooling, the pipe fittings and pipes are firmly and hermetically combined.
At present, polyethylene elbow is widely used in electric welding, which has the best welding effect.
Thickness:SDR11
Material::PE80 or PE100
Specification:25mm~315mm
Application:water supply, gas supply, repairing
Standard:GB/T 13663-2000 ISO4427 ISO9001
ISO EN12201 PE100 hdpe fittings HDPE electrofusion elbow technical data sheet as below:
| Nominal Pipe Sized | Base Norm | L | L1 | Unit Weight in lbs. | PSI |
| ¾” | IPS | ||||
| 1” | CTS | 4.57 | 1.61 | 0.18 | 240 |
| 1” | IPS | 4.57 | 1.61 | 0.18 | 240 |
| 1” | IPS | 5.47 | 1.85 | 0.29 | 240 |
| 1” | IPS | 6.54 | 2.01 | 0.51 | 240 |
| 2" | IPS | 7.76 | 2.28 | 0.88 | 240 |
| 3” | IPS | 9.53 | 2.83 | 2.07 | 240 |
| 4" | IPS | 11.89 | 3.23 | 5.71 | 240 |
| 6” | IPS | 14.17 | 3.94 | 8.64 | 220 |
| 8" | IPS | 25.47 | 4.13 | 28.80 | 220 |
HDPE electrofusion elbow. During installation, the inner wall and welding area of the elbow shall be free of organic matter or pollutants.
At the same time, in the process of welding, a certain distance needs to be maintained to avoid unnecessary injury.
In the harsh environment with large temperature difference between day and night, it is necessary to select centralizer and other to fix the pipe in time, so as not to affect the final welding quality due to the principle of thermal expansion and cold contraction.
HDPE electrofusion elbow is widely used in gas transmission, water supply, sewage, agricultural irrigation, oil field, mining, chemical industry, post and telecommunications and other fields.
