Product Details:
|
| Material: | PVC | Technics: | Electrofusion |
|---|---|---|---|
| Type: | Tee | Size: | 1/8"~6" |
| Application: | Gas/oil/water | Packing: | Carton And Pallet |
| Highlight: | Pipe HDPE Electrofusion Tee,HDPE Electrofusion Tee Sdr11,Engineering Electrofusion Tee |
||

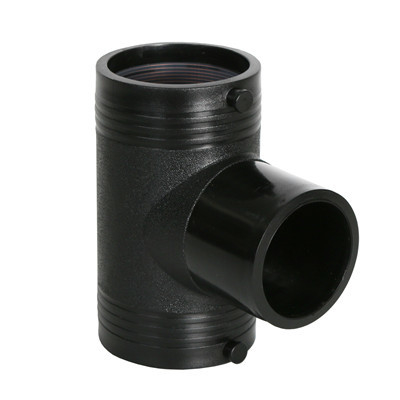

HDPE electrofusion tee is sheathed on the pipe when it is used, and then the special welding machine is used to energize the pipe fitting according to the specified parameters (time, voltage, etc.).
This can melt the inner surface of the pipe fitting embedded with the electric heating wire and the outer surface of the pipe insertion end, and the pipe and pipe fitting will be fused together after cooling.
The utility model has the advantages of convenient and rapid connection, good joint quality and small interference from external factors, and is generally suitable for the connection of large-diameter pipelines.
Material: PE100,PE80
Color: Grey or blue color
Standard: CNS/JIS/DIN/BS/ANSI/NPT/BSPT
Packing: Carton, Polybag, Color Box or Customized
Use: Agriculture irrigation/Mariculture/Swimming pool/Engineering
DN40-DN280 sdr11 sdr17 PE fittings HDPE electrofusion tee technical data sheet as below:
| DN | L1 | L2 | L3 | L |
| dn40 | 49 | 50 | 80 | 162 |
| dn50 | 75 | 75 | 113 | 230 |
| dn63 | 75 | 75 | 117 | 240 |
| dn75 | 70 | 68 | 118 | 243 |
| dn90 | 79 | 79 | 140 | 280 |
| dn110 | 82 | 82 | 150 | 300 |
| dn125 | 87 | 87 | 181 | 320 |
| dn140 | 90 | 92 | 182 | 343 |
| dn160 | 90 | 98 | 195 | 358 |
| dn160 | 98 | 98 | 192 | 395 |
| dn180 | 90 | 105 | 213 | 370 |
| dn200 | 97 | 112 | 244 | 440 |
| dn200 | 109 | 112 | 228 | 448 |
| dn225 | 120 | 120 | 247 | 502 |
| dn250 | 114 | 129 | 263 | 500 |
| dn280 | 139 | 139 | 255 | 490 |
HDPE electrofusion tee is designed according to the service life of 50 years.
It has good sanitation, solves the problem of secondary pollution of drinking water, and conforms to the provisions of gb/t17219-1998 safety assessment.
The inner wall is smooth and the flow resistance is small. Good flexibility, more suitable for underground laying.
The construction is convenient, the welding process is simple, and the comprehensive cost of the project is low.
It is easy to distinguish. The color of pipes and fittings for water supply is black, and the color of fittings for gas is yellow.
HDPE electrofusion tee is a new type of pipe fitting with excellent performance, which is widely used in oil fields, power plants, chemical enterprises, water supply companies, municipal gas, seawater utilization pipelines and other fields.
