Product Details:
|
| Material: | PE | Technics: | Electrofusion |
|---|---|---|---|
| Shape: | Equal | Size: | Customized Size |
| Standard: | ANSI,ASME,DIN | Application: | Gas/oil/water |
| High Light: | Equal Shape HDPE Electrofusion Elbow,SDR11 Electrofusion Transition Elbow,HDPE Pipe 90 Degree Elbow |
||

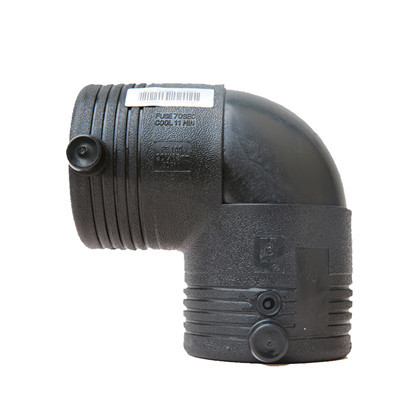

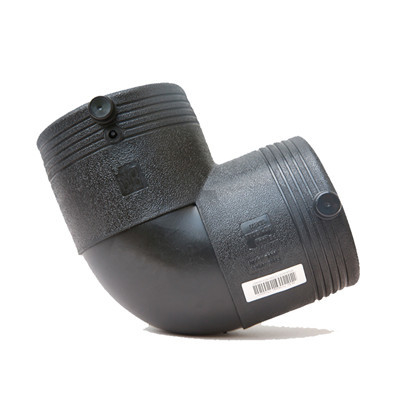

HDPE electrofusion elbow is less used in engineering applications than hot-melt pipe fittings.
However, electrofusion pipe fittings play an important and irreplaceable role in engineering and maintenance. Especially in construction, electrofusion pipe fittings are less affected by external environment and human factors, so they are more reliable and popular with users.
In particular, electric melting pipe fittings are increasingly used in gas pipe projects.
Products name: Electrofusion Fittings
PN: PN16
SDR: SDR11
Material Brand: 3490/3440
Sizes Available: 20-630mm
Executive Standard: EN 12201-3:2011,ISO
20-400 Specification SDR11 Thickness HDPE electrofusion elbow technical data sheet as below:
| Items NO. | Spec. | L | A | D | Number/Box |
| E45E50 | DN50 | 125 | 46 | 50 | 100 |
| E45E63 | DN63 | 139 | 52 | 63 | 70 |
| E45E90 | DN90 | 163 | 57 | 90 | 30 |
| E45E110 | DN110 | 191 | 65 | 110 | 15 |
| E45E160 | DN160 | 249 | 80 | 160 | 8 |
| E45E200 | DN200 | 296 | 94 | 200 | 4 |
| E45E250 | DN250 | 378 | 103 | 250 | 2 |
| E45E315 | DN315 | 461 | 123 | 4.7 | 1 |
HDPE electrofusion elbow is corrosion-resistant and has long service life;
There is no leakage at the joint, which essentially ensures the identity between the interface material and structure of the PE pipe system and the pipe itself, and realizes the integration of the joint and the pipe;
It can effectively resist underground movement and end load without joint leakage.
HDPE electrofusion elbow has unique corrosion resistance and can be used for the transportation and discharge of various acid, alkali and salt in the field of food and chemical industry.
For example: material and liquid transmission pipelines for chemical, chemical fiber, food, forestry, printing and dyeing, pharmaceutical, light industry, papermaking and other industries.
