Product Details:
|
| Material: | HDPE | Shape: | Equal |
|---|---|---|---|
| Size: | DN10-200 | Standard: | ANSI,ASME,DIN |
| Application: | Chemical,Gas/oil/water | Packing: | Carton And Pallet |
| High Light: | DN20 HDPE 90 Degree Elbow,DN100 HDPE 90 Degree Elbow,DN20 elbow 90 hdpe |
||
HDPE elbow is extruded with PE100 high density polyethylene as raw material, which replaces the traditional elbow and is widely used in the field of water supply.
HDPE elbow has the characteristics of good flexibility, strong corrosion resistance, light weight and excellent impact resistance. The system is safe and reliable with low construction cost. It has developed rapidly in engineering application.
Size:DN50-DN630mm
Feature:corrosion resistant
Working condition:-20℃ to 40℃
Certification:ISO9001:2000/ISO14001:2004

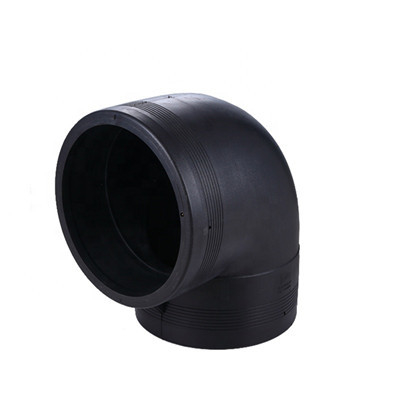

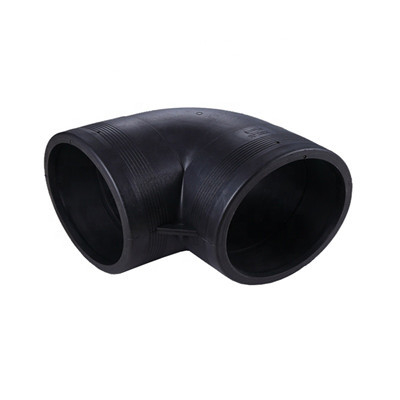

DN20-100 HDPE 90 degree elbow for water supply HDPE elbow technical data sheet as below:
| Chinese standard DIN |
American standard ANSI |
British Standard BS |
Japanese standard JIS |
||||
| Outer diameter | Inside Diameter DN | Specification Size | Outer diameter | Specification Size | Outer diameter | Specification Size | Outer diameter |
| 20mm | 15mm | 1/2" | 21.44mm | 1/2 | 21.35mm | 16A | 22mm |
| 25mm | 20mm | 3/4" | 26.77mm | 3/4" | 26.75mm | 20A | 26mm |
| 32mm | 25mm | 1" | 33.53mm | 1" | 33.55mm | 25A | 32mm |
| 40mm | 32mm | 1+1/4" | 42.29mm | 1+1/4" | 42.25mm | 30A | 38mm |
| 50mm | 40mm | 1+1/2" | 48.41 mm | 1+1/2" | 48.25mm | 40A | 48mm |
| 63 mm | 50m m | 2 | 60.47mm | 2" | 60.35mm | 50A | 60mm |
| 75mm | 65m m | 2+1/2" | 73.2mm | 2+1/2" | 75.3mm | 65A | 76mm |
| 90mm | 80mm | 3" | 89.1mm | 3" | 88.9mm | 75A | 89mm |
| 110mm | 100mm | 4" | 114.53mm | 4" | 114.3mm | 100A | 114mm |
1. High strength, excellent environmental stress cracking resistance and good creep resistance;
2. Good toughness, strong adaptability to uneven and misplaced foundation, and can resist harsh environments such as earthquake and typhoon;
3. Good weather resistance and long-term thermal stability;
4. Corrosion resistance, no anti-corrosion treatment, long service life;
5. The inner wall is smooth, the water flow resistance is small, the circulation capacity is large, and the construction cost is saved;
6. Good wear resistance and wear resistance;
7. It has good low-temperature impact resistance and can affect safety in the temperature range of - 20 ~ 40 ℃.
HDPE elbow is mainly used for water supply system of municipal engineering, indoor water supply system of buildings, industrial water pipes in gardens, irrigation and other fields. It should be noted that HDPE elbow cannot be used for hot water pipeline.
