Product Details:
|
| Size: | 1/2"-48"(DN15-DN1200) | Thickness: | 2mm-50mm |
|---|---|---|---|
| Working Pressure: | 1.6Mpa,16-31.5MPa | Standard: | DIN,JIS,ANSI,ASME,GB |
| Usage: | Oil Gas Water Industrial | Connection: | Weld |
| Highlight: | DN1200 Carbon Steel Pipe Fittings,ASTM A234 Carbon Steel Tee,DN15 Carbon Steel Tee |
||

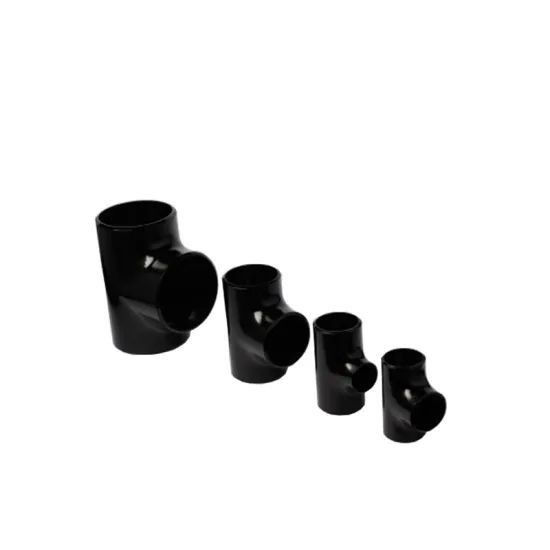

Carbon steel tee is a kind of pipe fittings. The carbon steel tee has three openings, one inlet and two outlets; Or two imports and one export. As a kind of chemical pipe fittings, carbon steel tee is mainly used to change the flow direction at the confluence of three identical or different pipelines.
Carbon Steel Pipe Fittings ASTM A234 carbon steel tee technical data sheet as below:
| Nominal Diameter | Outside Diameter | Center to End | |||||
| D1 | D2 | ||||||
| DN | NPS | Series A | Series B | Series A | Series B | C | M |
| 15x15x15 | 1/2x1/2x1/2 | 21.3 | 18 | 21.3 | 18 | 25 | 25 |
| 15x15x10 | 1/2x1/2x3/8 | 21.3 | 18 | 17.3 | 14 | 25 | 25 |
| 15x15x8 | 1/2x1/2x1/4 | 21.3 | 18 | 13.7 | 10 | 25 | 25 |
| 20x20x20 | 3/4x3/4x3/4 | 26.9 | 25 | 26.9 | 25 | 29 | 29 |
| 20x20x15 | 3/4x3/4x1/2 | 26.9 | 25 | 21.3 | 18 | 29 | 29 |
| 20x20x10 | 3/4x3/4x3/8 | 26.9 | 25 | 17.3 | 14 | 29 | 29 |
| 25x25x25 | 1x1x1 | 33.7 | 32 | 33.7 | 32 | 38 | 38 |
| 25x25x20 | 1x1x3/4 | 33.7 | 32 | 26.9 | 25 | 38 | 38 |
| 25x25x15 | 1x1x1/2 | 33.7 | 32 | 21.3 | 18 | 38 | 38 |
| 32x32x32 | 1.1/4x1.1/4x1.1/4 | 42.4 | 38 | 42.4 | 38 | 48 | 48 |
| 32x32x25 | 1.1/4x1.1/4x1 | 42.4 | 38 | 33.7 | 32 | 48 | 48 |
| 32x32x20 | 1.1/4x1.1/4x3/4 | 42.4 | 38 | 26.9 | 25 | 48 | 48 |
| 32x32x15 | 1.1/4x1.1/4x1/2 | 42.4 | 38 | 21.3 | 18 | 48 | 48 |
| 40x40x40 | 1.1/2x1.1/2x1.1/2 | 48.3 | 45 | 48.3 | 45 | 57 | 57 |
Working pressure:1.6Mpa,16-31.5MPa
Size:1/2"-48"(DN15-DN1200)
Thickness:2mm-50mm
Carbon steel tee is to flatten the tube blank larger than the diameter of the tee to the size of the diameter of the tee, and open a hole in the part of the stretching branch pipe; The tube blank is heated and put into the forming die, and a die for drawing branch pipe is put into the tube blank; Under the action of pressure, the billet is compressed radially, flows to the branch pipe, and forms the branch pipe under the drawing of the die.
| Porduct Name | Pipe tee |
| Size | 1/2''-24'' seamless, 26-110 welded |
| Standard | ANSI B16.9.MSS SP 43, DIN2615, EN10253, GOST17376, JIS B2313, MSS SP 75, etc. |
| Wall thickness | STD, XS, XXS, SCH20, SCH30, SCH40, SCH60, SCH80, SCH160, XXS and etc. |
| Type | Equal/Straight tee, reduced tee, Y tee Jateral tee, Barred tee, split tee, tee cross |
| End | bevel end/BE/buttweld |
a. Plastic bubble bag package b.Wove bag package c.Pallet d. Customized.
Our Steel flat factory have high ability for production, the delivery time is 30 days for small quantity, or if you are hurry for that, we can arrange and meet your shipping date.
