Product Details:
|
| Material: | Carbon Steel | Connection: | Welding |
|---|---|---|---|
| Size: | 1/2''-72',1/2"-4 8" | Application: | Connect Pipes |
| Standard: | DIN,JIS,ANSI,ASME,GB | Thickness: | 2mm-50mm |
| High Light: | STD Welding 90 Degree Elbow,Carbon Steel 90 Degree Elbow Pipe,ASME 90 Degree Elbow Fitting |
||

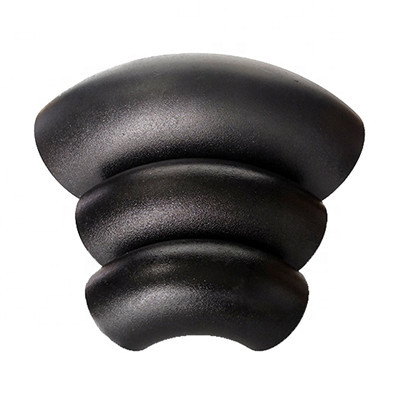

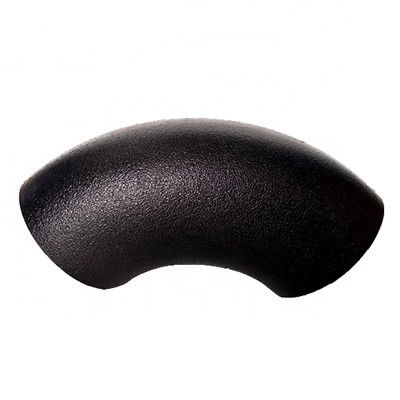

Carbon steel elbow is a pipe fitting connecting two pipes with different pipe diameters for steering. The production process is to cut a standard elbow blank into a V-shaped elbow, and then apply pressure. With the power of conventional or special stamping equipment, the elbow blank is directly subjected to deformation force and deformed in the die, so as to obtain an elbow with certain shape, size and performance.
Size: 1/2"-24" ,DN15-DN600
Standard: ASME,ANSI B16.9
Type: 30,45,60,90,180 degree
Material: ASTM A234WPB, A234WPC
Thickness: STD SCH40, XS, SCH80, XXS
ASME B16.9 A234 SCH 40 STD 90 Degree 1.5D Carbon steel elbow technical data sheet as below:
| Nominal diameter | outside diameter | Dimension from center to end face | Center to center dimension | Back to end dimension | |||||
| 45° | 90° | 180° | 180° | ||||||
| Series A | Series B | Short radius | Long radius | Short radius | Long radius | Short radius | Long radius | Short radius | |
| 15 | 21.3 | 18 | 16 | 38 | - | 76 | - | 48 | - |
| 20 | 26.9 | 25 | 16 | 38 | - | 76 | - | 51 | - |
| 25 | 33.7 | 32 | 16 | 38 | 25 | 76 | 51 | 56 | 41 |
| 32 | 42.4 | 38 | 20 | 48 | 32 | 95 | 64 | 70 | 52 |
| 40 | 48.3 | 45 | 24 | 57 | 38 | 114 | 76 | 83 | 81 |
| 50 | 60.3 | 57 | 32 | 76 | 51 | 152 | 112 | 106 | 100 |
| 65 | 76.1 | 76 | 40 | 95 | 64 | 191 | 127 | 132 | 121 |
| 80 | 88.9 | 89 | 47 | 114 | 76 | 229 | 152 | 159 | 159 |
| 100 | 114.3 | 108 | 63 | 152 | 112 | 305 | 203 | 210 | 197 |
| 125 | 139.7 | 133 | 79 | 190 | 127 | 381 | 254 | 262 | 237 |
Carbon steel elbow is a metal pipe fitting that changes the direction of pipeline on carbon steel pipeline. According to the angle, there are three commonly used elbows: 45 ° and 90 ° 180 °, and other abnormal angle elbows such as 60 ° are also included according to the needs of the project. The methods of connection with the pipeline include: direct welding, flange connection, hot-melt connection, electric fusion connection, threaded connection, socket connection, etc. According to the production process, it can be divided into: welding elbow, stamping elbow, push elbow, casting elbow, etc.
Carbon steel elbow is widely used in chemical industry, construction, water supply, drainage, petroleum, light and light industry, refrigeration, sanitation, plumbing, fire protection, electric power, aerospace, shipbuilding and other basic projects.
