ANSI B16.9 WPB Carbon Steel Pipe Tee For Pipeline Connection

ANSI B16.9 WPB Carbon Steel Pipe Tee For Pipeline Connection
ANSI B16.9 WPB Carbon Steel Pipe Tee For Pipeline Connection ANSI B16.9 WPB Carbon Steel Pipe Tee For Pipeline Connection

Large Image :  ANSI B16.9 WPB Carbon Steel Pipe Tee For Pipeline Connection

Product Details:
Place of Origin: China
Brand Name: Carbon steel tee
Certification: ISO9001
Model Number: LJ-PF501
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: Negotiation
Packaging Details: Export standard packaging
Delivery Time: Depends on the quantity of goods
Payment Terms: L/C, T/T
Supply Ability: Annual output 50000 tons

ANSI B16.9 WPB Carbon Steel Pipe Tee For Pipeline Connection

Description
Material: Carbon Steel Shape: Equal
Connection: Welding Size: 1/2"-4 8",1/2' ~ 6'
Standard: DIN,JIS,ANSI,ASME,GB Usage: Pipe-line Connection
High Light:

WPB Carbon Steel Pipe Tee

,

Welding Carbon Steel Reducing Tee

,

Carbon Steel Equal Tee Pipeline Connection

High quality 3/4" ANSI B16.9 A234 WPB Carbon steel tee

Description


Carbon steel tee is generally used for regulating valve device, pipeline drainage, etc. Concentric tube is conducive to fluid flow, and changing the diameter has less interference on the fluid flow pattern.

The carbon steel tee adopts concentric pipes with different diameters for gas and vertical flow liquid pipes. Since one side of pipes with different diameters is flat, which is conducive to discharging or discharging liquid and facilitating start-up and maintenance, the liquid pipes of horizontal devices are generally used for pipes with different diameters.

Specification




Size: 1/2" up to 110"
Connection: Welding
Certification: ISO, SGS, API
Material: Carbon Steel Pipe Fittings
Physical Property: ensile strength>=350Mpa,Elongation>=10%

Technical data sheet


High quality 3/4" ANSI B16.9 A234 WPB Carbon steel tee technical data sheet as below:

Nominal diameter outside diameter Dimension from center to end face Center to center dimension Back to end dimension
45° 90° 180° 180°
Series A Series B Short radius Long radius Short radius Long radius Short radius Long radius Short radius
15 21.3 18 16 38 - 76 - 48 -
20 26.9 25 16 38 - 76 - 51 -
25 33.7 32 16 38 25 76 51 56 41
32 42.4 38 20 48 32 95 64 70 52
40 48.3 45 24 57 38 114 76 83 81
50 60.3 57 32 76 51 152 112 106 100
65 76.1 76 40 95 64 191 127 132 121
80 88.9 89 47 114 76 229 152 159 159

Characteristic


Carbon steel tee is an elbow made of hot pressed or forged steel. Its connection mode is to directly weld tee fittings with steel pipes. The main manufacturing technical indexes of butt welded tee fittings are GB / T 12459, GB / T 13401, asmeb 16.9, sh 3408, sh3409, Hg / t21635, Hg / t21631 and SY / t0510.

Application


Carbon steel tee is widely used in petroleum, aerospace, pharmaceutical, chemical, metallurgy, electric power, engineering supporting and other industrial pipelines.

Product picture

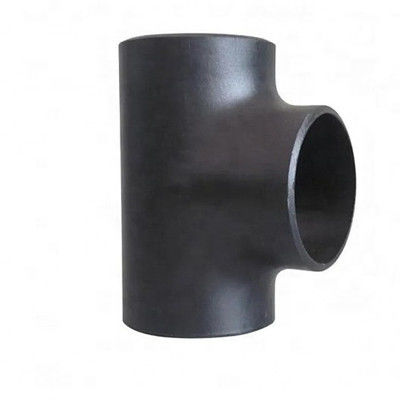

ANSI B16.9 WPB Carbon Steel Pipe Tee For Pipeline Connection 0
