Product Details:
|
| Material: | Carbon Steel | Size: | 1/2"-48"(DN15-DN1200) |
|---|---|---|---|
| Surface Treatment: | Hot Galvanized/Black | Application: | Connect Pipes |
| Standard: | DIN,JIS,ANSI,ASME,GB | Thickness: | 2mm-50mm |
| Highlight: | ASME B16.9 Pipe Fittings tee,Carbon Steel Pipe Fittings Tee,Hot Galvanized Carbon Steel Equal Tee |
||

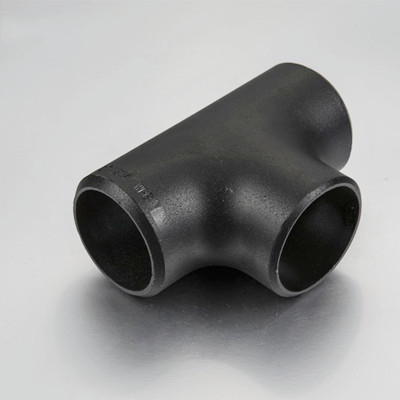

Carbon steel tee is a kind of pipe fittings. There are generally two categories. One is equal diameter tee, with the same diameter at both ends, and the branch pipe with different diameter from the other two is called reducing tee, and the other is reducing tee.
The representation of carbon steel tee is as follows: for example, "T3" tee means equal diameter tee with an outer diameter of 3 inches, "T4" × four × 3.5 "refers to a reducing tee with the same diameter of four inches and the reducing diameter of 3.5 inches.
Connection: Butt Weld
Material: Carbon Steel - ASTM A234 WPB
Technics: Made From Steel Pipe or Steel Plate
Wall Thickness: STD, SCH40, SCH60, XS, SCH80, XXS
Standard: ANSI/ASME B16.9 DIN2605, 2615, 2616, 2617
Size: 1/2" - 24" (seamless) & 4" - 72" (seam); DN15 - 1200
ASME B16.9 SCH40 DN50 ASTM A234 WPB Carbon steel tee technical data sheet as below:
| Nominal Diameter | Depth of Socket | Dimension of Socket | Wall Thickness | Center to Bottom of Socket | |||||
| Cmin | |||||||||
| DN | NPS | Jmin | d1 | 3000LB Sch80 | 6000LB Schl60 | 9000LB xxs | 3000LB Sch80 | 6000LB Schl60 | 9000LB XXS |
| 6 | 1/8 | 10 | 10.7 | 32 | 3.5 | - | 11 | 11 | - |
| 8 | 1/4 | 10 | 14.1 | 33 | 4.0 | - | 11 | 15 | - |
| 10 | 3/8 | 10 | 17.5 | 3.5 | 4.4 | - | 13 | 15 | - |
| 15 | 1/2 | 10 | 21.8 | 4.1 | 5.2 | 8.2 | 16 | 19 | 25 |
| 20 | 3/4 | 13 | 27.4 | 43 | 6.1 | 8.6 | 19 | 22 | 28 |
| 25 | 1 | 13 | 34.2 | 5.0 | 7.0 | 10.0 | 22 | 27 | 32 |
| 32 | 1.1/4 | 13 | 42.9 | 53 | 7.0 | 10.6 | 27 | 32 | 35 |
| 40 | 1.1/2 | 13 | 48.3 | 5.6 | 7.8 | 11.2 | 32 | 38 | 38 |
| 50 | 2 | 13 | 61.1 | 6.1 | 9.5 | 12.2 | 38 | 41 | 41 |
Carbon steel tee, The parameter standard is generally: 10# 20# A3 Q235A 20g 20g 16Mn ASTM a234 ASTM A105 ASTM A403, etc.
The outer diameter ranges from 2.5 ″ - 60 ″, from 26 ″ - 60 ″ to welded tee. The wall thickness is 28-60mm.
The pressure grades are sch5s, sch10s, sch10, sch20, sch30, sch40s, STD, sch40, sch60, sch80s and XS; Sch80,Sch100,Sch120,Sch140,Sch160,XXS.
Carbon steel tee is widely used in major power plants at home and abroad, chemical industry, light industry, metallurgy, urban construction, shipbuilding, natural gas engineering, food manufacturing, papermaking, medicine and other industries.
