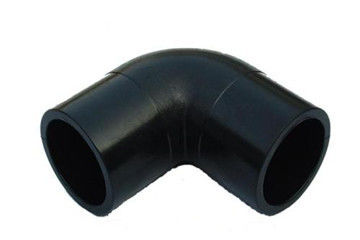

Product Details:
|
| Product Name: | HDPE Elbow | Standard: | GB / ANSI /JIS / DIN |
|---|---|---|---|
| Size: | 1/8"~6" | Material: | Plastic |
| Usage: | Oil Gas Water Industrial | Packing: | Carton And Pallet |
| Highlight: | Elbow HDPE Pipe Fittings,1/8" HDPE Pipe Elbow,Anti Impact HDPE Pipe Fittings |
||
HDPE elbow silent building drainage pipe fittings contain anti oxidant and anti ultraviolet (UV) additives, which are extruded by extruder. The product has the advantages of anti-oxidation, high strength, good wear resistance, excellent corrosion resistance, impact resistance, low temperature resistance, self-lubricating and low flow resistance. The pipe fittings are filled with grooves, and the pipe joints are scraped by a special grooving machine on site. Then, the "C" EPDM seal ring is inserted into the ports of the two components connected, and the special clamp is used to connect and tighten the two bolts.
HDPE Pipe Fittings HDPE elbow technical data sheet as below:
| Dimension | D | L | Z |
| mm | mm | mm | |
| 20 | 31 | 21 | 7 |
| 25 | 36 | 24 | 8 |
| 32 | 44 | 28 | 10 |
| 40 | 53 | 33 | 13 |
| 50 | 64 | 36 | 13 |
| 63 | 82 | 43 | 16 |
| 75 | 93 | 51 | 20 |
| 90 | 114 | 58 | 23 |
| 110 | 134 | 68 | 27 |
Standard:GB / ANSI /JIS / DIN
Size:1/8"~6"
Usage:Oil Gas Water Industrial
HDPE elbow adopts mechanical assembly, easy installation, not affected by the weather and environment, flat butt joint, convenient disassembly and assembly, maintenance does not need to damage the system, can be reused. The product can withstand positive pressure of 1.0MPa, negative pressure > 0.1MPa (23 ℃, 60min); the system can withstand the deviation angle within 15 ° with shock resistance, shaking resistance and no water leakage; the C-shaped rubber rupture ring is made of ethylene propylene diene monomer (EPDM), aging resistance and corrosion resistance.
HDPE elbow material is thermoplastic material, non-toxic, tasteless, recyclable, in line with environmental protection policy, energy saving and emission reduction, plastic instead of steel, green environmental protection. The wear resistance of the pipe fittings is 4 times that of the cast steel pipe. The pipeline system has longer service life and better economy. The quality of the pipeline system is less than 1 / 6 of that of cast iron pipe. The connection process is simple and reliable, and no anti-corrosion treatment is required. The construction speed is fast and the labor cost is greatly reduced.
a. Plastic bubble bag package b.Wove bag package c.Pallet d. Customized.
Our Steel flat factory have high ability for production, the delivery time is 35 days for small quantity, or if you are hurry for that, we can arrange and meet your shipping date.
