Product Details:
|

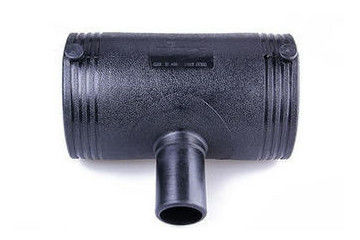

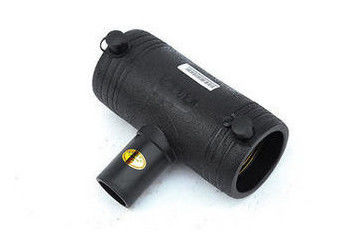

| Product Name:: | HDPE Electrofusion Reducing Tee | Material：: | PE/HDPE |
|---|---|---|---|
| Specifications:: | DN160mm～DN630mm | Color:: | Black |
| Head Code: | Round | Application: | Pipeline,Gas/oil/water |
| High Light: | HDPE Electrofusion Reducer,Electrofusion tee Reducer,black Electrofusion Reducer |
||
HDPE is an inert material. Except for a few strong oxidants, it can resist the corrosion of various chemical media, without electrochemical corrosion and without anti-corrosion coating.Compared with rubber sealing joint or mechanical joint, there is no risk of leakage due to joint distortion.
HDPE reducing tee is a kind of pipe fitting with high toughness. Its elongation at break is more than 350%.It has very strong adaptability to uneven settlement of pipe foundation and is a kind of pipe with excellent seismic performance.
Material:PE/HDPE
Range: DN160mm～DN630mm
Color: black
HDPE electrofusion reducing tee has a long service life. Under normal conditions, the minimum service life is 50 years.It has good sanitation, no scaling, no bacteria, solves the secondary pollution of drinking water, and conforms to the safety evaluation regulations of GB / t17219.
It can resist the corrosion of various chemical media without electrochemical corrosion.The inner wall is smooth, the coefficient of friction is very low, the passing ability of medium is improved correspondingly, and it has excellent wear resistance.
HDPE electrofusion reducing tee has good flexibility, high impact strength, strong shock resistance and distortion resistance.The unique electric melting technology makes the interface strength higher than the pipe body, and ensures the safety and reliability of the interface.
HDPE electric melting reducing three pipe has the comprehensive advantages of safety, sanitation and convenient construction, and has become an ideal pipe for urban water supply.
This kind of TEE has a series of advantages, such as reliable connection, stable performance, easy construction, corrosion resistance, etc.
It has become the only choice of medium and low pressure natural gas transmission pipeline.
It also has unique chemical corrosion resistance, can be used for transportation or discharge of various acid and alkali salt solutions, with long service life, low cost and maintenance cost.
The wear resistance of HDPE tee is 4 times of that of steel tee, which can be widely used in transporting ore, power plant fly ash, river dredging mud, etc.
The old pipe fittings are replaced with low engineering cost and short construction time, which is especially suitable for pipeline re selection in the old urban area.
Landscaping requires a large number of water pipes and pipe fittings. HDPE reducing tee has low cost and is worth promoting.
It can also be widely used in other fields, such as electric power, communication sheath, farmland irrigation, siphon drainage, landfill, geothermal air conditioning, deep-sea aquaculture, buried fire-fighting pipeline, etc.
Chemical Electrofusion Reducing Tee technical data sheet as below:
| Specifications | L/mm | A/mm | B/mm | <Pd/mm | Order No. | ||
| series | For gas | For water supply | |||||
| Dn25x20x20 | 97 | 41.4 | 41 | 4.7 | SDR11 | G2T25/20 | W2T25/20 |
| Dn32x20x32 | 106 | 39 | 41 | 4.7 | SDR11 | G2T32/20 | W2T32/20 |
| Dn32x25x32 | 106 | 39 | 41 | 4.7 | SDR11 | G2T32/25 | W2T32/25 |
| Dn40x25x40 | 122 | 44 | 41 | 4.7 | SDR11 | G2T40/25 | W2T40/25 |
| Dn40x32x40 | 122 | 44 | 44 | 4.7 | SDR11 | G2T40/32 | W2T40/32 |
| Dn50x32x50 | 142 | 50 | 44 | 4.7 | SDR11 | G2T50/32 | W2T50/32 |
| Dn50x40x50 | 142 | 50 | 49 | 4.7 | SDR11 | G2T50/40 | W2T50/40 |
| Dn63x20x63 | 130 | 56 | 41 | 4.7 | SDR11 | G2T63/20 | W2T63/20 |
| Dn63x25x63 | 130 | 56 | 41 | 4.7 | SDR11 | G2T63/25 | W2T63/25 |
a. Plastic bubble bag package b.Wove bag package c.Pallet d. Customized.
Our Steel flat factory have high ability for production, the delivery time is 45days for small quantity, or if you are hurry for that, we can arrange and meet your shipping date.
