Product Details:
|
| Product Name:: | HDPE Electrofusion Equal Tee | Main Parameter:: | Capacitance |
|---|---|---|---|
| Advantage：: | High Pressure Resistance | Drift Diameter：: | DN15-DN600 |
| Surface Treatment: | Mirror Polished | Packing: | Carton And Pallet |
| High Light: | DN600 electrofusion equal tee,black electrofusion equal tee,HDPE electrofusion equal tee |
||

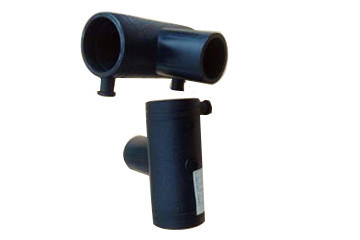

HDPE electric melting tee is a kind of tee pipe which can be melted to connect through the temperature generated by current.Capacitance is the main parameter of the three-way. In some low-voltage circuits, the voltage requirement is not high, just mark the capacitance.
The tee of HDPE pipeline system is mainly divided into hot melt tee and electric melt tee.Because of the price, the amount of hot melt tee is more than that of electric melt tee.But the electric fusion tee has its important and irreplaceable role in engineering and maintenance.
Especially in the construction, the influence of external environment and human factors is less, so the reliability is better and more popular with users.Especially in the gas pipe engineering, electric fusion tee is more and more used.
At the same time, due to the complex production technology, high cost and high selling price of the tee, the profit margin of the pipe factory is also high.
Main parameter: Capacitance
Advantage:High pressure resistance
Drift diameter:DN15-DN600
During installation, it is strictly prohibited to contaminate the inner wall of the electrofusion tee and the pipe welding area with organic matters and other substances.During the installation of pipeline, the tee pipe fittings must be reinforced with buttress or fixed with support, and the pipeline compensation shall be properly done.
The pipes and pipe fittings must be buried below the frozen soil layer, and the pipes shall not be soaked by water during the installation and welding of the electrofusion tee.When the temperature is low, the welding tee must be well insulated.
When working in the environment with large temperature difference between day and night, the centralizer and other tools must be used to fix the pipes on both sides of the electrofusion tee, so as to avoid the influence of heat expansion and cold shrinkage on the welding quality.Pipes and fittings cannot be moved during cooling.
Elongation at break: it is one of the performances of good flexibility of pipes. Confirm whether the pipes retain the properties of raw materials.Weather resistance: confirm that the pipe retains the performance of the raw material, and ensure that the pipe still can meet the use requirements.
Slow crack growth resistance: confirm that the pipe fittings retain the slow crack growth resistance of the raw materials to ensure the basic load capacity and long-term service life of the pipe fittings.Thermal de qualitative: confirm that the original properties of raw materials are retained for the tee, and ensure that the tee can still meet the use requirements within the service life of construction and welding.
Melt mass flow rate: confirm that the original performance of the raw material is basically retained in the pipe, so as to ensure the reprocessing process and welding performance of the pipe.
External environment electrofusion equal tee technical data sheet as below:
| Nominal size | D1 | d1 | d2 | H | L | I |
| 20 | 26.56 | 20.30 | 20.00 | 27.04 | 54.08 | 16.74 |
| 25 | 32.38 | 25.30 | 25.00 | 33.10 | 66.20 | 19.11 |
| 32 | 41.49 | 32.30 | 32.00 | 39.60 | 79.20 | 22.35 |
| 40 | 48.69 | 40.30 | 40.00 | 48.98 | 97.90 | 26.23 |
| 50 | 61.05 | 50.00 | 50.00 | 58.68 | 117.37 | 32.04 |
| 63 | 76.19 | 63.30 | 63.00 | 71.29 | 142.58 | 37.61 |
| 75 | 87.62 | 75.40 | 75.00 | 84.15 | 168.31 | 44.16 |
| 90 | 106.99 | 90.50 | 90.00 | 96.30 | 192.60 | 51.09 |
| 110 | 129.46 | 110.60 | 110.00 | 118.52 | 237.05 | 61.48 |
| 140 | 162.19 | 140.60 | 140.00 | 146.68 | 293.35 | 75.82 |
| 160 | 185.50 | 160.80 | 160.00 | 174.80 | 350.00 | 86.00 |
| 200 | 228.50 | 200.80 | 200.00 | 214.00 | 426.00 | 107.00 |
| 225 | 259.60 | 226.00 | 225.00 | 223.40 | 464.00 | 118.50 |
| 250 | 286.50 | 251.24 | 249.86 | 265.00 | 528.00 | 130.00 |
| 280 | 315.40 | 281.00 | 280.00 | 295.30 | 577.00 | 146.00 |
| 315 | 357.50 | 316.00 | 315.00 | 339.00 | 675.00 | 164.00 |
a. Plastic bubble bag package b.Wove bag package c.Pallet d. Customized.
Our Steel flat factory have high ability for production, the delivery time is 45days for small quantity, or if you are hurry for that, we can arrange and meet your shipping date.
