ISO9001 Threaded Piston Cs Carbon Steel Pipe Fittings

ISO9001 Threaded Piston Cs Carbon Steel Pipe Fittings
ISO9001 Threaded Piston Cs Carbon Steel Pipe Fittings ISO9001 Threaded Piston Cs Carbon Steel Pipe Fittings

Large Image :  ISO9001 Threaded Piston Cs Carbon Steel Pipe Fittings

Product Details:
Place of Origin: China
Brand Name: Carbon steel threaded piston
Certification: ISO9001
Model Number: LJ-PF049
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: 1USD-100USD
Packaging Details: Export standard packaging
Delivery Time: Depends on the quantity of goods
Payment Terms: L/C, T/T
Supply Ability: Annual output 50000 tons

ISO9001 Threaded Piston Cs Carbon Steel Pipe Fittings

Description
Product Name:: Carbon Steel Threaded Piston Standard:: GB / ANSI /JIS / DIN
Work Environment:: High Temperature, High Pressure, High Speed Technology:: Forging
Material: Carbon Steel Technics: Pushing,welded
High Light:

ISO9001 threaded piston

,

cs threaded piston

Description

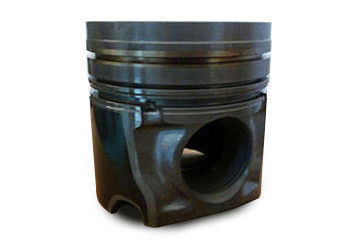

The piston can be divided into three parts: piston crown, piston head and piston skirt. The main function of the piston is to bear the combustion pressure in the cylinder and transmit this force to the crankshaft through the piston pin and connecting rod. The piston, cylinder head and cylinder wall form a combustion chamber. The piston top is a part of combustion chamber, so it is often made into different shapes. The piston top of gasoline engine mostly adopts flat top or concave top, so as to make the combustion chamber compact in structure, small in heat dissipation area and simple in manufacturing process. Crown piston is commonly used in two stroke gasoline engine. The piston crown of diesel engine is often made into various pits. The piston head is the part above the piston pin seat. The piston head is equipped with a piston ring to prevent high temperature and high pressure gas from entering the crankcase and oil from entering the combustion chamber.

ISO9001 Threaded Piston Cs Carbon Steel Pipe Fittings 0

Most of the heat absorbed by the top of the piston is also transmitted to the cylinder through the head of the piston, and then transmitted through the cooling medium. The piston head processes several grooves for installing piston rings. The number of piston rings depends on the requirements of sealing. It is related to the engine speed and cylinder pressure. All parts below the piston ring groove are called piston skirts. Its function is to guide the piston to and fro in the cylinder and bear the side pressure. When the engine is working, the piston will be bent and deformed due to the gas pressure in the cylinder.

After the piston is heated, the expansion of the piston pin is larger than that of other parts due to the large amount of metal in the piston pin.

The piston will also produce extrusion deformation under the action of side pressure. The comprehensive result of the above deformation makes the piston skirt section become the ellipse of the long axis in the direction of the piston pin.

ISO9001 Threaded Piston Cs Carbon Steel Pipe Fittings 1



Specification


Material: carbon steel

Surface treatment: anti-oil; anti-painting

Development history


1,  The first automobile engine piston in the world was made of cast iron.

2,  Aluminum alloy materials with its light weight, good thermal conductivity and low expansion coefficient were favored by automobile engine enterprises and began industrial manufacturing.

3,  With the rapid development of high horsepower automobile engine, especially the application of turbocharging and intercooling technology in heavy diesel engine.

4,  As well as the continuous improvement of the requirements of high compression ratio and low emission in large cylinder diameter, the traditional aluminum alloy piston material can not meet its use requirements.



ISO9001 Threaded Piston Cs Carbon Steel Pipe Fittings 2



5,  The first carbon steel piston was used in the single cylinder diesel engine of elspett company of Germany in 1955, and began to produce carbon steel piston in batch for caterpillar of the United States in 2000.

6,  At present, carbon steel piston has been widely used in high-performance medium and heavy-duty diesel engines of man, caterpillar, Cummins, Daimler, Volvo, Benz and other companies.

7,  After heavy commercial vehicle and racing engine, carbon steel piston is gradually used in passenger car diesel engine in European and American countries, with a wide range of application scenarios.

Technical data sheet




0-ring
d2Xdl
Hydraulic dynamic seal d4(min) /mm Hydraulic dynamic seal d4(max) /mm Hydraulic dynamic seal d5(min) /mm Hydraulic dynamic seal d5(max) /mm Pneumatic seal d4(min) /mm Pneumatic seal d4(max) /mm Pneumatic seal d5(min) /mm Pneumatic seal d5(max) /mm Radial static seal d4(min) /mm Radial static seal d4(max) /mm Radial static seal d5(min) /mm Radial static seal d5(max) /mm
18000375 - - 4.139 4.07 - - 3.939 3.87 - - 4.219 4.09
18000400 - - 4.369 4.32 - - 4,169 4.12 - - 4.449 4 34
18000150 - - 4. 829 4.82 - - 4.629 4.62 - - 4.909 4.84
18000187 - - 5.169 5.19 7.98 8.019 5.969 4.99 - - 5.249 5.21
18000500 8.01 8.06 5.289 5.32 8.11 8.16 5.089 5.12 7.99 7.98 5.369 5.34
18000515 8.16 8.222 5.427 5.47 8.26 8.322 5.227 5.27 8.14 8.142 5.507 5.49
18000530 8.31 8.381 5.565 5.62 8.11 8.181 5.365 5.12 8.29 8.304 5.&15 5.49
18000560 8.61 8.708 5.841 5.92 8.71 8.808 6 5.72 8.59 8.628 5.921 5.94
18000600 9.01 9.11 6.209 & 32 9.11 9.24 6.009 6.12 8.99 9.06 6.289 6.34
18000630 9.32 9.453 6.494 6.61 9.12 9.553 6.294 6.41 9.3 9.373 6.571 6.63
18000670 9.72 9. 085 6.862 7.01 9.82 9.985 6.662 6.81 9.7 9.805 6.942 7.03
18000690 9.92 10.101 7.046 7.21 10.02 10.201 6.846 7.01 9.9 10.021 7.126 7.23
18000710 10.12 10.317 7.23 7.11 10.22 10.417 7.03 7.21 10.1 10.237 7.31 7.43
18000750 10.52 10.749 7.598 7.81 10.62 10.849 7.398 7.61 10.5 10.669 7.678 7.83
18000800 11.02 11.289 8.058 8.31 11.12 11.389 7,858 8.11 11 11.209 8.138 8.38
18000850 11.52 11.829 8.518 8.81 11.62 11.929 8.318 8.61 11.5 11.719 8.598 8.83

Advantage


1,  The carbon steel piston has excellent high temperature resistance and can withstand high pressure.

2,  It has the advantages of high fatigue strength, high reliability, lightweight design, low carbon dioxide emission and fuel saving.

ISO9001 Threaded Piston Cs Carbon Steel Pipe Fittings 3

Package


a. Plastic bubble bag package b.Wove bag package c.Pallet d. Customized


Delivery time


Our factory have high ability for production, the delivery time is 45days for small quantity, or if you are hurry for that, we can arrange and meet your shipping date.
