Product Details:
|
| Product Name:: | Carbon Steel Threaded Tee | Material:: | 10# 20# A3 Q235A |
|---|---|---|---|
| Range：: | DN15-DN800 | Advantage:: | Wide Range And Stable Performance |
| Usage: | Joining Pipe Lines | Thickness: | 2mm-50mm |
| High Light: | cs forged steel fitting,cs threaded tee |
||
Tee is a pipe fitting and pipe connector, which is mainly used at the branch pipe of the main pipe. Tee is a kind of chemical pipe fitting with three openings, i.e. one inlet and two outlets, or two inlets and one outlet.
The three-way pipe has T-shaped and Y-shaped, equal diameter pipe orifice and reducer pipe orifice, which are used for the confluence of three identical or different pipes. Tee can be divided into metal material and non-metal material according to material. There are carbon steel, stainless steel, alloy steel, etc. The screw thread tee is produced according to the standard of Maanshan Iron and Steel Co., Ltd. and the national standard is GB / 12459-2005. The non-metallic materials are PVC, UPVC, PPR, etc. According to the connection mode, it can be divided into two types: snap type and threaded connection. According to the shape, it can be divided into T-type and herringbone type. The hydraulic bulging of tee is a forming process of expanding branch pipe by axial compensation of metal material.
The hydraulic bulging process can be formed in one time with high production efficiency; the wall thickness of the main pipe and shoulder of the tee is increased. Due to the large tonnage of equipment required for seamless tee process, it is mainly used for the manufacture of standard wall thickness tee less than dn400.
The metal of hot pressed tee branch pipe is compensated by the radial movement of tube blank, so it is also called radial compensation process. Due to the use of heating and pressing tee, the tonnage of equipment required for material forming is reduced. Hot pressed tee has wide adaptability to materials, which is suitable for low-carbon steel, alloy steel and stainless steel; especially for large-diameter and thick pipe wall tee, this forming process is usually adopted.

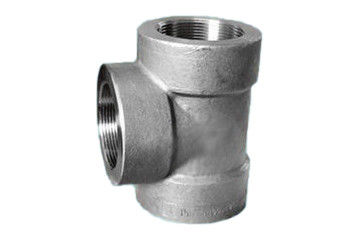

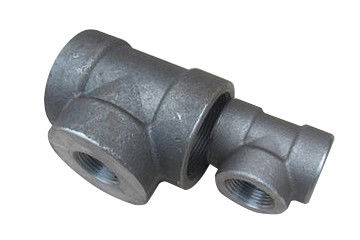

Threaded tee, which refers to the tee with thread, is the most common pipe fitting in industry and life. It makes the connection of pipes easier, disassembly and replacement easier, and greatly saves the cost of pipe connection. Thread tee is divided into external thread and internal thread. The joint with thread is called external thread, and the inner wall with thread is called internal thread. The inner wall has thread interface and thread for easy installation. The inner wall has thread to eliminate noise and high heat exchange efficiency.
Standard: GB / 12459-2005
Material: carbon steel, alloy steel, stainless steel
Size range: DN 6-100
Pressure range: 3000lb 6000lb
Thickness: Sch80, Sch160, XXS
Surface treatment: anti-oil; anti-painting
| Nominal diameter | Center to End | Diameter | Thickness | Thread length | ||||||||
| Tee | D | Cmin | ||||||||||
| DN | NPS | 2000 LB | 3000 LB | 6000 LB | 2000 LB | 3000 LB | 6000 LB | 2000 LB | 3000 LB | 6000 LB | NPT | Rc |
| Sch80 | Sch160 | XXS | Sch80 | Sch160 | XXS | Sch80 | Sch160 | XXS | ||||
| 6 | 1/8 | 21 | 21 | 25 | 22 | 22 | 25 | 3.0 | 3.0 | 6.5 | 6.5 | 6.5 |
| 8 | 1/4 | 21 | 25 | 29 | 22 | 25 | 33 | 3.0 | 3.5 | 6.5 | 8.0 | 10.0 |
| 10 | 3/8 | 25 | 29 | 33 | 25 | 33 | 38 | 3.0 | 3.5 | 7.0 | 9.0 | 10.5 |
| 15 | 1/2 | 29 | 33 | 38 | 33 | 38 | 46 | 3.0 | 4.0 | 8.0 | 11.0 | 13.5 |
| 20 | 3/4 | 33 | 38 | 44 | 38 | 46 | 56 | 3.0 | 4.5 | 8.5 | 12.5 | 14.0 |
| 25 | 1 | 38 | 44 | 51 | 46 | 56 | 62 | 3.5 | 5.0 | 10.0 | 14.5 | 17.5 |
| 32 | 1.1/4 | 44 | 51 | 60 | 56 | 62 | 75 | 4.0 | 5.5 | 10.5 | 17.0 | 18.0 |
| 40 | 1.1/2 | 51 | 60 | 64 | 62 | 75 | 84 | 4.0 | 5.5 | 11.0 | 18.0 | 18.5 |
| 50 | 2 | 60 | 64 | 83 | 75 | 84 | 102 | 4.5 | 7.0 | 12.0 | 19.0 | 19.0 |
| 65 | 2.1/2 | 76 | 83 | 95 | 92 | 102 | 121 | 5.5 | 7.5 | 15.5 | 23.5 | 29.0 |
| 80 | 3 | 86 | 96 | 106 | 110 | 121 | 146 | 6.0 | 9.0 | 16.5 | 26.0 | 30.0 |
| 100 | 4 | 106 | 114 | 114 | 146 | 152 | 152 | 6.5 | 11.0 | 18.5 | 27.5 | 33.0 |
1. Large pressure bearing: seamless steel pipe is used on the outer wall and lined with high chromium nickel alloy to resist abrasive wear.
2. It is used for pipes with high pressure, high concentration and long distance transportation.
3. Good wear resistance: special compound modifier is used to refine the grain and improve the toughness and tensile strength of the tee.
4. Convenient installation: the outer wall adopts seamless steel pipe series specifications, which greatly facilitates the design and installation of pipe fittings.
5. High temperature resistance: no deformation, no oxidation and high wear resistance under high temperature.
6. Good corrosion resistance: in a certain range of temperature and concentration can withstand a variety of corrosive media.
7. Good appearance and anti scaling: the appearance quality is improved, the inner lining adopts centrifugal and vacuum casting, the inner wall is smooth, and the anti scaling ability of the pipeline is improved.
a. Plastic bubble bag package b.Wove bag package c.Pallet d. Customized
Our factory have high ability for production, the delivery time is 45days for small quantity, or if you are hurry for that, we can arrange and meet your shipping date.
