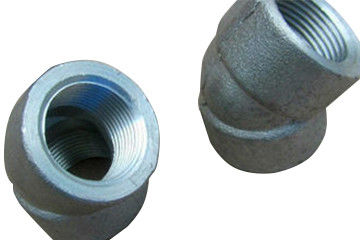

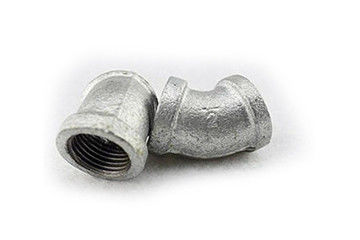

Pipe Carbon Steel 45 Degree Elbow Carbon Steel Pipe Fittings

Description

Elbow is a common connecting pipe used in pipeline installation. It connects two pipes with the same or different nominal diameter to make the pipeline turn at a certain angle. According to its curvature radius, it can be divided into long radius elbow and short radius elbow. Long radius elbow refers to the outer diameter of the pipe whose radius of curvature is equal to 1.5 times, that is, r = 1.5D. short radius elbow refers to the outer diameter of the pipe whose radius of curvature is equal to r = 1.0D. According to the pressure rating, there are about 17 kinds, which are the same as the American pipe standards. It including: sch5s, sch10s, sch10, sch20, sch30, sch40s, STD, sch40, sch60, sch80s, XS; sch80, schh100, sch120, sch140, sch160, XXS; the most commonly used ones are STD and XS. According to different shapes and uses, it can be divided into: groove elbow, ferrule elbow, double socket elbow, flange elbow, reducing elbow. In addition, it also includes solid seat elbow, internal and external teeth elbow, stamping elbow, push elbow, socket elbow, butt welding elbow, internal wire elbow, etc.

Specification

Standard: GB / t14383, ASME B16.11 and BS 3799

Material: carbon steel

Size range: DN 15-700

Pressure range: 2000lb, 3000lb and 6000lb

Surface treatment: anti-oil; anti-painting

The difference between a 90 degree elbow and a 45 degree elbow is that the extension lines of the two orifices of the 90 degree elbow are vertical, while the extension lines of the two orifices of the 45 degree elbow intersect into an acute angle. A right angle is formed after connecting pipes on both sides of the 90 degree elbow, and a blunt angle is formed after connecting pipes on both sides of the 45 degree elbow. Carbon steel threaded elbow is a pipe fitting that changes the direction of the pipeline in the pipeline system. According to the angle, there are 45 ° and 90 °. In addition, other abnormal angle elbows such as 60 ° are also included according to the needs of the project. The threaded elbow is composed of a screw mouth, a bending part, etc., which is characterized in that there is a threaded groove on the screw mouth.  In the pipeline system, the threaded elbow is a pipe fitting that changes the direction of the pipeline. Pressure of threaded elbow: the main manufacturing standards of 2000lb, 3000lb and 6000lb threaded elbow are generally GB / t14383, ASME B16.11 and BS 3799.

Technical data sheet

Advantage and Application

1, Its properties are better than other plastic pipes. The utility model has the advantages of simple installation and good thermal conductivity, which is suitable for the floor heating system.

2, It has excellent impact strength, hot-melt welding and mechanical connection, superior to the thermal conductivity of pb-pp-r.

3, The long-term pressure resistance is only from the design stress, and the pressure resistance of carbon steel threaded elbow is the best.

4, The impact resistance of low temperature is better. During winter construction, the pipe is not easy to be impacted and cracked, which increases the flexibility of construction arrangement.

5, Carbon steel 45 ° threaded elbow is mainly used in petroleum and gas pipeline engineering, natural gas pipeline engineering, chemical plant, power plant, shipyard, pharmaceutical, dairy, beer, beverage, water conservancy, etc.

6, It widely used in dairy, food, beer, beverage, pharmaceutical, cosmetics and other industrial fields.

Package

a. Plastic bubble bag package b.Wove bag package c.Pallet d. Customized

Delivery time

Our factory have high ability for production, the delivery time is 45days for small quantity, or if you are hurry for that, we can arrange and meet your shipping date.
