Product Details:
|
| Product Name:: | HDPE Welded Butt 90 ° Elbow | Material:: | PE100 |
|---|---|---|---|
| Color:: | Black | Advantage：: | Green Environmental Protection |
| Packing: | Canton And Polybag | Oem: | Acceptable |
| High Light: | HDPE 90 Degree Elbow,butt HDPE Elbow 90,HDPE Gas Pipe Fittings |
||

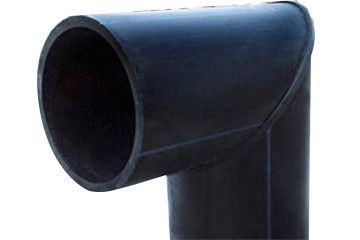

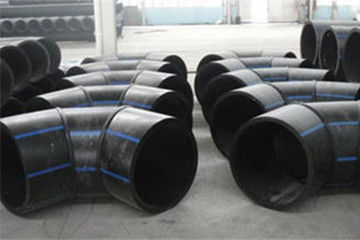

HDPE welded 90°elbow is directly welded by HDPE water supply pipe.The wall thickness of HDPE welded elbow is thicker than that of injection elbow, so the pressure resistance is stronger.In addition to welding various angle elbows, it can also weld various pipe fittings such as equal diameter reducing tee, cross, etc.
The welding is flexible and can meet the needs of various pipeline connections.The 90 ° elbow made of HDPE welding can be divided into the elbow for water supply and the elbow for gas.From the connection way, it can be divided into butt elbow and hot-melt elbow.
The product has high pressure resistance, strong corrosion resistance, long service life, up to 50 years, and wall thickness of sdr11, sdr17, etc.
Material: PE100
Packing: Canton and Polybag
Oem: Acceptable
HDPE welded 90 ° elbow has superior physical properties.Good flexibility, excellent impact resistance, earthquake resistance, wear resistance, impact strength better than metal pipes.When transporting ore and searching mud, the service life of steel pipe is 4 times.
It is hygienic, nontoxic, nontoxic and does not breed bacteria, and conforms to the national health standards.The service life is long. Under the specified service conditions, the service life is more than 50 years.The flow capacity is large, the inner wall is smooth, the flow resistance is small, and the head loss of the pipeline is more than 20% smaller than that of the steel pipe of the same specification.
Compared with the metal pipeline, the project investment can be reduced by about 1 / 3.Convenient and reliable installation: light weight, easy to handle, easy to bend, simple welding process, and fast construction speed.
Gas, oil and natural gas transmission and distribution pipeline.
Urban and rural drinking water pipeline.
Sewage pipe.
Liquid material pipeline for chemical industry, food industry, pharmaceutical industry, paper industry, metallurgy industry, etc.
Agricultural irrigation pipe.
Post and telecommunication lines, power cable protective sleeves, etc.
Oil And Natural Gas Butt Weld 90 ° Elbow technical data sheet as below:
| Product specification D/mm | D/mm | L/mm | L1/mm |
| 90°L90 | 90 | 180 | 80 |
| 90°L110 | 110 | 223 | 100 |
| 90°L125 | 125 | 260 | 100 |
| 90°L140 | 140 | 293 | 110 |
| 90°L160 | 160 | 320 | 115 |
| 90°L200 | 200 | 363 | 120 |
| 90°L225 | 225 | 400 | 130 |
| 90°L250 | 250 | 443 | 150 |
| 90°L315 | 315 | 540 | 170 |
| 90°L355 | 355 | 595 | 175 |
| 90°L400 | 400 | 595 | 172 |
| 90°L450 | 450 | 650 | 170 |
| 90°L500 | 500 | 705 | 180 |
| 90°L560 | 560 | 815 | 220 |
| 90°L630 | 630 | 915 | 252 |
a. Plastic bubble bag package b.Wove bag package c.Pallet d. Customized.
Our Steel flat factory have high ability for production, the delivery time is 45days for small quantity, or if you are hurry for that, we can arrange and meet your shipping date.
