Product Details:
|
| Product Name:: | HDPE Injection Socket Saddle Type Pipe Fittings | Material:: | PE100 |
|---|---|---|---|
| Nominal Outside Diameter：: | 50-630 Mm | Color:: | Black |
| Surface Treatment: | Mirror Polished | Oem: | Acceptable |
| High Light: | Clamp Saddle HDPE,Saddle Clamp HDPE,Saddle Clamp For HDPE Pipe |
||

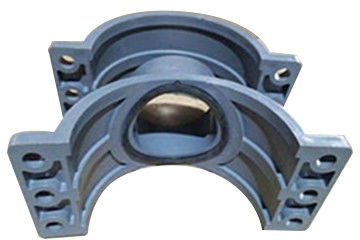

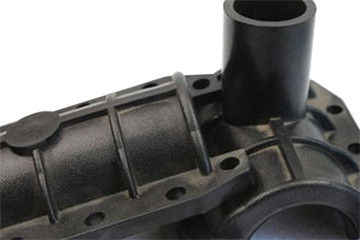

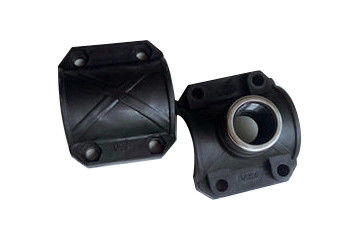

HDPE socket saddle type pipe fitting is one of PE pipe fittings, and its connection principle and process are basically the same as PE socket pipe fittings.For different PE saddle type pipe fittings, the following methods shall be used for fastening:
If the PE socket saddle type pipe fittings have semi-circular groove shaped lower fastener, the section with reinforcement edge shall be fastened with wooden or rubber hammer.Slide it along the pipe from one end of the saddle to the other.For PE saddle type socket fittings with fasteners, loosen the screws first to make it easy to hang the buckle when hanging the fastener belt.Then put in two screws until the two plastic parts of the fastening belt are in close contact.

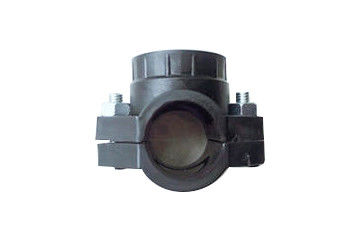

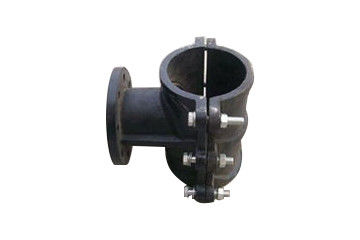

For saddle type pipe fittings with semi-circular lower fasteners and fastened with bolts, the metal gasket and bolts shall be installed according to the instructions.Then tighten the four screws until the lower edge of the fastener and the upper edge of the saddle are close to the four bolts, leaving only the last thread.
Material: PE100
Surface treatment: mirror polished
Nominal outside diameter:50-630 mm
It is used for tap water piping engineering (including indoor water supply and outdoor municipal water pipe) and water-saving irrigation piping engineering.It is used in piping engineering for construction. Well drilling engineering, piping engineering, mineral salt water transportation piping engineering, electrical piping engineering, etc.
It is also used in long-distance oil and gas pipeline transmission projects such as gas pipe, gas pipe, petrochemical industry and natural gas.It is used in oil fields, oil refineries, oil depots, power plants, chemical and petrochemical enterprises, water companies, municipal gas, seawater utilization pipelines and other fields.
Building water supply and drainage, urban and rural water supply and drainage, urban gas, electricity, industrial fluid transmission, agricultural irrigation and other construction, municipal, industrial and agricultural fields.Heating, marine engineering, railway, mining and other industries on various pipelines and equipment.
Piping Engineering Socket Saddle Clamp HDPE Pipe Fittings technical data sheet as below:
| Specifications | Single weight with iron ring / g | Packing list (PCs.) |
| 20*1/2 | 68.1 | 400 |
| 25*1/2 | 78.3 | 320 |
| 25*3/4 | 76.4 | 320 |
| 32*1/2 | 88.7 | 300 |
| 32*3/4 | 88.7 | 300 |
| 32*1 | 95.2 | 240 |
| 40*1/2 | 168.6 | 180 |
| 40*3/4 | 166.7 | 180 |
| 40*1 | 173.6 | 180 |
| 50*1/2 | 185.9 | 140 |
| 50*3/4 | 183.9 | 140 |
| 50*1 | 200.7 | 140 |
| 50*11/4 | 203.3 | 120 |
| 63*1/2 | 198.0 | 120 |
| 63*3/4 | 196.3 | 120 |
| 63*1 | 207.0 | 120 |
| 63*11/4 | 322.3 | 90 |
| 63*11/2 | 326.9 | 90 |

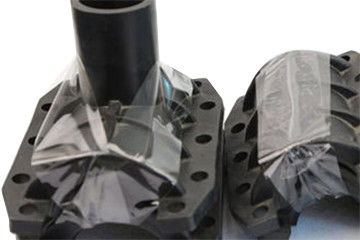

a. Plastic bubble bag package b.Wove bag package c.Pallet d. Customized.
Our Steel flat factory have high ability for production, the delivery time is 45days for small quantity, or if you are hurry for that, we can arrange and meet your shipping date.
