Product Details:
|
| Product Name:: | HDPE Hot Melt Socket Reducer | Material：: | PE100、PE80 |
|---|---|---|---|
| Wall Thickness：: | SDR11、SDR17 | Nominal Outside Diameter：: | 50-630 Mm |
| Head Code: | Round | Type: | Reducer |
| High Light: | HDPE tube Reducer,socket HDPE pipe Reducer,socket HDPE Pipe Fittings |
||

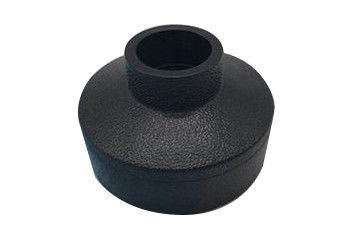

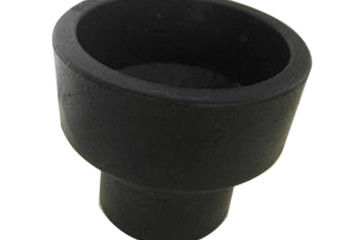

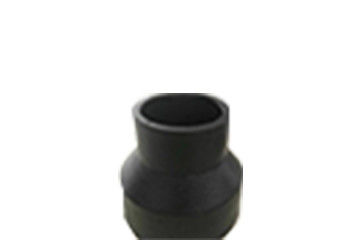

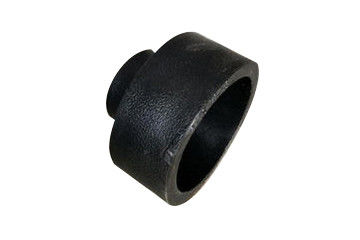

HDPE socket reducer, also known as large and small head, is one of the chemical pipe fittings. Reducers are used to connect two pipes of different diameters.According to different shapes, it can be divided into two types: concentric reducer and eccentric reducer. The following international industrial standards are DIN, ISO, SMS, 3A, IDF, etc.
HDPE hot-melt socket reducer has higher strength, rigidity and impact than ordinary plastic.The reducer is double-sided anticorrosive, has the same anticorrosive performance as the plastic pipe, and is resistant to corrosion.
With the increase of temperature, the coefficient of thermal conductivity decreases. The outer wall does not need heat preservation in winter, and there is no condensation in summer.The inner wall is smooth without scaling, and the head loss is 30% lower than that of steel pipe.
Hot melt socket connection is adopted for pipe connection, with mature technology.HDPE hot-melt socket reducer has many specifications, light weight, convenient transportation and construction.
Material:PE100,PE80
Wall thickness:SDR11,SDR17
Nominal outside diameter:50-630 mm
It is applicable to the connection of pipes of all specifications and sizes of the same HDPE material.It is applicable to the connection of pipes with different grades (different density, melt index and color) of the same grade of materials.Reliable connection performance, high interface strength, good air tightness and stable socket performance.
It is not easy to be affected by environmental temperature change and human factors.Socket welding technology is simple, easy to operate, easy to construct, low cost of equipment investment and maintenance.
Because of its unique advantages, it is widely used in various fields.
Used in chemical industry, chemical fiber, environmental protection, smelting, medicine, building water supply, building drainage, buried drainage pipe and other fields.
It is also used for building heating, gas transmission pipe, electrical and telecommunication protection sleeve, industrial pipe, agricultural pipe, etc.
Socket Connection Head Loss Reducer technical data sheet as below:
| Nominal diameter | D1 | D2 | L | Z |
| 25x20 | 25 | 20 | 43.0 | 25 |
| 32x20 | 32 | 20 | 48.0 | 30 |
| 32x25 | 32 | 25 | 50.5 | 30 |
| 40x20 | 40 | 20 | 54.0 | 36 |
| 40x25 | 40 | 25 | 56.5 | 36 |
| 40x32 | 40 | 32 | 60.5 | 36 |
| 50x20 | 50 | 20 | 62.0 | 44 |
| 50x25 | 50 | 25 | 64.5 | 44 |
| 50x32 | 50 | 32 | 68.5 | 44 |
| 50x40 | 50 | 40 | 72.5 | 44 |
| 63x25 | 63 | 25 | 74.5 | 54 |
| 63x32 | 63 | 32 | 78.5 | 54 |
| 63x40 | 63 | 40 | 82.5 | 54 |
| 63x50 | 63 | 50 | 87.5 | 54 |
a. Plastic bubble bag package b.Wove bag package c.Pallet d. Customized.
Our Steel flat factory have high ability for production, the delivery time is 45days for small quantity, or if you are hurry for that, we can arrange and meet your shipping date.
