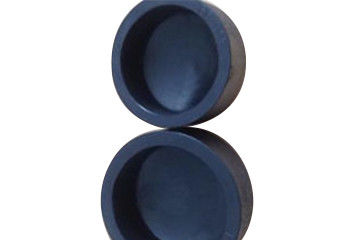

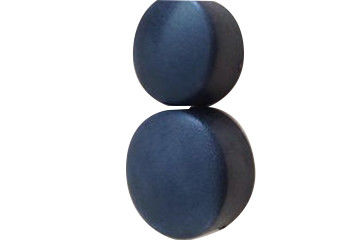

Product Details:
|
| Product Name:: | HDPE Socket Cap | Size:: | Full-size |
|---|---|---|---|
| Drift Diameter：: | DN15-DN1200 | Material：: | PE100 |
| Application:: | Plugging The Pipeline | Packing: | Canton And Polybag |
| High Light: | HDPE electrofusion cap,PE100 electrofusion cap,DN15 electrofusion cap |
||
The pipe cap, also known as the head, is a pipe fitting welded on the pipe end or installed on the external thread of the pipe end to cap the pipe. Used to close off lines.HDPE is a kind of thermoplastic resin material with high crystallinity and non polarity.
The appearance of HDPE is milky white and translucent to a certain extent.HDPE cap has excellent resistance to most of the chemicals used in life and industry.
Drift diameter:DN15-DN1200
Material:PE100
Packing: Canton and Polybag
HDPE socket cap connection is reliable: socket connection is adopted between HDPE socket cap and pipeline, and the strength of joint is higher than that of pipeline body.Good impact resistance at low temperature: the low temperature embrittlement temperature of polyethylene is very low, which can be used safely in the temperature range of - 60-60 ℃.
Good stress cracking resistance: HDPE cap has low notch sensitivity, high shear strength and excellent scratch resistance.Good chemical resistance: HDPE pipe cap can resist the corrosion of various chemical media, and the chemical substances in the soil will not cause any degradation to the pipeline.
HDPE material is electrical insulator, so it will not rot, rust or electrochemical corrosion, and will not promote the growth of algae, bacteria or fungi.
Aging resistance and long service life: it can be stored or used outdoors for 50 years without damage due to ultraviolet radiation.Good wear resistance: the wear resistance of HDPE socket cap is 4 times of that of steel pipe. It has longer service life and better economy.
Easy to handle: HDPE cap is better than galvanized cap, stainless steel cap and carbon steel cap.It is easy to handle and install, lower labor and equipment requirements, and greatly reduce the installation cost of the project.
Because PE material is soft. Therefore, special tools are not needed during construction, so the construction cost is relatively low.The thermal conductivity of PE is better than that of PP-R and pp-b. It is very suitable for floor heating.
HDPE socket cap is mainly used in water, beverage, beer, food, petrochemical, nuclear power, machinery, medical equipment, chemical fertilizer, shipbuilding, waterproof treatment, pipeline and other fields.
Various chemical socket connection socket cap technical data sheet as below:
| Nominal Diameter | Depth of Socket | Dimension of Socket | Wall Thickness | End Wall Thickness | |||||
| Cmin | Kmin | ||||||||
| DN | NPS | Jmin | d1 | 3000 LB | 6000 LB | 9000 LB | 3000 LB | 6000 LB | 3000 LB |
| Sch80 | Sch160 | XXS | Sch80 | Sch160 | XXS | ||||
| 6 | 1/8 | 10 | 10.7 | 3.2 | 3.5 | - | 5.0 | 6.5 | - |
| 8 | 1/4 | 10 | 14.1 | 3.3 | 4.0 | - | 5.0 | 6.5 | - |
| 10 | 3/8 | 10 | 17.5 | 3.5 | 4.4 | - | 5.0 | 6.5 | - |
| 15 | 1/2 | 10 | 21.8 | 4.1 | 5.2 | 8.2 | 6.5 | 8.0 | 11.0 |
| 20 | 3/4 | 13 | 27.4 | 4.3 | 6.1 | 8.6 | 6.5 | 8.0 | 12.5 |
| 25 | 1 | 13 | 34.2 | 5.0 | 7.0 | 10.0 | 9.5 | 11.0 | 14.0 |
| 32 | 1.1/4 | 13 | 42.9 | 5.3 | 7.0 | 10.6 | 9.5 | 11.0 | 14.0 |
| 40 | 1.1/2 | 13 | 48.3 | 5.6 | 7.8 | 11.2 | 11.0 | 12.5 | 16.0 |
| 50 | 2 | 13 | 61.1 | 6.1 | 9.5 | 12.2 | 12.5 | 16.0 | 19.0 |
| 65 | 2.1/2 | 16 | 76.9(73.8) | 7.7 | 12.5 | 16.0 | 19.0 | - | |
| 80 | 3 | 16 | 89.8 | 8.3 | 13.8 | - | 19.0 | 22.0 | - |
| 100 | 4 | 19 | 115.5 | 9.4 | - | - | 22.0 | 28.5 | - |
a. Plastic bubble bag package b.Wove bag package c.Pallet d. Customized.
Our Steel flat factory have high ability for production, the delivery time is 25 days for small quantity, or if you are hurry for that, we can arrange and meet your shipping date.
