Product Details:
|
| Product Name:: | HDPE Hot Melt Socket Tee | Material：: | SDR11（mm） |
|---|---|---|---|
| Diameter：: | 20~110 | Advantage：: | High Pressure Resistance |
| Application: | Pipeline,Gas/oil/water | Packing: | Canton And Polybag |
| High Light: | HDPE Pipe socket Tee,Socket Butt HDPE Tee,HDPE Tee Joint |
||

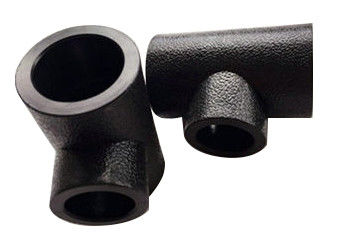

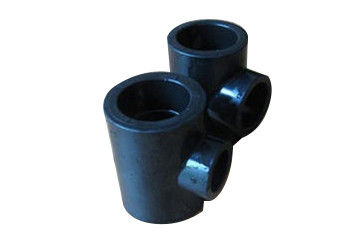

HDPE socket tee is a kind of mechanical part. It is a utility model patent product with high quality, low price and many advantages.Inside there are locking hoops, stepped ring seals and other components. Scientific design, strong fastness and good sealing.Easy to connect, easy to disassemble, flexible, easy to recycle, beautiful and practical.
In addition to connecting PE pipes, it can also be used for the connection of U-PVC, steel pipes, etc., which is widely used.Specifications are complete, including straight, reducing straight, straight tee, reducing tee, 90 ° elbow, screw joint, plug, etc.
There are basically specifications of Φ 20, Φ 25, Φ 32, Φ 40, Φ 50 and Φ 63 in terms of size, which can meet the requirements of various applications.HDPE socket straight tee is made of imported PE100 or PE80.
Material:SDR11(mm)
Diameter:20~110
Packing: Canton and Polybag
The specification, size and performance meet the requirements of GB / T 13663.2-2005.The hygienic performance conforms to the GB / t17219 standard and the relevant regulations of the Ministry of health on hygienic safety evaluation.
HDPE straight tee has the characteristics of good flexibility, strong corrosion resistance, light weight and excellent impact resistance.Hot melt socket, hot melt butt joint and electric fusion can be used for the connection of tee with pipes and pipe fittings, so that pipes and pipe fittings can be melted into one.
The connection system is safe and reliable, with low construction cost, and develops rapidly in engineering application.
PE socket tee is equipped with locking hoop, stepped ring seal ring and other parts. Scientific design, strong fastness and good sealing.
PE butt tee connection is convenient, easy to disassemble, flexible, easy to recycle, beautiful and practical.
HDPE socket tee is mainly used for connection between various soft belts.
HDPE butt tee is mainly used for the connection of PE pipe and PP pipe.
PE socket tee adopts hot-melt socket connection or electric fusion connection.
PE butt joint tee should adopt hot-melt butt joint or electric fusion connection.
Gas pipe, natural gas pipe, coal mine ventilation pipe, oil pipeline, urban and rural tap water pipe, sewage pipe.
Chemical, pharmaceutical, papermaking and other factories material liquid delivery pipe, farmland irrigation pipe, beverage, milk, wine and other food factory piping.
Mine slurry pipeline, power cable protection pipe, post communication pipe, air conditioning condensate pipe.
Ministry Health Screw Joint Socket Butt Tee technical data sheet as below:
| Specifications | D | d | I | L | H | PCs. / box |
| Φ20 | 27.5 | 19 | 16.5 | 54.5 | 27.5 | 400 |
| Φ25 | 33.5 | 24 | 18.5 | 63 | 31.5 | 220 |
| Φ32 | 42.5 | 31 | 21 | 74 | 37 | 130 |
| Φ40 | 53.4 | 39 | 22 | 86 | 43 | 84 |
| Φ50 | 66.6 | 49 | 25 | 102 | 51 | 46 |
| Φ63 | 83.5 | 61.9 | 29 | 123 | 61.5 | 25 |
a. Plastic bubble bag package b.Wove bag package c.Pallet d. Customized.
Our Steel flat factory have high ability for production, the delivery time is 30 days for small quantity, or if you are hurry for that, we can arrange and meet your shipping date.
