Large Image :  technical data sheet as below: of HDPE pipe fittings

Product Details:
Place of Origin: China
Brand Name: HDPE socket 90 degree elbow
Certification: ISO9001
Model Number: LJ-PF068
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: 1USD-100USD
Packaging Details: Export standard packaging
Delivery Time: Depends on the quantity of goods
Payment Terms: L/C, T/T
Supply Ability: Annual output 50000 tons

technical data sheet as below: of HDPE pipe fittings

Product Name:: HDPE Socket 90 Degree Elbow Size:: Full-size
Standard:: GB / ANSI /JIS / DIN Material:: HDPE,PE100,PE80
Pressure:: SDR11,SDR13.6,SDR17 Color:: Black
High Light:

socket HDPE Elbow




SDR17 HDPE Elbow


High density polyethylene, referred to as HDPE, white powder or granular products.HDPE material can be used to make pipes, pipe fittings and other products, belonging to polyethylene plastic pipe products.PE elbows are fittings that change the direction of the pipe run. According to the angle, there are 45 ° and 90 ° in common use.

In addition, other abnormal angle elbows such as 60 ° are also included according to the needs of the project.PE elbow material is mainly polyethylene plastic.PE 90 °elbow material contains only two elements of hydrocarbon, which has good hygienic performance.

In contrast, PVC materials contain lead and other heavy metals, and their hygienic properties are weaker than PE materials.The common specifications of PE 90 ° elbow are DN32, 40, 50, 63, 90, 110, 160, 200.

The larger specifications are DN250, 315, 355, 400, 450, 500, 560, 630, 710, 800, 900, 1000, 1200.There are also some unusual specifications, such as 75, 125, 180, 225, etc.

technical data sheet as below: of HDPE pipe fittings 0


Standard: GB / ANSI /JIS / DIN




Nontoxic, healthy: PE material is nontoxic, tasteless and passes strict health monitoring.It belongs to green building materials, never scaling, and can effectively improve water quality.Corrosion resistance: PE belongs to inert material, which can resist a variety of chemical media.

No leakage: PE pipe is connected by electric melting, and its interface strength is higher than the pipe itself.High toughness: the elongation at break of PE pipe is generally more than 500%.For the uneven settlement of the base, its adaptability is very strong and its seismic performance is good.

Excellent resistance to rapid crack growth.Excellent flexibility and scratch resistance.Good wear resistance, low wall friction coefficient, small flow resistance and strong conveying capacity.A variety of trenchless methods can be adopted, which greatly facilitates the construction and installation.

System cost is low, maintenance cost is little, can reduce project cost greatly.Long service life: buried PE pipe is normally used for more than five years.

Technical data sheet

technical data sheet as below: technical data sheet as below:

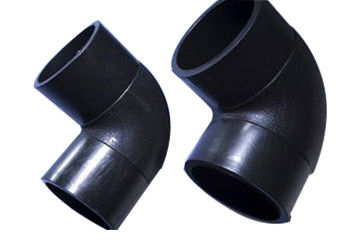

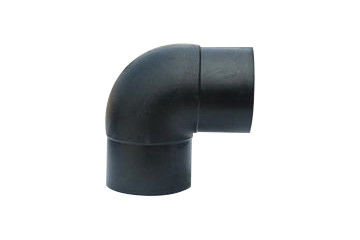

Product name HDPE 90 degree elbow
description Hot melt injection socket 90 degree elbow
Material HDPE, PE100, PE80
Key word Elbow,90°
Color black
Connection Hot melt socket welding
Pressure SDR11, SDR13.6, SDR17
Standard ISO 4427, GB/T13663
Qualification SGS, CE
Working temperature ‘-60°C-60°C


PE elbow is widely used in building water supply, building drainage, buried drainage pipe and so on because of its unique advantages.

In addition, it is also used in building heating, gas pipeline, electrical and telecommunication protection casing, industrial pipe, agricultural pipe, etc.

It is mainly used in urban water supply, urban gas supply, farmland irrigation and other fields.


a. Plastic bubble bag package b.Wove bag package c.Pallet d. Customized.

Delivery time

Our Steel flat factory have high ability for production, the delivery time is 25 days for small quantity, or if you are hurry for that, we can arrange and meet your shipping date.
