Product Details:
|
| Product Name: | Stamping Elbow | Standard: | GB / ANSI /JIS / DIN |
|---|---|---|---|
| Material: | Stainless Steel | Connection: | Welding |
| Size: | 1/2"-48" | Usage: | Joining Pipe Lines |
| Highlight: | DN20 SS Socket Weld Fittings,Stamping Socket Weld Elbow,Joining Pipe Socket Weld Elbow |
||

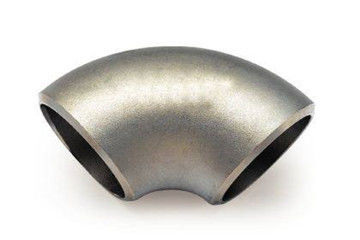

The stamping elbow needs to use the power of conventional or special stamping equipment to make the material directly subject to deformation force in the die, so as to obtain the elbow with good performance. Stamping is a kind of metal cold deformation processing method. Therefore, it is called cold stamping or sheet metal stamping, referred to as stamping. It is one of the main methods of metal plastic processing, and also belongs to the material forming engineering technology.
The stamping elbow is used in different fields and industries, and it needs to be produced and used according to certain standards when using. It is necessary to pay close attention to ensure the quality and performance of stamping elbow and make it have good service life.
SS Socket Weld Fittings Stamping elbow technical data sheet as below:
| Nominal size | Outer diameter of groove | Center to End | ||
| DN | I series | II series | 90° elbow A | 45° elbow B |
| 15 | 21.3 | 18 | 38 | 16 |
| 20 | 26.9 | 25 | 38 | 19 |
| 25 | 33.7 | 32 | 38 | 22 |
| 32 | 42.4 | 38 | 48 | 25 |
| 40 | 48.3 | 45 | 57 | 29 |
| 50 | 60.3 | 57 | 76 | 35 |
| 65 | 73 | 76 | 95 | 44 |
| 80 | 88.9 | 89 | 114 | 51 |
| 90 | 101.6 | 133 | 57 | |
| 100 | 114.3 | 108 | 152 | 64 |
Standard:GB / ANSI /JIS / DIN
Size:1/2"-48"
Usage:Joining Pipe Lines
Stamping elbow is hard after welding and easy to produce cracks. Different welding rods are selected for welding to ensure the quality of welded stamping elbow. If the same type of chromium stamping elbow welding rod is used, preheating above 300 ℃ and slow cooling treatment about 700 ℃ after welding must be carried out. If the weldment cannot be post weld heat treated, chrome nickel stamping elbow should be selected.
a. Plastic bubble bag package b.Wove bag package c.Pallet d. Customized.
Our Steel flat factory have high ability for production, the delivery time is 20 days for small quantity, or if you are hurry for that, we can arrange and meet your shipping date.
