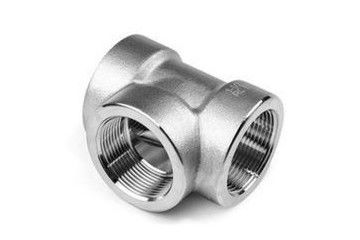

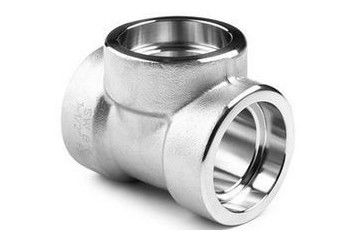

Stainless steel tee 9000LB SS Socket Weld Fittings

Description

The tee is mainly used to change the direction of the fluid and is used at the branch pipe of the main pipeline. Tee is a kind of chemical pipe fitting with three ports, i.e. one inlet and two outlets, or two inlets and one outlet. There are T-shaped and Y-shaped, equal diameter nozzles and reducer nozzles, which are used for the three same or different pipeline convergence.Socket welding tee is a kind of pipe connection mode that the tee is inserted into the embedded wall of the pipe for welding.

Relative to butt welding, socket welding is usually used for small diameter pipes of 2 "and below.Socket welding adopts fillet weld. When high structural strength requirements and high leakage risk are considered in design, socket welded joint is a better choice.The fatigue strength of socket welded joint is lower than that of butt welded joint because of the sharp change of fillet weld and geometry. However, socket welded joints are still superior to other mechanical joints.

Characteristics

1. It is used to transport inflammable medium without leakage, toxic or expensive medium and steam from 300PSI to 600psi.

2. Only connect with ASME pipe, with the same caliber.

3. It can be used for long-term operation of pipeline and provide better flow characteristics.

4. Its material is ASTM material and its manufacturing standard is ASME B16.11. B16.11 covers pressure, temperature ratings, dimensions, tolerances, identification and material requirements. Common materials are ASTM A105, A182 or A350.

5. There are three pressure classes for socket welded pipe fittings: class3000, 6000 and 9000.

Application

1,  Stainless steel socket welding tee not only attaches great importance to the chemical composition design requirements, but also attaches great importance to the mechanical performance requirements of the main pipe for high-pressure hot bend.

2,  It indirectly control the rolling process and pipe making process, so that the performance of the main pipe is relatively balanced, and the performance difference of high-pressure hot bend is always small.

3,  Stainless steel socket welding tee is widely used in the construction and maintenance of petrochemical, oil and gas, liquefied gas, chemical fertilizer, power plant, nuclear power, shipbuilding, paper making, food hygiene, urban construction and other industries.

4,  In industry, the pressure of this kind of pipe fittings is higher, which can reach 600 kg. In life, the pressure of water pipes is lower, generally 16 kg.

5,  Socket welding is to extend the pipe into the valve body for welding, mostly used for the welding of carbon steel pipe and stainless steel pipe below 2 ".

6,  Butt welding is to use resistance heat to weld two workpieces along the whole end face at the same time, which is widely used in the welding of workpieces.

Technical data sheet

Stainless steel tee 9000LB SS Socket Weld Fittings data sheet

Advantage

1. Good corrosion resistance: excellent acid and alkali resistance, corrosion resistance, no rust, no erosion, no bacteria, no electrochemical erosion.

2. High impact resistance: the unique impact strength function is significantly improved compared with other solid wall pipes.

3. Good thermal insulation: low thermal conductivity, good thermal insulation.

4. Long service life: UV and radiation proof, the product will never fade, long service life.

Package

a. Plastic bubble bag package b.Wove bag package c.Pallet d. Customized

Delivery time

Our Stainless steel tee 9000LB SS Socket Weld Fittings  factory have high ability for production, the delivery time is 45days for small quantity, or if you are hurry for that, we can arrange and meet your shipping date.
