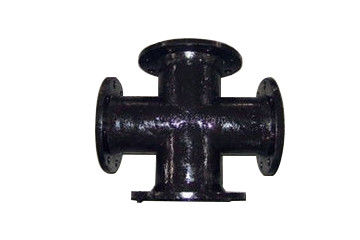

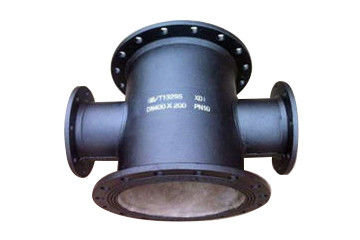

Main Pipeline Branch Soil Pipe Ductile Iron Cross

Main Pipeline Branch Soil Pipe Ductile Iron Cross
Main Pipeline Branch Soil Pipe Ductile Iron Cross Main Pipeline Branch Soil Pipe Ductile Iron Cross

Large Image :  Main Pipeline Branch Soil Pipe Ductile Iron Cross

Product Details:
Place of Origin: China
Brand Name: ductile iron cross tee
Certification: ISO9001
Model Number: LJ-PF054
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: 1USD-100USD
Packaging Details: Export standard packaging
Delivery Time: Depends on the quantity of goods
Payment Terms: L/C, T/T
Supply Ability: Annual output 50000 tons

Main Pipeline Branch Soil Pipe Ductile Iron Cross

Product Name:: Ductile Iron Cross Tee Size:: Full-size
Standard:: GB / ANSI /JIS / DIN Material:: Ductile Iron
Type: Tee Packing: Carton/wooden Box
High Light:

ductile iron cross


Pipeline Ductile Iron Fittings


The Cross Tee is a pipe fitting and pipe connector. Also known as a Cross Tee joint, used in the main pipe to branch. The Cross Tee pipe can be divided into equal diameter and reducing diameter. The nozzle ends of the equal diameter Cross Tee pipe are the same size.

The main nozzle size of the reducing Cross Tee pipe is the same, and the nozzle size of the branch pipe is smaller than that of the main pipe. A cross is a pipe fitting used at the branch of a pipe.The Cross Tee is divided into carbon steel, cast steel, alloy steel, stainless steel, copper, aluminum alloy, plastic, argon, PVC, etc. by material.

It can be divided into top system, pressing, forging, casting and so on. Manufacturing standards can be divided into national standards, electricity standards, water standards, American standards, German standards, Japanese standards, Russian standards, etc.

The Ductile Iron Cross Tee is made of magnesium combined with gold nodulizer, which is added into molten iron before pouring to spheroidize graphite and reduce the stress concentration.

Main Pipeline Branch Soil Pipe Ductile Iron Cross 0


Standard: GB / ANSI /JIS / DIN

Material: Ductile iron

Packing: Carton/wooden box


The hot forming of the Cross Tee is to flatten the tube blank larger than the diameter of the Cross Tee to the size of the diameter of the Cross Tee, and open a hole at the position of the stretching branch pipe. The tube blank is heated, put into the forming die, and put into the punching die of the stretching branch pipe.Under the effect of the pressure, the tube blank is compressed radially, in the process of the radial compression.

The metal flows to the direction of the branch pipe and forms the branch pipe under the drawing of the punching die.The internal and external surfaces of the Ductile Iron Cross Tee must be smooth, and no obvious defects such as cracks, cold insulation, wrong box, etc.

That hinder the use are allowed. With the consent of the demander, local defects that do not affect the use can be repaired, but the repaired pipe fittings must be retested for water pressure or air tightness.


Ductile iron Cross Tee adopts flexible joint, which is convenient for construction and operation. It can improve construction efficiency, improve construction conditions and reduce construction cost. Most of the joints are connected by rubber ring, which is easy to operate, can shorten construction period and reduce construction cost.It has the advantages of high water supply pressure, resistance to external loads and adaptability to changes in geological conditions.

The pipe has the advantages of high strength, good toughness, corrosion resistance, convenient installation of flexible interface, strong seismic resistance and low labor intensity.It have good sealing performance and are not easy to leak, which can reduce the leakage rate of the pipe network and the daily maintenance cost of the pipe network.

Technical data sheet

Main Pipeline Branch Soil Pipe Ductile Iron Cross technical data sheet as below:

DN outside diameter Center to end dimensions
D1 D2 C M
20x20x15 26.9 25 21.3 18 29 29
25x25x20 33.7 32 26.9 25 38 38
25x25x15 33.7 32 21.3 18 38 38
32x32x25 42.4 38 33.7 32 48 48
32x32x20 42.4 38 26.9 25 48 48
32x32x15 42.4 38 21.3 18 48 48
40x40x32 48.3 45 42.4 38 57 57
40x40x25 48.3 45 33.7 32 57 57
40x40x20 48.3 45 26.9 25 57 57
40x40x15 48.3 45 21.3 18 57 57
50x50x40 60.3 57 48.3 45 64 60
50x50x32 603 57 42.4 38 64 57
50x50x25 60.3 57 33.7 32 64 51
50*50x20 603 57 26.9 25 64 44
65x65x50 76.1(73) 76 60.3 57 76 70
65x65x40 76.1(73) 76 48.3 45 76 67
65x65x32 76.1(73) 76 42.4 38 76 64
65x65x25 76.1(73) 76 33.7 32 76 57
80x80x65 88.9 89 76.1(73) 76 86 83
80x80x50 88.9 89 60.3 57 86 76
80x80x40 88.9 89 48.3 45 86 73
80x80x32 88.9 89 42.4 38 86 70
90x90x80 101.6 - 88.9 - 95 92
90x90x65 101.6 - 76.1(73) - 95 89
90x90x50 101.6 - 60.3 - 95 83
90x90*40 101.6 - 48.3 - 95 79


a. Plastic bubble bag package b.Wove bag package c.Pallet d. Customized.

Delivery time

Our Steel flat factory have high ability for production, the delivery time is 45days for small quantity, or if you are hurry for that, we can arrange and meet your shipping date.
