Product Details:
|
| Product Name:: | Ductile Iron Tee | Use Location：: | Branch Of Main Pipeline |
|---|---|---|---|
| Main Function：: | Change Fluid Direction | Texture Of Material：: | Ductile Iron |
| Color: | Black | Packing: | Carton/wooden Box |
| Highlight: | Ductile Iron Tee,Pipeline di Tee |
||

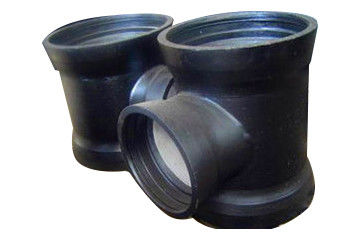

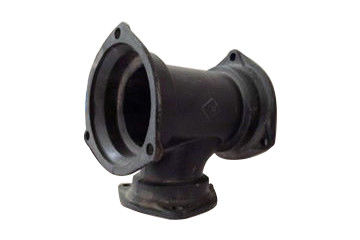

Tees are pipe fittings and pipe connections. Also known as pipe tee or tee pipe fitting, tee joint, used in the main pipe branch. Tee is a kind of chemical pipe fitting with three orifices, i.e. one inlet and two outlets, or two inlets and one outlet, with T-shaped and Y-shaped, equal diameter pipe orifices and reducing pipe orifices.
The main function of tee is to change the direction of fluid.Tee can be divided into equal diameter tee and reducing tee according to pipe diameter. The nozzle end of equal tee is the same size; the main nozzle size of reducing tee is the same, and the nozzle size of branch pipe is smaller than that of main pipe.
The nodular cast iron tee is made of magnesium or rare earth magnesium combined with gold nodulizer before pouring, It makes the graphite spheroidized and the stress concentration reduced, improves the water delivery environment of the pipeline, improves the water supply capacity and reduces the energy consumption.
Use location:Branch of main pipeline
Main function:Change fluid direction
Packing: Carton/wooden box
A circular valve piece is set on the valve. The valve piece is in a mutually sealed structure with the inner wall of the pipe cavity when the pipe cavity is closed.The innovation of nodular cast iron tee simplifies the pipeline setting, saves the consumption of pipeline parts, facilitates the operation, facilitates the maintenance of pipeline branch and the phased supply of each branch.
The utility model not only has the function of traditional three way pipe, but also plays the role of double position valve.One of the main pipe and branch pipe output can be selected as closed and the other as unblocked working state at will. The utility model can also adjust the flow ratio of the main pipe and branch pipe output at will, which can be realized only by adjusting the angle of the valve plate in the pipe cavity.
It is manufactured by EPC process with short production cycle and high dimensional accuracyCorrosion resistance, long service life.
The lining is cement mortar and Portland cement.It is coated with metallic zinc and asphalt paint.
According to ISO2531 standard, the pressure is PN16.Material: nodular iron, large volume, light weight, good ductility and toughness.
High Pressure Main Pipeline Ductile Iron Tee technical data sheet as below:
| Specification Of Ductile iron Tee | |||||||
| Nominal Diameter | OuteideDiamster | Center to End | |||||
| D1 | D2 | ||||||
| DN | NPS | Series A | Series B | Series A | Series B | C | M |
| 15x15x15 | 1/2x1/2x1/2 | 21.3 | 18 | 21.3 | 18 | 25 | 25 |
| 15x15x10 | 1/2x1/2x3/8 | 21.3 | 18 | 17.3 | 14 | 25 | 25 |
| 15x15x8 | 1/2x1/2x1/4 | 21.3 | 18 | 13.7 | 10 | 25 | 25 |
| 20x20x20 | 3/4x3/4x3/4 | 26.9 | 25 | 26.9 | 25 | 29 | 29 |
| 20x20x15 | 3/4x3/4x1/2 | 26.9 | 25 | 21.3 | 18 | 29 | 29 |
| 20x20x10 | 3/4x3/4x3/8 | 26.9 | 25 | 17.3 | 14 | 29 | 23 |
| 25x25x25 | 1x1x1 | 33.7 | 32 | 33.7 | 32 | 38 | 38 |
| 25x25x20 | 1x1x3/4 | 33.7 | 32 | 26.9 | 25 | 38 | 38 |
| 25x25x15 | 1x1x1/2 | 33.7 | 32 | 21.3 | 18 | 38 | 38 |
| 32x22x32 | 1.1/4x1.1/4x1.1/4 | 42.4 | 38 | 42.4 | 38 | 48 | 48 |
| 32x32x25 | 11/4x1.1/4x1 | 42.4 | 38 | 33.7 | 32 | 48 | 48 |
| 32x32x20 | 1.1/4x1.1/4x3/4 | 42.4 | 38 | 25.9 | 25 | 48 | 48 |
| 32x32x15 | 1.1/4x1.1/4x1/2 | 42.4 | 38 | 21.3 | 18 | 48 | 48 |
