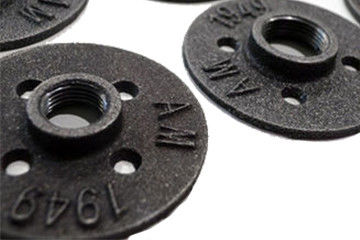

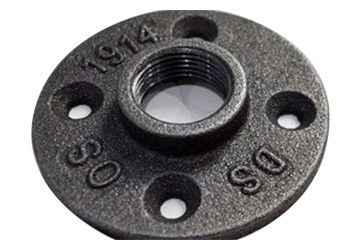

Threaded Steel Pipe Flanged Ductile Iron Pipe Fittings

Threaded Steel Pipe Flanged 	Ductile Iron Pipe Fittings
Threaded Steel Pipe Flanged 	Ductile Iron Pipe Fittings Threaded Steel Pipe Flanged 	Ductile Iron Pipe Fittings

Large Image :  Threaded Steel Pipe Flanged Ductile Iron Pipe Fittings

Product Details:
Place of Origin: China
Brand Name: Ductile iron flange
Certification: ISO9001
Model Number: LJ-PF055
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: 1USD-100USD
Packaging Details: Export standard packaging
Delivery Time: Depends on the quantity of goods
Payment Terms: L/C, T/T
Supply Ability: Annual output 50000 tons

Threaded Steel Pipe Flanged Ductile Iron Pipe Fittings

Description
Product Name:: Ductile Iron Flange Size:: Full-size
Standard:: GB / ANSI /JIS / DIN Material:: Ductile Iron
Technics:: Stamping And Welding Connection:: Flange
High Light:

Threaded ductile flange

,

ductile iron flanged fittings

Description


Ductile iron is a kind of high-strength cast iron material developed in 1950s. Its comprehensive properties are close to that of steel. Based on its excellent properties.It has been successfully used to cast some parts with complex stress, high strength, toughness and wear resistance. Ductile iron has developed rapidly into a widely used cast iron material next to grey cast iron. The so-called "iron for steel" mainly refers to ductile iron.

Spheroidal graphite is obtained by spheroidizing and inoculation treatment, which effectively improves the mechanical properties of cast iron. Especially the plasticity and toughness, so as to obtain higher strength than carbon steel.

It is also used for the flange on the inlet and outlet of equipment, which is used for the connection between two equipment. There are holes on the flange, the bolts make the two flanges tightly connected, and the flange is sealed with gasket.Ductile iron pipe fittings with ductile iron flange connecting ductile iron pipes.

Threaded Steel Pipe Flanged 	Ductile Iron Pipe Fittings 0

Specification


Standard: GB / ANSI /JIS / DIN

Technics: Stamping and Welding

Connection: Flange

Connection method


The socket and spigot of ductile iron pipe shall be cut off, and then the external thread of pipe orifice at both ends of the pipe shall be processed.The thread pitch shall be 3mm, and the thread length shall be 3mm thicker than the cast iron flange.For each processing of a pipe, two internal threads of cast iron flange shall be processed.

After the pipe and the supporting flange are processed, the flange and the pipe shall be trial connected. It is required that the flange and the pipe thread shall be well matched and rotate flexibly without looseness.After the processed pipe is connected with the processed flange (with internal thread), one end of the pipe shall expose the flange surface for about 3mm.

After the flange connection is completed, the butt joint of the pipeline shall be carried out. During the butt joint, a rubber pad shall be added at the pipe joint, and a horizontal line of the two connected pipelines shall be ensured. When the above conditions are met, the bolt connection between the flange plates shall be carried out.

Threaded Steel Pipe Flanged 	Ductile Iron Pipe Fittings 1

Advantage


Ductile iron flange is manufactured by EPC process, with short production cycle, high dimensional accuracy, cement lining, external spraying of anticorrosive zinc and asphalt paint, corrosion resistance and long service life. The lining is cement mortar and Portland cement. It is coated with metallic zinc and asphalt paint. According to ISO2531 standard, the pressure is PN16. Material: nodular iron, large volume, light weight, good ductility and toughness.

Technical data sheet


Threaded Steel Pipe Flanged Ductile Iron Pipe Fittings technical data sheet as below:

inch Nominal diameter 10kg=l. 0MPa Nominal diameter 16kg=l. 6MPa
outer diameter Bolt hole distance Bolt diameter Bolt hole number Flange thickness outer diameter Bolt hole distance Bolt diameter Bolt hole number Flange thickness
3/8 DN10 50 60 14 4 14 DN10 90 60 14 4 14
1/2 DN15 59 65 14 4 14 DN15 95 65 14 4 14
3/4 DN20 105 75 14 4 16 DN20 105 75 14 4 16
1 DN25 115 85 14 4 16 DN25 115 85 14 4 16
DN32 140 100 18 4 18 DN32 140 100 18 4 18
DN40 150 110 18 4 18 DN40 150 110 18 4 18
2 DN50 165 125 18 4 20 DN50 165 125 18 4 20
DN65 185 145 18 4 20 DN65 185 145 18 4 20
3 DN80 200 160 18 8 20 DN80 200 160 18 8 20
DN100 220 180 18 8 22 DN100 220 180 18 8 22
4 DN125 250 210 18 8 22 DN125 250 210 18 8 22
5 DN150 285 240 22 8 24 DN150 285 240 22 8 24
6 DN200 340 295 22 8 24 DN200 340 295 22 8 26
8 DN250 395 350 22 12 26 DN250 405 355 26 12 29
10 DN300 445 400 22 12 28 DN300 460 410 26 12 32
12 DN350 505 460 22 16 30 DN350 520 470 26 16 35
14 DN400 565 515 26 16 32 DN400 580 525 30 16 38
16 DN450 615 565 26 20 35 DN450 640 585 30 20 42
18 DN500 670 620 26 20 38 DN500 715 650 33 20 46
20 DN600 780 725 26 20 42 DN600 840 770 36 20 52

Package


a. Plastic bubble bag package b.Wove bag package c.Pallet d. Customized.

Delivery time


Our Steel flat factory have high ability for production, the delivery time is 25 days for small quantity, or if you are hurry for that, we can arrange and meet your shipping date.
