ANSI Reducing Tee Malleable Iron Pipe Fittings

ANSI Reducing Tee Malleable Iron Pipe Fittings
ANSI Reducing Tee Malleable Iron Pipe Fittings ANSI Reducing Tee Malleable Iron Pipe Fittings

Large Image :  ANSI Reducing Tee Malleable Iron Pipe Fittings

Product Details:
Place of Origin: China
Brand Name: Mar steel tee
Certification: ISO9001
Model Number: LJ-PF064
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: 1USD-100USD
Packaging Details: Export standard packaging
Delivery Time: Depends on the quantity of goods
Payment Terms: L/C, T/T
Supply Ability: Annual output 50000 tons

ANSI Reducing Tee Malleable Iron Pipe Fittings

Product Name:: Mar Steel Tee Size:: Full-size
Standard:: GB / ANSI /JIS / DIN Material:: Mar Steel
Connection Mode:: Welding Type:: Equal Tee, Reducing Tee
High Light:

Malleable Iron reducing tee


Mar steel reducing tee


Mar Steel pipe tee is mainly divided into the same diameter tee and reducing tee. The same diameter tee of Mar steel pipe fittings refers to the three Mar Steel tees with the same outlet. Its naming method is named by outlet diameter + tee joint.Mar Steel pipe reducer tee refers to three Mar Steel tees with different outlets, also known as reducer tee.

According to the different sizes of the three outlets, reducing tees are generally divided into three categories: small and medium-sized tees (common reducing tees), medium and large tees and side large tees.The medium and small tee is the one with the opening diameter smaller than the main pipe diameter.

Mar steel pipe tee in the side of the pipe opening diameter larger than the main pipe diameter is called the big tee. The main pipe diameter is different, and the side pipe diameter is smaller than the main pipe big mouth. This kind of reducing tee of Mar steel pipe fittings is called side big tee.

Due to the needs of fire fighting pipeline engineering, some special-shaped tees are developed, which are specially suitable for fire fighting. Their characteristics are that one side of the main thread is inside and the other side is outside. Such tees are collectively called fire tees.

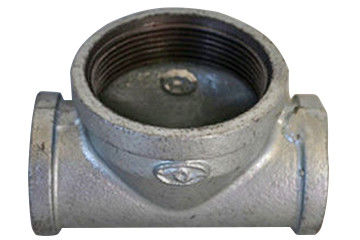

ANSI Reducing Tee Malleable Iron Pipe Fittings 0



Standard: GB / ANSI /JIS / DIN

Connection mode:Welding

Type:Equal tee, reducing tee

Standard requirements

High quality molten iron is the foundation of high quality Mar Steel tee, but good molten iron needs high quality raw materials and good production technology. The monitoring and control in the production process is an essential part. The casting temperature and composition content of molten iron are two major standards to measure the performance of molten iron.

The temperature of molten iron casting for Mar steel elbow is required to be controlled between 1480 and 1520 degrees. Too low temperature will lead to the decrease of the fluidity of molten iron, and then lead to the insufficient filling capacity in the casting, resulting in the problems of insufficient pouring, cold insulation and so on.

However, if the temperature is too high, the total shrinkage will increase, which will easily lead to shrinkage porosity, shrinkage cavity, coarse grain, porosity and other defects. Therefore, to control the temperature of molten iron in a proper range is the premise to ensure the quality of pipe fittings. The temperature of molten iron shall be well controlled, and the temperature of each molten iron shall be measured after furnace and before casting. Ensure the temperature control of molten iron.

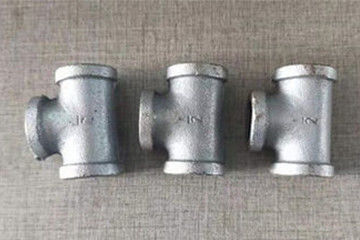

ANSI Reducing Tee Malleable Iron Pipe Fittings 1

Welding method

There are two ways to weld the tee of Mar Iron and Steel Co., Ltd. The first one is to use the electrode with the composition close to the base metal. The weld performance matches the base metal. The weld should have a high thermal strength. The tee weld of Mar Steel is not easy to be damaged in long-term use under high temperature.

The difficulty is that the post weld heat treatment is relatively strict, and the improper control of tempering temperature, holding time and heating and cooling speed will lead to the degradation of weld performance.The second is to use austenitic stainless steel electrode for welding.

Post weld heat treatment can be omitted.due to the different expansion coefficient between the three-way weld and the base metal of Mar Iron and Steel Co., Ltd., carbon diffusion and migration may occur during long-term high-temperature operation.It is easy to cause weld damage in the fusion zone.It is possible to adopt two welding schemes for the welding of large diameter thick wall Mar Steel tee. In order to ensure that the weld performance matches the base metal and has high thermal strength, the first scheme is recommended for better results.

Technical data sheet

ANSI Reducing Tee technical data sheet as below:

Nominal Diameter Outside Diameter Center to End
D1 D2
DN NPS Series A Series B Series A Series B C M
15x15x15 1/2x1/28 21.3 18.0 213.0 18.0 25.0 25.0
15x15x10 12x1/2x3/8 21.3 18.0 173.0 14.0 25.0 25.0
15x15x8 12x1/2x1/4 21.3 18.0 13.7 10.0 25.0 25.0
20x20x20 3/4x3/4x3/4 20.0 25.0 26.9 25.0 29.0 29.0
20x20x15 3/4x3/4x1/2 20.0 25.0 213.0 18.0 29.0 29.0
20x20x10 3/4x3/4x3/8 20.0 25.0 173.0 14.0 29.0 29.0
25x25x25 1X1X1 33.7 32.0 33.7 32.0 38.0 38.0
25x25x20 1x1x3/4 33.7 32.0 26.9 25.0 38.0 38.0
25x25x15 1x1x1/2 33.7 32.0 213.0 18.0 38.0 38.0
32x32*32 1.1/4X1.1/4X1.1/4 42.4 38.0 42.4 38.0 48.0 48.0
32x32x25 1.1/4X1.1/4X1 42.4 38.0 33.7 32.0 48.0 48.0
32x32x20 1.14x1.1/4x3/4 42.4 38.0 26.9 25.0 48.0 48.0
32x32x15 1.14x1.1/4x1/2 42.4 38.0 21.3 18.0 48.0 57.0
40x40x40 1.1/2x11/2x1.1/2 48.3 45.0 48.3 45.0 57.0 57.0
40x40x32 1.1/2x11/2x1.1/4 48.3 45.0 42.4 38.0 57.0 57.0
40x40x25 1.1/2x11/2x1 48.3 45.0 33.7 32.0 57.0 57.0
40x40x20 1.1/2x11/2x3/4 48.3 45.0 26.9 25.0 57.0 57.0
40x40x15 1.1/2x11/2x1/2 48.3 45.0 21.3 18.0 57.0 57.0
50x50x50 2x2x2 60.3 57.0 60.3 57.0 64.0 64.0
50x50*40 2x2x11/2 60.3 57.0 48.3 45.0 64.0 60.0
50x50x32 2x2x1.14 60.3 57.0 42.4 38.0 64.0 57.0
50x50x25 2x2x1 60.3 57.0 33.7 32.0 64.0 51.0
50x50x20 2x2x3/4 60.3 57.0 26.9 25.0 64.0 44.0
65x65x65 2.12x2/1/2x2.1/2 73.0 76.0 73.0 76.0 76.0 76.0
65x65x50 2.1/2x2/1/2x2 73.0 76.0 60.3 57.0 76.0 70.0
65x65x40 2.12x2/1/2x1.1/2 73.0 76.0 48.3 45.0 76.0 67.0


a. Plastic bubble bag package b.Wove bag package c.Pallet d. Customized.

Delivery time

Our Steel flat factory have high ability for production, the delivery time is 45days for small quantity, or if you are hurry for that, we can arrange and meet your shipping date.
