Galvanized Cross Black Malleable Cast Iron Pipe Fittings

Galvanized Cross Black Malleable Cast Iron Pipe Fittings
Galvanized Cross Black Malleable Cast Iron Pipe Fittings Galvanized Cross Black Malleable Cast Iron Pipe Fittings

Large Image :  Galvanized Cross Black Malleable Cast Iron Pipe Fittings

Product Details:
Place of Origin: China
Brand Name: Malleable Iron Cross
Certification: ISO9001
Model Number: LJ-PF094
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: 1USD-100USD
Packaging Details: Export standard packaging
Delivery Time: Depends on the quantity of goods
Payment Terms: L/C, T/T
Supply Ability: Annual output 50000 tons

Galvanized Cross Black Malleable Cast Iron Pipe Fittings

Description
Product Name:: Malleable Iron Cross Size:: Full-size
Standard:: GB / ANSI /JIS / DIN Model:: 20x15-100x80
Wall Thickness:: 2-5(mm) Advantage:: Corrosion Resistance
High Light:

Malleable Cast Iron Pipe Fittings

,

Black Malleable Iron Pipe Fittings

Description


Cross is a very important part of Malleable Iron pipe fittings. According to different characteristics, Malleable Iron cross can be divided into many different types.Straight cross, code 180. Malleable Iron is mainly used for cross connection of two pipes. It has four exports of the same caliber.Malleable Iron reducing cross, code 180r. The outlet diameters of the two opposite pipes are the same, but the outlet diameters of the crossed pipes are different.

Naming method: large caliber export is the first, and smaller caliber export is the second. For example, the two opposite outlets of the main pipe are 50, while the other two outlets are 25.Malleable Iron reducing cross is named as 50 * 25 reducing cross.Large cross at Malleable Iron side, code 180r. The diameter of the main pipe is different.

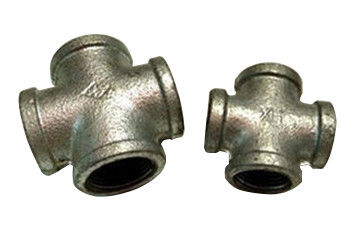

Galvanized Cross Black Malleable Cast Iron Pipe Fittings 0

Specification


Standard: GB / ANSI /JIS / DIN

Model:20x15-100x80

Wall thickness:2-5(mm

Technology


At present, in the production of Malleable Iron cross at home and abroad, most of them are modified by adding alloy containing a certain amount of modified elements into iron water.The operation process is similar to the spheroidizing treatment of nodular cast iron.The upper and lower limits of modified elements required by Malleable Iron Steel are very narrow and sensitive to the fluctuation of process factors, which is more difficult to control than spheroidizing treatment.

On the one hand, it is necessary to develop a suitable modified alloy, so that it has a larger range.On the other hand, measures are taken in the treatment process to make the process factors as stable as possible and the absorption rate of modified elements as high and uniform as possible.

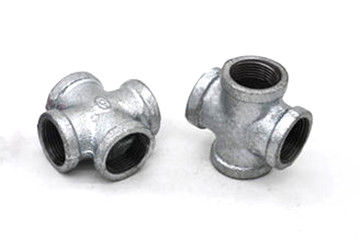

Galvanized Cross Black Malleable Cast Iron Pipe Fittings 1



Application


Malleable Iron Cross is suitable for rated working pressure of 1.6Mpa and working temperature of 200 ℃.Transport liquid, gas, such as water, oil, natural gas, gas, water vapor and other general pipeline connection.Malleable Iron Cross with nominal diameter of 10-100mm is pipeline connection, and its surface is painted, painted and hot galvanized.

Technical data sheet


Galvanized Cross Black Malleable Cast Iron Pipe Fittings technical data sheet as below:

Size Inch 3X11/4 4X3/4 4X1 4X11/4 -
mm 80X32 100X20 100X25 100X32 -
Dim/(mm) A1 68 68 71 75 107.5
B1 25.5 28.5 28.5 28.5 33
C1 13 14 14 14 15
A2 79 88 90 96 133.5
B2 17 13 15 17 25.5
C2 10 8 9 10 13

Package


a. Plastic bubble bag package b.Wove bag package c.Pallet d. Customized.

Delivery time


Our Steel flat factory have high ability for production, the delivery time is 30 days for small quantity, or if you are hurry for that, we can arrange and meet your shipping date.
