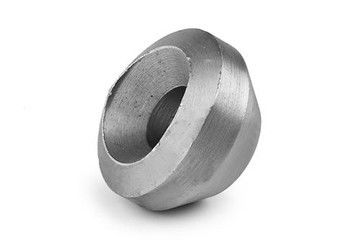

Malleable Iron Olet Polypropylene Pipe Fittings

Malleable Iron Olet Polypropylene Pipe Fittings
Malleable Iron Olet Polypropylene Pipe Fittings

Large Image :  Malleable Iron Olet Polypropylene Pipe Fittings

Product Details:
Place of Origin: China
Brand Name: Malleable Iron Olet
Certification: ISO9001
Model Number: LJ-PF095
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: 1USD-100USD
Packaging Details: Export standard packaging
Delivery Time: Depends on the quantity of goods
Payment Terms: L/C, T/T
Supply Ability: Annual output 50000 tons

Malleable Iron Olet Polypropylene Pipe Fittings

Description
Product Name:: Malleable Iron Olet Size:: Full-size
Standard:: GB / ANSI /JIS / DIN Advantage:: High Pressure Resistance
Executive Standard:: MSS SP-97、GB/T19326 Application:: High Temperature, High Pressure
High Light:

Malleable Iron Olet

,

polypropylene tube fittings

Description


Malleable Iron Olet is also called saddle pipe fitting. It is mainly used for reinforcing pipe fittings of branch connection.Instead of reducing tee, reinforcing plate, strengthening pipe section and other branch connection types.The utility model has the advantages of safety, reliability, cost reduction, simple construction, improvement of medium flow passage, series standardization, convenient design and selection, etc.

Especially in high pressure, high temperature, large diameter, thick wall pipes, it is widely used, replacing the traditional branch connection method.The main body of Olet of Malleable Iron is made of high-quality forgings, the material is the same as the pipe material, and the Olet seat and main pipe are welded.There are three types of connection with Olet or other pipes, instruments and valves: butt welding connection, socket welding connection and threaded connection.

Malleable Iron Olet Polypropylene Pipe Fittings 0

Specification


Standard: GB / ANSI /JIS / DIN

Advantage:high pressure resistance

Executive standard:MSS SP-97,GB/T19326

Characteristic


Malleable Iron Olet set is a ductile casting product. If it is knocked by external force, if there is dent on its surface or a small amount of deformation does not crack, its material performance is acceptable.Looking at the length of the internal thread of the Olet of Malleable Iron, the length of the thread of the general fake and inferior products is always very short.

According to the degree of galvanizing, galvanizing specified in GB / t3287-2000 refers to hot galvanizing with good corrosion resistance.The technological process is to hot galvanize the thread before processing, and then process the thread, so there is no zinc layer on the thread surface.

Malleable Iron Olet Polypropylene Pipe Fittings 1

Technical data sheet


Malleable Iron Olet Polypropylene Pipe Fittings technical data sheet as below:



Nominal Diameter Nominal Diameter of Suited Main Pipe L E
mm in mm in STD XS xxs STD XS XXS
6 1/8 20 3/4 15.9 - - 15.9 - -
8 1/4 20 3/4 15.9 - - 15.9 - -
10 3/8 25 1 19.1 - - 19.1 - -
15 1/2 32 1.1/4 19.1 19.1 28.6 23.8 23.8 14.3
20 3/4 40 1.1/2 22.2 22.2 31.8 302 30.2 19.1
25 1 40 1.1/2 27.0 27.0 38.1 36.5 36.5 25.4
32 1.1/4 65 2.1/2 31.8 31.8 44.5 44.5 44.5 33.3
40 1.1/2 65 2.1/2 33.3 33.3 50.8 50.8 50.8 38.1
50 2 80 3 38.1 38.1 58.6 65.1 65.1 42.9
60 2.1/2 100 4 41.3 41.3 61.9 762 76.2 54.0
80 3 125 5 44.5 44.5 73.0 93.7 93.7 77.0
90 3.1/2 150 6 47.0 47.0 - 10L6 101.6 -
100 4 150 6 50.8 50.8 84.1 120.7 120.7 98.4
125 5 200 8 57.2 57.2 93.7 141.3 141.3 122.2
150 6 200 8 60.3 77.8 104.8 169.9 169.9 146.1
200 8 250 10 69.9 98.4 - 220.7 220.7 -
250 10 300 12 77.8 93.7 - 274.6 265.1 -
300 12 350 14 85.7 103.2 - 325.4 317.5 -
350 14 400 16 88.9 100.0 - 357.2 350.9 -

Package


a. Plastic bubble bag package b.Wove bag package c.Pallet d. Customized.

Delivery time


Our Steel flat factory have high ability for production, the delivery time is 45days for small quantity, or if you are hurry for that, we can arrange and meet your shipping date.
