Forged Stainless Steel Pipe Weldolet Fittings

Forged Stainless Steel Pipe Weldolet Fittings
Forged Stainless Steel Pipe Weldolet Fittings Forged Stainless Steel Pipe Weldolet Fittings

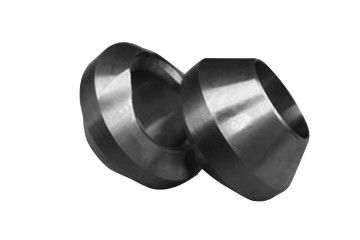

Large Image :  Forged Stainless Steel Pipe Weldolet Fittings

Product Details:
Place of Origin: China
Brand Name: Stainless steel socket welding Olet
Certification: ISO9001
Model Number: LJ-PF034
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: 1USD-100USD
Packaging Details: Export standard packaging
Delivery Time: Depends on the quantity of goods
Payment Terms: L/C, T/T
Supply Ability: Annual output 50000 tons

Forged Stainless Steel Pipe Weldolet Fittings

Description
Product Name:: Stainless Steel Socket Welding Olet Standard:: GB / ANSI /JIS / DIN
Material:: 304、304L、316、316L Feature:: High Temperature, Large Diameter
Surface Treatment: Galvanizing Color: Silver
High Light:

Pipe Weldolet Fittings

,

Forged Welding Olets

Description


 Olet is also called Olet seat, saddle and saddle type pipe joint. It is mainly used for reinforcing pipe fittings of branch connection instead of branch connection types such as reducing tee, reinforcing plate and reinforcing pipe section.The Olet has the outstanding advantages of safety, reliability, cost reduction, simple construction, improvement of medium flow channel, series standardization, and convenient design and selection.specially in the high pressure, high temperature, large diameter and thick wall pipelines, which is increasingly used to replace the traditional Olet connection method.

The Olet, including the Olet body, is provided with through-hole on the body. One end of the Olet is the connection end of the main pipe, the other end is the connection end of the Olet. The Olet body is located in the circumferential direction of the connection end of the main pipe, and is provided with welding groove, which is used for welding and fixing with the main pipe.

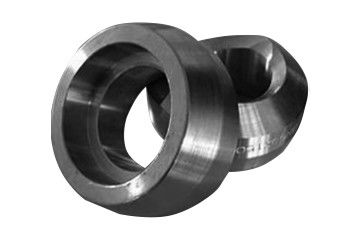

Forged Stainless Steel Pipe Weldolet Fittings 0

Specification


1.The technological analysis and the determination of technological scheme of Olet are based on the geometric shape and technological characteristics of Olet.

2. The design of die structure, especially the design of die working parts, depends on the shape of socket pipe.

3. The inner wall of the socket welding Olet is easy to be putrefaction.

4. It is necessary to conduct good inspection and treatment to ensure the good application characteristics and value of the socket pipe, and to apply and promote according to the accurate methods and methods.

5. The Olet with putrefaction usually shows thinning of the pipe wall and local pits and pockmarks.

6. When the socket welding Olet is putrefactive, it should be disposed and maintained according to certain methods and ways to ensure that it can be applied according to certain principles.

Forged Stainless Steel Pipe Weldolet Fittings 1

Advantage and Application


1,  Stainless steel Olet is a kind of Olet, which is widely used in foreign countries in recent years.

2,  It is used for Olet connection, instead of the traditional branch connection types such as reducing tee, reinforcing plate and strengthening pipe section.

3,  Stainless steel Olet has many outstanding advantages, such as safety, reliability, cost reduction, simple construction, improvement of medium flow channel, series standardization, convenient design and selection, etc.

4,  Especially in high pressure, high temperature, large diameter and thick wall pipes, it is widely used, replacing the traditional Olet connection method.

5,  The main body of stainless steel Olet is made of excellent forgings, with the same material as the pipe, including carbon steel, alloy steel, stainless steel, etc. Olet and main pipe are welded.

6,  Stainless steel Olet and Olet or other pipes (such as short pipe, plug, etc.), instruments and valves are connected by butt welding, socket welding, thread and other types.

7,  Stainless steel Olet is widely used in petroleum, chemical industry, natural gas, electric power, metallurgy, heating, gas, shipbuilding, chemical fertilizer and other industries.

Technical data sheet


Forged Stainless Steel Pipe Weldolet Fittings data sheet

Nominal Diameter of Brane Nominal Diameter of Suite H L E
DN NPS mm in 3000LB 6000LB 3000LB 6000LB
6 1/8 20 3/4 19.1 - 15.9 -
8 1/4 20 3/4 19.1 - 15.9 -
10 3/8 25 1 20.6 - 19.1 -
15 1/2 32 1.1/4 25.4 31.8 23.8 19.1
20 3/4 40 1.1/2 27.0 36.5 30.2 25.4
25 1 50 2 33.3 39.7 36.5 333
32 1.1/4 65 2.1/2 33.3 41.3 44.5 38.1
40 1.1/2 65 2.1/2 34.9 42.9 50.8 492
50 2 80 3 38.1 52.4 65.1 69.9
60 2.1/2 100 4 39.7 - 76.2 -
80 3 125 5 44.5 - 93.7 -
100 4 150 6 47.6 - 120.7 -

Package


a. Plastic bubble bag package b.Wove bag package c.Pallet d. Customized

Delivery time


Our Forged Stainless Steel Pipe Weldolet Fittings factory have high ability for production, the delivery time is 45days for small quantity, or if you are hurry for that, we can arrange and meet your shipping date.
