Product Details:
|
| Product Name:: | Malleable Iron Olet | Size:: | Full-size |
|---|---|---|---|
| Standard:: | GB / ANSI /JIS / DIN | Advantage：: | High Pressure Resistance |
| Executive Standard：: | MSS SP-97、GB/T19326 | Application：: | High Temperature, High Pressure |
| High Light: | ductile Malleable Iron Olet,Malleable Pipe Fittings |
||

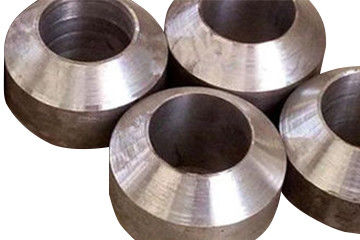

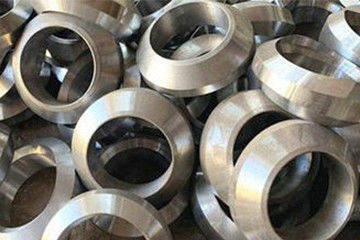

Malleable Iron Olet is also called saddle pipe fitting. It is mainly used for reinforcing pipe fittings of branch connection.Instead of reducing tee, reinforcing plate, strengthening pipe section and other branch connection types.The utility model has the advantages of safety, reliability, cost reduction, simple construction, improvement of medium flow passage, series standardization, convenient design and selection, etc.
Especially in high pressure, high temperature, large diameter, thick wall pipes, it is widely used, replacing the traditional branch connection method.The main body of Olet of Malleable Iron is made of high-quality forgings, the material is the same as the pipe material, and the Olet seat and main pipe are welded.There are three types of connection with Olet or other pipes, instruments and valves: butt welding connection, socket welding connection and threaded connection.
Standard: GB / ANSI /JIS / DIN
Executive standard:MSS SP-97,GB/T19326
Application:High temperature, high pressure
Malleable Iron Olet set is a ductile casting product. If it is knocked by external force, if there is dent on its surface or a small amount of deformation does not crack, its material performance is acceptable.Looking at the length of the internal thread of the Olet of Malleable Iron, the length of the thread of the general fake and inferior products is always very short.
According to the degree of galvanizing, galvanizing specified in GB / t3287-2000 refers to hot galvanizing with good corrosion resistance.The technological process is to hot galvanize the thread before processing, and then process the thread, so there is no zinc layer on the thread surface.After processing the thread, the fake Olet of Malleable Iron Steel will be electroplated with zinc or other coating treatment, and its thread surface has zinc layer.
Polypropylene Pipe Ductile Casting Malleable Iron Olet technical data sheet as below:
| Nominal Diameter | Nominal Diameter of Suited Main Pipe | L | E | ||||||
| mm | in | mm | in | STD | XS | xxs | STD | XS | XXS |
| 6 | 1/8 | 20 | 3/4 | 15.9 | - | - | 15.9 | - | - |
| 8 | 1/4 | 20 | 3/4 | 15.9 | - | - | 15.9 | - | - |
| 10 | 3/8 | 25 | 1 | 19.1 | - | - | 19.1 | - | - |
| 15 | 1/2 | 32 | 1.1/4 | 19.1 | 19.1 | 28.6 | 23.8 | 23.8 | 14.3 |
| 20 | 3/4 | 40 | 1.1/2 | 22.2 | 22.2 | 31.8 | 302 | 30.2 | 19.1 |
| 25 | 1 | 40 | 1.1/2 | 27.0 | 27.0 | 38.1 | 36.5 | 36.5 | 25.4 |
| 32 | 1.1/4 | 65 | 2.1/2 | 31.8 | 31.8 | 44.5 | 44.5 | 44.5 | 33.3 |
| 40 | 1.1/2 | 65 | 2.1/2 | 33.3 | 33.3 | 50.8 | 50.8 | 50.8 | 38.1 |
| 50 | 2 | 80 | 3 | 38.1 | 38.1 | 58.6 | 65.1 | 65.1 | 42.9 |
| 60 | 2.1/2 | 100 | 4 | 41.3 | 41.3 | 61.9 | 762 | 76.2 | 54.0 |
| 80 | 3 | 125 | 5 | 44.5 | 44.5 | 73.0 | 93.7 | 93.7 | 77.0 |
| 90 | 3.1/2 | 150 | 6 | 47.0 | 47.0 | - | 10L6 | 101.6 | - |
| 100 | 4 | 150 | 6 | 50.8 | 50.8 | 84.1 | 120.7 | 120.7 | 98.4 |
| 125 | 5 | 200 | 8 | 57.2 | 57.2 | 93.7 | 141.3 | 141.3 | 122.2 |
| 150 | 6 | 200 | 8 | 60.3 | 77.8 | 104.8 | 169.9 | 169.9 | 146.1 |
| 200 | 8 | 250 | 10 | 69.9 | 98.4 | - | 220.7 | 220.7 | - |
| 250 | 10 | 300 | 12 | 77.8 | 93.7 | - | 274.6 | 265.1 | - |
| 300 | 12 | 350 | 14 | 85.7 | 103.2 | - | 325.4 | 317.5 | - |
| 350 | 14 | 400 | 16 | 88.9 | 100.0 | - | 357.2 | 350.9 | - |
a. Plastic bubble bag package b.Wove bag package c.Pallet d. Customized.
Our Steel flat factory have high ability for production, the delivery time is 25 days for small quantity, or if you are hurry for that, we can arrange and meet your shipping date.
