Product Details:
|
| Material: | SS304 SS316L | Connection: | Welding |
|---|---|---|---|
| Standard: | DIN,ANSI,ASTM,GB | Size: | 1/8"~2",1/2' ~ 6' |
| Application: | Oil,Petroleum,Connect Pipes | Packing: | Carton /Wooden Box /Poly Wood Box |
| High Light: | ANSI B16.5 Stainless Steel Flanges,F51 Stainless Steel Flanges,A182 F51 WN Flange |
||

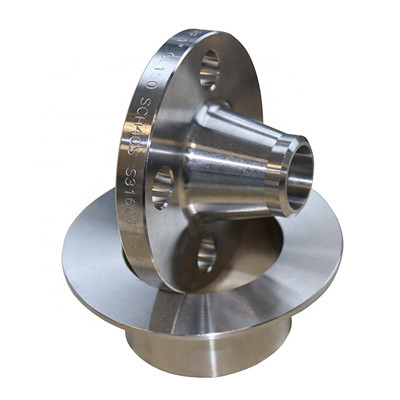

Stainless Steel WN flange has different weld forms from flat welding flange. The weld between neck butt welding flange and pipe is circumferential weld, while flat welding flange is fillet weld. The neck butt welding flange is mostly made of forged steel, while the flat welding flange is made of ordinary steel plate.
Size:DN15-2000
Standard:DIN, ASME, ASME B16.5
Material:Stainless Steel 304/316/304L/316L
Pressure:Class150/300/600/9001500/2500
ASTM A182 F51 F53 WN ANSI B16.5 Stainless Steel WN flange technical data sheet as below:
| Nominal diameter | size(mm) | ||||
| diameter D | D1 | Bolt hole diameter | D2 | f | |
| 10 | 90 | 60 | 14 | 41 | 2 |
| 15 | 95 | 65 | 14 | 46 | 2 |
| 20 | 105 | 75 | 16 | 56 | 2 |
| 25 | 115 | 85 | 16 | 65 | 3 |
| 32 | 140 | 100 | 18 | 76 | 3 |
| 40 | 150 | 110 | 18 | 84 | 3 |
| 50 | 165 | 125 | 20 | 99 | 3 |
| 65 | 185 | 145 | 20 | 118 | 3 |
| 80 | 200 | 160 | 22 | 132 | 3 |
| 100 | 220 | 180 | 24 | 156 | 3 |
| 125 | 250 | 210 | 26 | 184 | 3 |
Stainless Steel WN flange and flat welding flange cannot be replaced casually. From the manufacturing point of view, the large inner diameter of flat welding flange means small weight and low cost. The neck butt welding flange with diameter greater than 250mm shall be tested, and the flange of so does not need to be tested.
Stainless Steel WN flange is suitable for petroleum, chemical industry, plumbing, fire protection, electric power, aerospace, shipbuilding and other industries.
